Texas Instruments SN74LVC2G17QDCKRQ1

Part No.:: SN74LVC2G17QDCKRQ1

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: SN74LVC2G17QDCKRQ1.pdf

Description:: IC BUF NON-INVERT 5.5V SC70-6

In Stock:: 3119

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G17QDCKRQ1 Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q100, 74LVC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
1
InputType:
Schmitt Trigger
OutputType:
Push-Pull
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC2G17QDCKRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G17QDCKRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G17QDCKRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G17QDCKRQ1 information

Views：

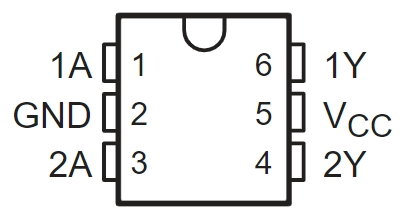

SN74LVC2G17QDCKRQ1 Typical application Circuitry

SN74LVC2G17QDCKRQ1

The SN74LVC2G17QDCKRQ1 is a dual Schmitt-trigger buffer chip from the LVC (Low-Voltage CMOS) family. It is designed to provide signal conditioning with Schmitt-trigger inputs, which enhance noise immunity and ensure cleaner signal edges in digital circuits.

Application Scenarios and Parameter Characteristics

1. Debouncing in Digital Input Circuits:

- The SN74LVC2G17QDCKRQ1 is widely used for debouncing switches and buttons in digital input circuits, such as in control panels or user interfaces.

- Key features include a wide operating voltage range (1.65V to 5.5V), Schmitt-trigger action that provides hysteresis for noise immunity, and low power consumption.

2. Signal Conditioning in Microcontroller Interfaces:

- It is also suitable for signal conditioning in microcontroller interfaces, ensuring clean signal edges for reliable digital signal processing.

- Important characteristics are fast propagation delay and capability to drive capacitive loads.

Detailed Circuit Connection - Debouncing a Digital Input

Here's a detailed guide for using the SN74LVC2G17QDCKRQ1 for debouncing a digital input:

1. Power Supply Connections:

- VCC Pin: Connect the VCC pin of the SN74LVC2G17QDCKRQ1 to a suitable power source, preferably within the 1.65V to 5.5V range.

- Ground Connection: Link the GND pin to the system ground.

2. Input Connection:

- Schmitt-Trigger Input Pins (A1, A2): Connect the input pins (A1, A2) to the digital signals from a mechanical switch or button.

- The Schmitt-trigger action at these inputs helps to eliminate noise and provide a clean digital signal.

3. Output Connection:

- Buffered Output Pins (Y1, Y2): Connect the output pins (Y1, Y2) to the digital input of a microcontroller or another digital circuit.

- These outputs provide a clean, debounced digital signal.

4. Decoupling Capacitor:

- Capacitor for Noise Filtering: Place a decoupling capacitor (typically 0.1 µF) near the VCC pin to minimize power supply noise.

Considerations for Circuit Design

1. Stable Power Supply: Verify that the SN74LVC2G17QDCKRQ1 power supply is both stable and falls within the designated voltage range.

2. Noise Immunity: Leverage the Schmitt-trigger inputs to enhance noise immunity, especially in environments with electrical noise.

3. Input Signal Characteristics: Ensure the input signals (from switches or buttons) are compatible with the voltage levels and current requirements of the SN74LVC2G17QDCKRQ1.

4. Thermal Management: Although the SN74LVC2G17QDCKRQ1 typically operates with low power consumption, consider thermal aspects in high-frequency or high-load applications.

5. Decoupling for Noise Reduction: Use decoupling capacitors close to the IC to mitigate power supply fluctuations and electromagnetic interference.

In conclusion, the SN74LVC2G17QDCKRQ1 is highly suitable for debouncing digital inputs and signal conditioning, providing clean and stable digital signals for further processing. When designing circuits with this IC, attention to power stability, noise immunity, and input signal characteristics is crucial to achieve optimal performance.
