Texas Instruments SN74LVC2G14DBVRG4

Part No.:: SN74LVC2G14DBVRG4

Manufacturer:: Texas Instruments

Package:: SOT-23-6

Datasheet:: SN74LVC2G14DBVRG4.pdf

Description:: IC INVERTER 2CH 2-INP SOT23-6

In Stock:: 3650

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G14DBVRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
2
NumberofInputs:
2
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.3V ~ 1.4V
LogicLevel-High:
1.4V ~ 3.7V
MaxPropagationDelay@VMaxCL:
4.3ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC2G14DBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G14DBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G14DBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G14DBVRG4 information

Views：

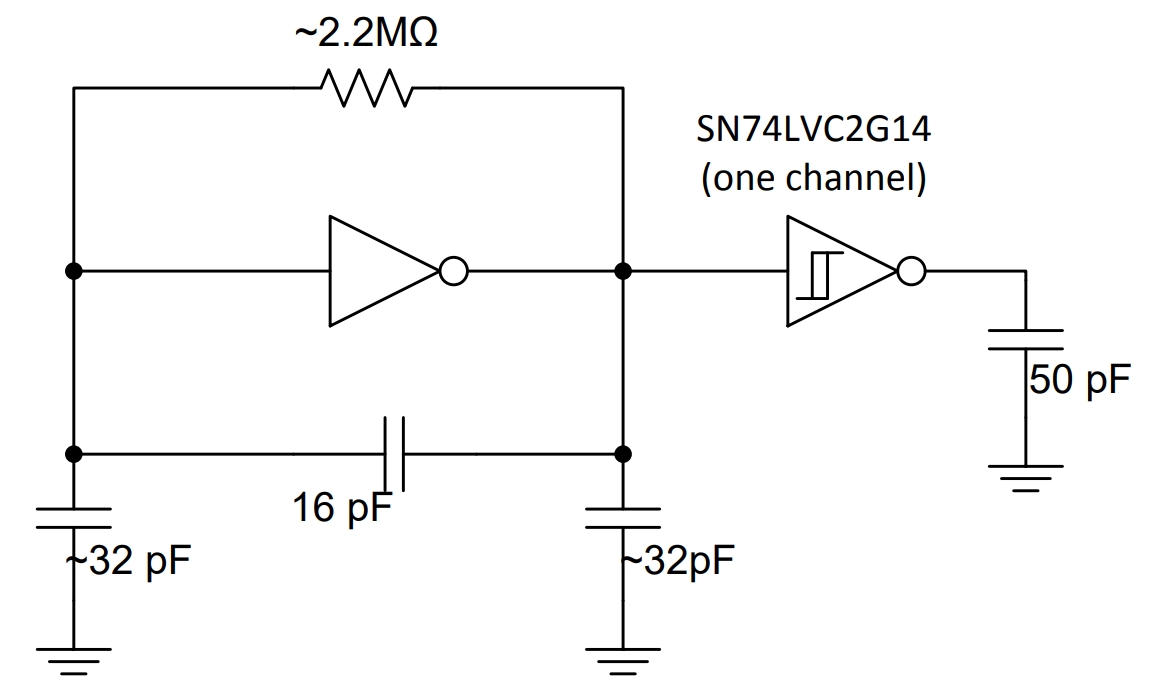

SN74LVC2G14DBVRG4 Typical application Circuitry

SN74LVC2G14DBVRG4

The SN74LVC2G14DBVRG4 is a dual Schmitt-trigger inverter chip, part of the Texas Instruments SN74LVC series.

Functionality of SN74LVC2G14DBVRG4

The SN74LVC2G14DBVRG4 operates as a dual inverter with Schmitt-trigger inputs. This design enables it to provide stable output transitions even with slow or noisy input signals, making it ideal for signal conditioning.

Application Scenarios

It is typically used in applications that require clean signal edges, like digital signal processing, pulse shaping, and noise filtering in control systems.

Key Parameter Features

- Voltage Compatibility: Can operate with a supply voltage range from 1.65V to 5.5V, fitting a broad range of logic levels.

- Schmitt-Trigger Inputs: Ensures noise immunity and stable output for noisy or slow-changing input signals.

- High-Speed Capability: Suitable for applications demanding rapid signal processing.

- Low Power Consumption: A key feature for battery-operated and low-power devices.

Circuit Connection Example: Pulse Shaping in a Digital Circuit

We'll explore a circuit design where SN74LVC2G14DBVRG4 is used for pulse shaping in a digital circuit.

1. Power Supply Connection:

- Connecting VCC: Link the VCC pin (pin 6) to a 3.3V supply.

- Grounding the IC: Connect the GND pin (pin 3) to the circuit ground.

2. Input Signal Attachment:

- Feeding the Input Signal: Attach an irregular digital signal, such as a square wave with noise, to input A (pin 1).

3. Output Configuration:

- Receiving Clean Output: Connect the output Y (pin 2) to the next stage in the circuit, such as a microcontroller or logic gate.

4. Signal Integrity Measures:

- Ensuring Clean Power: Implement a decoupling capacitor near the VCC pin to minimize power supply noise.

Design Considerations

When designing circuits with the SN74LVC2G14DBVRG4, it's crucial to consider the characteristics of the input signal, the quality of the power supply, and the requirements of the subsequent circuit stages for the inverter output.

In conclusion, the SN74LVC2G14DBVRG4 is adept at providing clean and stable signal inversion in environments with noisy or slow-changing inputs. Its compatibility with various voltage levels, Schmitt-trigger input design for noise immunity, and efficient power consumption make it a versatile choice in digital signal processing and control systems. Proper consideration of signal and power integrity, along with the compatibility of connected circuitry, is essential for effective use of this chip in practical designs.
