Texas Instruments SN74LVC2G125DCUR

Part No.:: SN74LVC2G125DCUR

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: SN74LVC2G125DCUR.pdf

Description:: IC BUFFER NON-INVERT 5.5V 8VSSOP

In Stock:: 17023

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G125DCUR Specifications

Package/Case:
8-VFSOP (0.091, 2.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
1
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC2G125DCUR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G125DCUR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G125DCUR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G125DCUR information

Views：

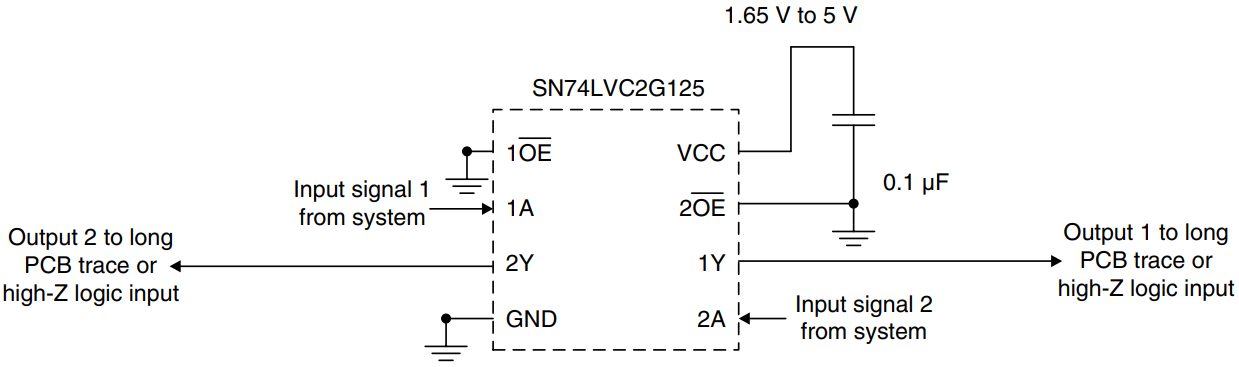

SN74LVC2G125DCUR Typical application Circuitry

SN74LVC2G125DCUR

The SN74LVC2G125DCUR is an integrated circuit from the SN74LVC series, specifically designed as a dual bus buffer gate with 3-state outputs. This device is ideal for driving loads with high capacitance or for use in bus-oriented systems where the ability to disable the output allows multiple devices to share a common data line.

1. Series and Functional Features: Within the SN74LVC series, the SN74LVC2G125DCUR is notable for its low-voltage operation and high-speed performance. The series is characterized by devices capable of functioning with low power consumption while maintaining high-speed data processing. The SN74LVC2G125DCUR, with its dual bus buffer design, provides an effective solution for managing signal flow and controlling output states in digital circuits.

2. Pin Configuration and Connectivity Outline: The SN74LVC2G125DCUR comes in an 8-pin package. It features two input pins (A1, A2), two output enable pins (OE1, OE2), two output pins (Y1, Y2), one power supply pin (VCC), and one ground pin (GND). The input pins (A1, A2) receive the signals to be buffered, and the output pins (Y1, Y2) convey the buffered signals. The outputs are either enabled or disabled via the output enable pins (OE1, OE2). The GND pin is linked to ground, and the VCC pin is connected to the positive power source.

3. Implementation in Electronic Systems: Integrating the SN74LVC2G125DCUR into electronic systems involves correctly wiring the inputs and outputs to their respective signals and control lines. The OE pins play a crucial role, as they determine whether the outputs are in a high-impedance state or actively driving the buffered signal. This feature allows for the outputs to be effectively 'disconnected' when not in use or when multiple devices are connected to a shared line.

4. Applications in Digital Circuitry: The SN74LVC2G125DCUR is commonly used in digital applications that require buffer gates, such as in data buses, address lines, and communication interfaces. Its ability to control the output states makes it suitable for systems where multiple devices need to share a common communication line without interference.

5. Circuit Design Considerations: When designing circuits with the SN74LVC2G125DCUR, special attention should be given to the layout around the OE pins, ensuring that these control lines are accurately wired for desired operational control. The use of decoupling capacitors near the VCC pin is recommended to provide a stable power supply.

6. Precautions in Handling and Use: The SN74LVC2G125DCUR, like other semiconductor devices, is sensitive to electrostatic discharge (ESD). Handling and installation should involve ESD-safe practices to avoid damaging the device.

In summary, the SN74LVC2G125DCUR, a component of the SN74LVC series, is a dual bus buffer gate with 3-state outputs, particularly suitable for digital systems requiring controlled output states for shared data lines. Its configuration facilitates effective signal management in complex digital environments, with careful consideration to output enable control, power stability, and circuit design being crucial for successful integration into digital applications.
