Texas Instruments SN74LVC2G08DCURG4

Part No.:: SN74LVC2G08DCURG4

Manufacturer:: Texas Instruments

Package:: 8-VSSOP

Datasheet:: SN74LVC2G08DCURG4.pdf

Description:: IC GATE AND 2CH 2-INP 8VSSOP

In Stock:: 2439

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G08DCURG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
AND Gate
NumberofCircuits:
2
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.7V ~ 0.8V
LogicLevel-High:
1.7V ~ 2V
MaxPropagationDelay@VMaxCL:
3.8ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC2G08DCURG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G08DCURG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G08DCURG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G08DCURG4 information

Views：

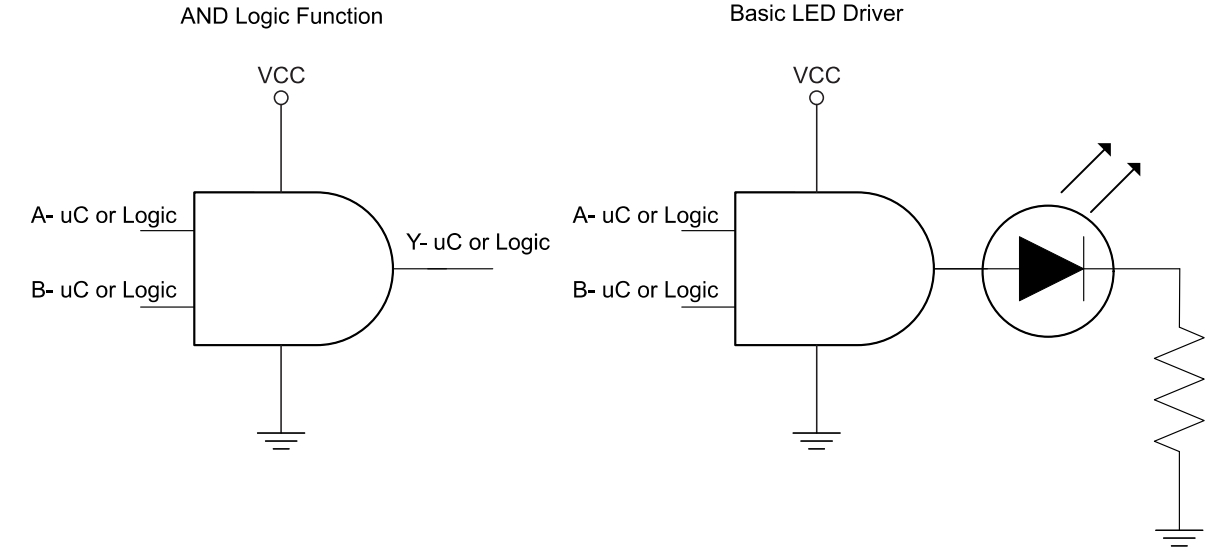

SN74LVC2G08DCURG4 Typical application Circuitry

SN74LVC2G08DCURG4

The SN74LVC2G08DCURG4 is an integrated circuit specifically designed to function as a dual 2-input AND gate. It's part of Texas Instruments' SN74LVC series, which includes a variety of logic gates suited for multiple applications.

Functionality of SN74LVC2G08DCURG4

The SN74LVC2G08DCURG4 acts as a logic gate that outputs a high signal only when both of its inputs are high. This characteristic is crucial in digital circuits where logical AND operations are required.

Application Scenarios

It is commonly used in digital computing, signal processing, control systems, and anywhere logical AND functions are necessary.

Key Parameter Features

- Operating Voltage Range: Suitable for 1.65V to 5.5V, making it versatile for different logic systems.

- High-Speed Capabilities: Efficient for applications requiring quick signal processing.

- Low Power Consumption: Excellent for power-constrained devices.

- Compact Form Factor: Its compact design is useful in areas with limited space.

Example of a Circuit Connection: Gate Logic in Security Systems

Think of a security system that requires the fulfillment of two requirements in order to sound an alarm.

1. Power Supply Arrangement:

- VCC Connection: Link VCC (pin 8) to a stable 3.3V supply.

- Grounding Method: Connect GND (pin 4) to the circuit's ground.

2. Input Signal Integration:

- First Sensor Input: Connect the output from the first sensor to A1 (pin 1).

- Second Sensor Input: Attach the output from the second sensor to B1 (pin 2).

3. Output to Alarm System:

- Triggering the Alarm: Link the output Y1 (pin 3) to the alarm system's trigger input.

4. Signal Level Matching:

- Ensuring Compatibility: Ensure that the sensor outputs are within the operating voltage range of the SN74LVC2G08DCURG4 for accurate logic operation.

Design Considerations

When incorporating the SN74LVC2G08DCURG4 in a circuit, pay attention to the voltage levels of inputs, power supply stability, output load compatibility, and noise minimization for reliable performance.

In conclusion, the SN74LVC2G08DCURG4, with its dual 2-input AND gate configuration, is highly effective for applications requiring logical AND operations. Its flexibility in voltage range, efficiency in power consumption, and high-speed operation make it a valuable component in various electronic systems. Adequate attention to the compatibility of input signals, stable power supply, and careful layout planning are essential for optimal utilization of this logic gate in practical circuit designs.
