What is the Additional Feature ?

Name: SN74LVC2G08DCURE4
Brand: Texas Instruments
SKU: SN74LVC2G08DCURE4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC2G08DCURE4

Part No.:: SN74LVC2G08DCURE4

Manufacturer:: Texas Instruments

Package:: 8-VSSOP

Datasheet:: SN74LVC2G08DCURE4.pdf

Description:: IC GATE AND 2CH 2-INP 8VSSOP

In Stock:: 2903

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G08DCURE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
AND Gate
NumberofCircuits:
2
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.7V ~ 0.8V
LogicLevel-High:
1.7V ~ 2V
MaxPropagationDelay@VMaxCL:
3.8ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC2G08DCURE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G08DCURE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G08DCURE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G08DCURE4 information

Views：

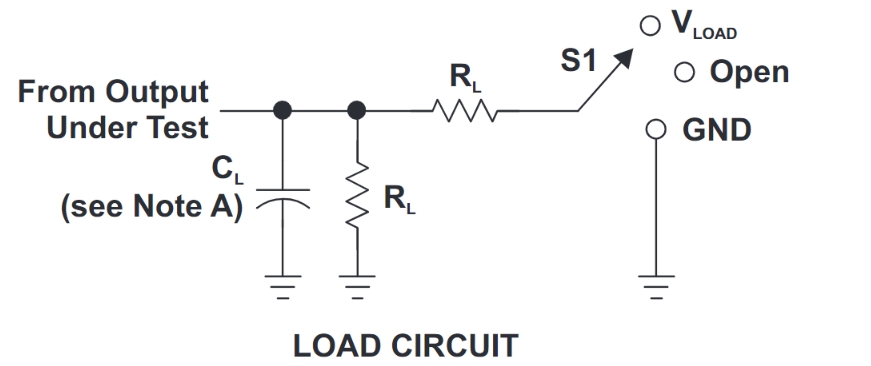

SN74LVC2G08DCURE4 Typical application Circuitry

SN74LVC2G08DCURE4

The SN74LVC2G08DCURE4 is an integrated circuit that functions as a dual 2-input positive-AND gate. It is a logic gate from Texas Instruments' SN74LVC series, which is well-known for its products.

This overview will focus on its functionality, application scenarios, key parameters, and a detailed example of a specific circuit application.

Functionality of SN74LVC2G08DCURE4

The SN74LVC2G08DCURE4 operates as a logic gate that performs the AND function. It outputs a high signal only when both its inputs are high, making it essential in digital logic circuits where logical conjunction is needed.

Application Scenarios

This chip is widely used in digital circuits requiring logical operations, such as computational logic, control systems, and data processing units.

Key Parameter Features

- Voltage Range: It operates in a voltage range of 1.65V to 5.5V, accommodating various logic level systems.

- Low Power Consumption: Because it is designed for energy-efficient operation, it is suitable for battery-powered devices.

- High-Speed Operation: Capable of fast signal processing, beneficial in high-speed computing applications.

- Compact Size: Its small footprint allows for use in space-constrained applications.

Circuit Connection Example: Control System Logic

Let's explore using the SN74LVC2G08DCURE4 in a control system where two conditions must be met to activate a load.

1. Power Supply Configuration:

- VCC Connection: Attach VCC (pin 8) to a 3.3V power supply.

- Grounding: Connect GND (pin 4) to the system ground.

2. Input Signal Setup:

- First Condition Signal: Link the first condition output to input A1 (pin 1).

- Second Condition Signal: Attach the second condition output to input B1 (pin 2).

3. Output Connection:

- Activating the Load: Connect the output Y1 (pin 3) to the control input of the load (e.g., relay or switch).

4. Input Signal Conditioning:

- Ensuring Proper Logic Levels: Verify that both input signals match the operating voltage range of the chip to ensure accurate logical operation.

Design Considerations

When designing circuits with the SN74LVC2G08DCURE4, consider the logic levels of input signals, power supply stability, and output load characteristics. It's also important to ensure minimal noise interference for reliable logical operations.

In summary, the SN74LVC2G08DCURE4 is a versatile dual 2-input AND gate, suitable for various digital logic applications where conjunction operations are necessary. Its wide voltage range, energy efficiency, and high-speed capabilities make it a valuable component in modern electronic systems. Careful consideration of input signal levels, power supply configuration, and load requirements is crucial for the effective implementation of this logic gate in practical designs.
