Texas Instruments SN74LVC2G04DCKRG4

Part No.:: SN74LVC2G04DCKRG4

Manufacturer:: Texas Instruments

Package:: SC-70-6

Datasheet:: SN74LVC2G04DCKRG4.pdf

Description:: IC INVERTER 2CH 2-INP SC70-6

In Stock:: 2357

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC2G04DCKRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
2
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.7V ~ 0.8V
LogicLevel-High:
1.7V ~ 2V
MaxPropagationDelay@VMaxCL:
3.2ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC2G04DCKRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC2G04DCKRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC2G04DCKRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC2G04DCKRG4 information

Views：

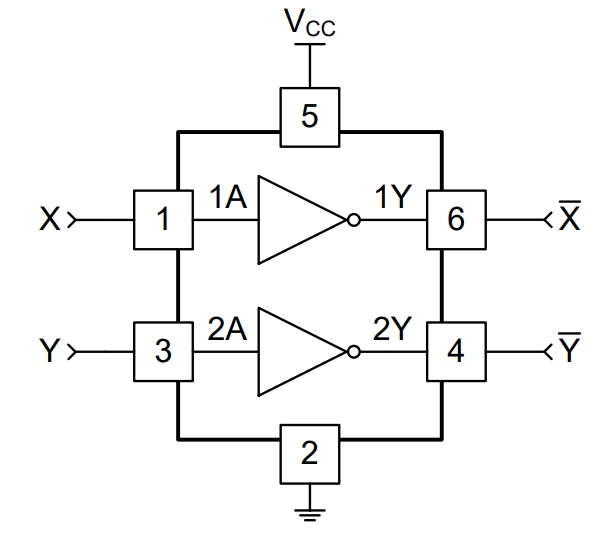

SN74LVC2G04DCKRG4 Typical application Circuitry

SN74LVC2G04DCKRG4

The SN74LVC2G04DCKRG4 is an integrated circuit known for its functionality as a dual inverter. It is a component of the 74LVC series, recognized for its low-voltage operation and high-speed data processing capabilities.

This article elaborates on its function, application scenarios, parameter characteristics, a specific circuit design example, and important design considerations:

1. Functional Role: The SN74LVC2G04DCKRG4 serves as a dual inverter, providing two independent inverting functions. It's typically used to invert digital logic levels.

2. Application Areas: This SN74LVC2G04DCKRG4 IC is particularly useful in digital logic systems, timing circuits, and signal processing applications where inversion of digital signals is required. It's frequently employed in systems like microcontroller interfaces and digital signal conditioning.

3. Parameter Traits: The device operates efficiently in a low-voltage range (1.65V to 5.5V), making it suitable for various digital applications. It's designed for high-speed operation and can accommodate various logic level inputs.

4. Circuit Connection – Digital Signal Conditioning:

- Inversion Use: In digital signal conditioning, the SN74LVC2G04DCKRG4 can be used to invert input signals for desired logic configurations.

- Pin Assignment: Connect the input signal to pins 1 (1A) and 5 (2A). The corresponding inverted outputs are obtained from pins 2 (1Y) and 6 (2Y).

- Power Supply Linkage: Connect VCC (pin 6) to a suitable power source within the range of 1.65V to 5.5V, and connect GND (pin 3) to the ground.

- Signal Integrity Assurance: Ensure the input signals are stable and free from excessive noise.

5. Design Factors:

- Voltage Level Compliance: Ensure input signal levels are within the operating voltage range of the IC.

- Noise Reduction Techniques: Implement design measures to minimize circuit noise and enhance signal clarity.

- Stable Power Supply Considerations: Utilize decoupling capacitors near the power pins to maintain a consistent voltage supply.

- PCB Design Optimization: Focus on minimizing trace lengths in the PCB design to reduce parasitic effects.

Incorporating the SN74LVC2G04DCKRG4 into electronic designs requires careful attention to these factors, ensuring optimal functionality. Its ability to perform efficient signal inversion with low power consumption and high-speed operation makes it a valuable component in diverse digital and signal processing applications.
