Texas Instruments SN74LVC244APWRG4

Part No.:: SN74LVC244APWRG4

Manufacturer:: Texas Instruments

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74LVC244APWRG4.pdf

Description:: IC BUF NON-INVERT 3.6V 20TSSOP

In Stock:: 3550

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC244APWRG4 Specifications

Package/Case:
20-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
4
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
24mA, 24mA
Voltage-Supply:
1.65V ~ 3.6V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC244APWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC244APWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC244APWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC244APWRG4 information

Views：

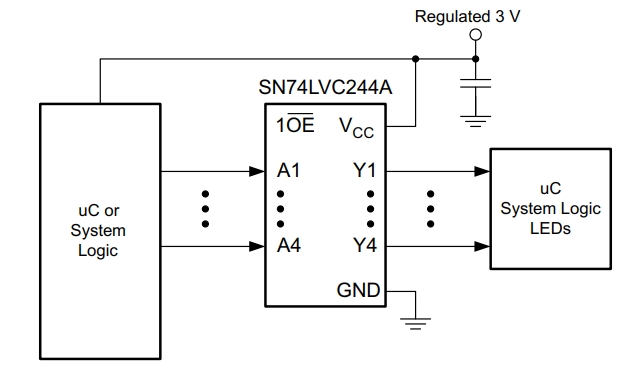

SN74LVC244APWRG4 Typical application Circuitry

SN74LVC244APWRG4

An octal buffer/line driver is the type of integrated circuit that goes by the name SN74LVC244APWRG4. It's part of the broader 74LVC family, which is known for its low-voltage operation and compatibility with various logic families.

1. Functionality Overview: The SN74LVC244APWRG4 functions primarily as an octal buffer/line driver, making it suitable for interfacing and signal amplification tasks. It's designed to ensure signal integrity over long distances or noisy environments.

2. Typical Applications: This chip is commonly used in digital communication systems, signal buffering in data buses, and interfacing microprocessors with peripherals. A notable application is in high-speed digital data transfer systems, where signal integrity is crucial.

3. Characteristic Parameters: The chip operates at a low voltage, typically around 3.3V, making it energy-efficient. It features high-speed data transmission capabilities and is designed to be compatible with 5V systems, offering versatility in mixed-voltage environments.

4. Example Application – Digital Communication Interface:

- Interface Design: In a digital communication system, the SN74LVC244APWRG4 can be employed to interface a microcontroller with a communication bus.

- Pin Assignment: Connect data pins 2, 4, 6, 8, 18, 16, 14, and 12 (1A-1Y to 8A-8Y) of the SN74LVC244APWRG4 to the microcontroller's data bus.

- Control Lines: The control pins, 1OE and 2OE (pins 1 and 19), should be wired to the microcontroller for output enable control.

- Power Connections: System ground should be connected to pin 10, and VCC (pin 20) should be linked to a 3.3V power source.

- Bus Stability: In order to preserve signal integrity, short, direct trace connections must be implemented.

5. Design Points to Remember:

- Voltage Compatibility: Verify that the SN74LVC244APWRG4's linked devices are operating at the proper voltage levels.

- Power Stability: To stabilize the voltage supply, place decoupling capacitors next to the power supply pins.

- PCB Trace Design: Careful design of PCB traces is necessary to maintain signal integrity and reduce cross-talk.

- Thermal Considerations: Manage heat dissipation effectively, particularly in high-speed or dense circuit layouts.

In summary, the SN74LVC244APWRG4 is a versatile and efficient chip for buffering and driving line signals, particularly useful in digital communication and data transfer systems. When designing circuits with this chip, it's important to consider the electrical characteristics, power requirements, and physical layout constraints to optimize performance and reliability.
