Texas Instruments SN74LVC1G74DCURG4

Part No.:: SN74LVC1G74DCURG4

Manufacturer:: Texas Instruments

Package:: 8-VSSOP

Datasheet:: SN74LVC1G74DCURG4.pdf

Description:: IC FF D-TYPE SNGL 1BIT 8VSSOP

In Stock:: 3083

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G74DCURG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Discontinued at Mosen
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
1
NumberofBitsperElement:
1
ClockFrequency:
200 MHz
MaxPropagationDelay@VMaxCL:
6.4ns @ 5V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Iq):
10 µA
InputCapacitance:
5 pF
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G74DCURG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G74DCURG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G74DCURG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G74DCURG4 information

Views：

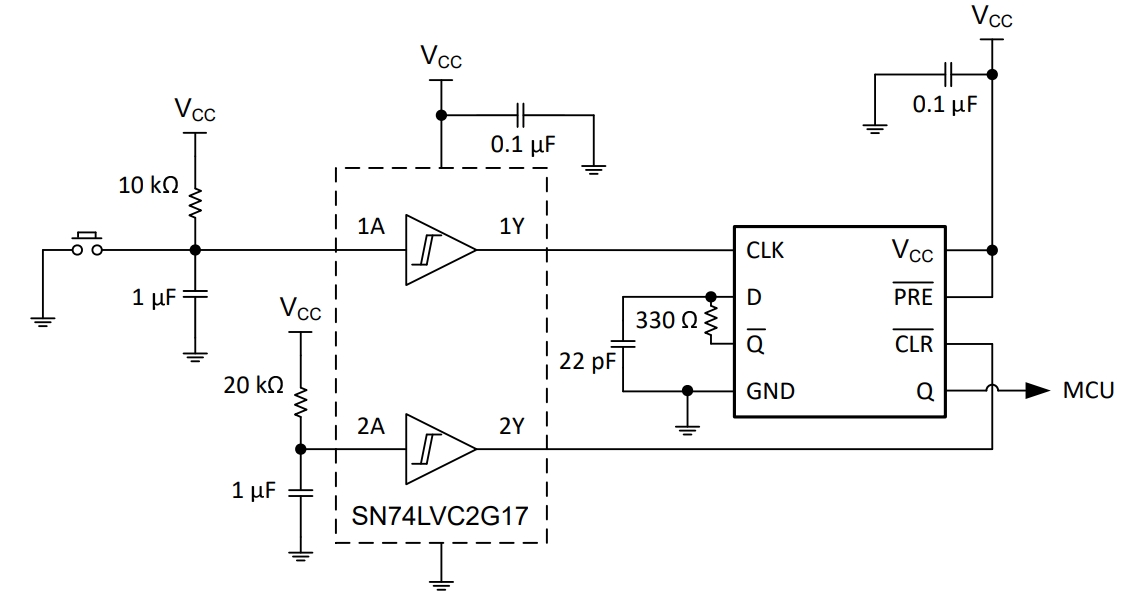

SN74LVC1G74DCURG4 Typical application Circuitry

SN74LVC1G74DCURG4

The SN74LVC1G74DCURG4 is an integral chip in the field of digital electronics, recognized for its specific functionality. This article elaborates on its operational role, typical applications, and critical parameters, and includes a detailed circuit application:

1. Core Function: The SN74LVC1G74DCURG4 serves as a D-type flip-flop. It is designed to store and output a single bit of data based on the input control signals, making it a fundamental element in digital memory and logic circuits.

2. Typical Usage: This SN74LVC1G74DCURG4 chip is instrumental in digital systems where data storage or timing operations are necessary. It's widely used in computing systems, digital signal processing, and timing circuits.

3. Characteristic Features: The device functions with a supply voltage range of 1.65 to 5.5 volts, suiting it to a variety of digital environments. It has fast operation at high speeds, low power consumption, and stable output state maintenance.

4. Circuit Design – Timing Control:

- Pin Configuration: Utilizing Pin 1 (Data Input), Pin 2 (Clock Input), Pin 3 (Reset), Pin 5 (Output), and Pin 6 (VCC). Ground is connected to Pin 4.

- Operational Dynamics: The input data at Pin 1 is latched to the output at Pin 5 on the rising edge of the clock signal at Pin 2. The reset pin (Pin 3) can be used to clear the output when necessary.

- Output Utilization: The output at Pin 5 can be connected to subsequent stages in a digital circuit, such as driving a display element or another logic circuit.

5. Design Considerations: When deploying the SN74LVC1G74DCURG4 in a circuit, attention must be paid to the timing of the clock signal, the stability of the power supply, and the handling of the reset functionality. Including decoupling capacitors near the power supply pin is recommended to ensure a stable power supply.

This composition provides a comprehensive overview of the SN74LVC1G74DCURG4, detailing its functions, application scenarios, and a specific circuit design example.
