Texas Instruments SN74LVC1G66DBVRG4

Part No.:: SN74LVC1G66DBVRG4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: SN74LVC1G66DBVRG4.pdf

Description:: IC SWITCH 1X1 SOT23-5

In Stock:: 2987

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G66DBVRG4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
1
On-StateResistance(Max):
10Ohm
Channel-to-ChannelMatching(ΔRon):
-
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
4.2ns, 5ns
-3dbBandwidth:
300MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
6pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74LVC1G66DBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G66DBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G66DBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G66DBVRG4 information

Views：

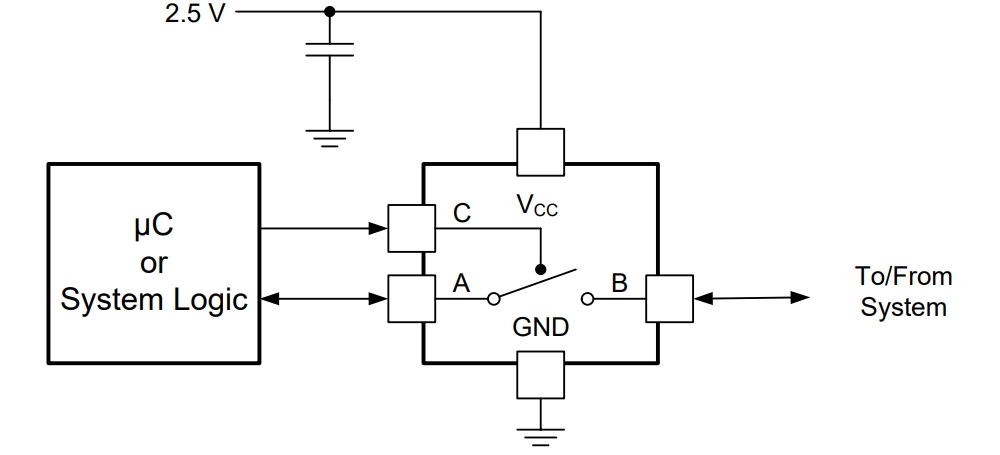

SN74LVC1G66DBVRG4 Typical application Circuitry

SN74LVC1G66DBVRG4

The SN74LVC1G66DBVRG4 is a specialized electronic component widely recognized in the field of integrated circuits. This overview delves into its functionality, application areas, and significant parameters, and includes a comprehensive circuit application:

1. Principal Function: As an analog switch, more especially as a single-pole, single-throw (SPST) switch, the SN74LVC1G66DBVRG4 performs its function. This facilitates the control and routing of analog signals, acting as an effective gatekeeper in various circuits.

2. Application Domains: Predominantly used in signal routing, the chip is essential in systems that require precise control of analog signals. It finds extensive use in fields like telecommunications, audio signal processing, and data acquisition systems.

3. Notable Features: The SN74LVC1G66DBVRG4 chip is designed to function within a 1.65 to 5.5 volts voltage range, making it versatile for diverse applications. It is characterized by its low on-state resistance, high off-state resistance, and excellent signal fidelity, which are crucial for handling analog signals.

4. Circuit Implementation – Signal Modulation System:

- Pin Designation: Employing Pin 1 (Control Input), Pin 2 (Normally Closed), Pin 3 (Common Terminal), and Pin 5 (Normally Open). For example, Pin 5 is connected to a signal source, while Pin 3 is linked to a modulation device.

- Switch Operation: A high voltage at Pin 1 activates the switch, allowing the signal from Pin 5 to be transmitted to Pin 3 and subsequently to the modulation device.

- Handling Outputs: When Pin 1 is low, the switch disconnects, preventing the signal from Pin 5 from reaching Pin 3.

5. Circuit Design Factors: When incorporating the SN74LVC1G66DBVRG4, it is important to consider the control voltage, the integrity of the signal path, and the cleanliness of the power supply. It is recommended to use decoupling capacitors near the power supply pin to reduce noise.

This article aims to provide a thorough understanding of the SN74LVC1G66DBVRG4, focusing on its utility, application scenarios, and an example of circuit design.
