Texas Instruments SN74LVC1G34DBVRG4

Part No.:: SN74LVC1G34DBVRG4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: SN74LVC1G34DBVRG4.pdf

Description:: IC BUF NON-INVERT 5.5V SOT23-5

In Stock:: 3517

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G34DBVRG4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
1
InputType:
-
OutputType:
Push-Pull
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G34DBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G34DBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G34DBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G34DBVRG4 information

Views：

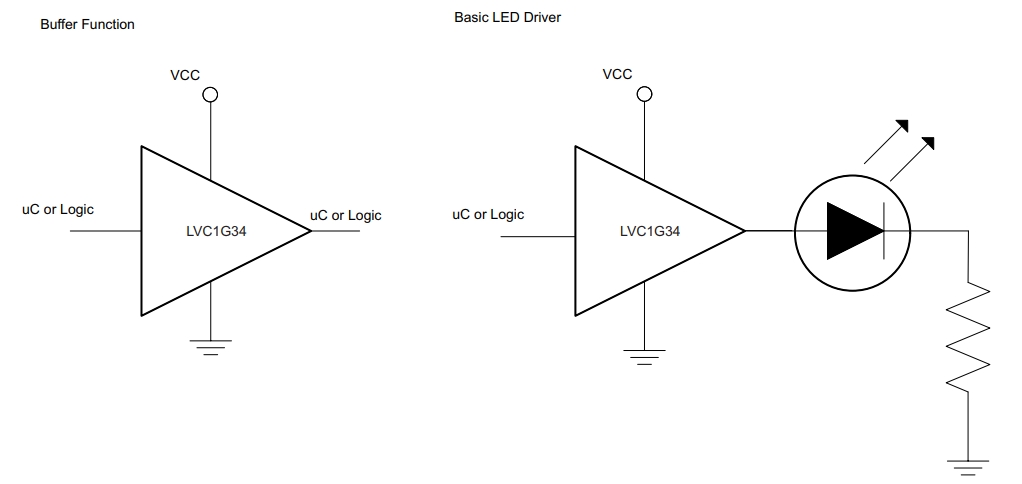

SN74LVC1G34DBVRG4 Typical application Circuitry

SN74LVC1G34DBVRG4

The SN74LVC1G34DBVRG4 is a single, high-drive, low-voltage buffer gate designed for 1.65-V to 5.5-V VCC operation. Part of the 74LVC family, it's known for its compact footprint, making it ideal for space-constrained applications. It is commonly used for signal isolation, logic level shifting, and driving capacitive loads, thanks to its low power consumption and high noise immunity.

Primary Functionality:

The SN74LVC1G34DBVRG4 is principally used as a non-inverting buffer gate. It is adept at isolating the input from the output, maintaining signal integrity, and providing drive strength while requiring minimal power.

Typical Application Scenario:

One frequent application of the SN74LVC1G34DBVRG4 is in interfacing microcontrollers or logic circuits that operate at different voltage levels, thereby functioning as a level shifter.

Characteristic Features:

The device operates within a voltage range of 1.65V to 5.5V, suitable for various logic levels. The SN74LVC1G34DBVRG4 is characterized by low power consumption and high noise immunity, making it a preferred choice for battery-operated devices and environments where noise is a concern.

Circuit Connection for Microcontroller Level Shifting:

1. Power Supply Arrangement:

- Connect the Vcc pin (pin 5) to the higher voltage of the two logic levels you are interfacing. Ensure the ground pin (pin 2) is connected to the system ground for circuit stability.

2. Input Signal Integration:

- Link the output of the lower voltage microcontroller to the A pin (pin 3) of the SN74LVC1G34DBVRG4. This pin will receive the signal that needs level shifting.

3. Output Signal Delivery:

- Connect the Y pin (pin 6) of the SN74LVC1G34DBVRG4 to the input of the device operating at the higher voltage level. The SN74LVC1G34DBVRG4 facilitates the level shift and buffers the signal to the appropriate logic level.

4. Stabilization with Decoupling Capacitor:

- Position a decoupling capacitor (typically 0.1 μF) close to the Vcc pin (pin 5) to smooth out voltage fluctuations and reduce noise, ensuring the SN74LVC1G34DBVRG4 operates reliably.

Circuit Design Considerations:

When designing with the SN74LVC1G34DBVRG4, it's crucial to heed the following:

1. Voltage Compatibility: Ensure all devices in the circuit are compatible with the voltage levels provided by the SN74LVC1G34DBVRG4.

2. Output Loading: Consider the loading on the output pin. It's vital to ensure that it doesn't exceed the device's specified drive capability to prevent signal degradation.

3. Signal Integrity in Extended Runs: If using the SN74LVC1G34DBVRG4 over long distances, incorporate appropriate impedance matching and termination techniques to mitigate signal reflection and loss.

4. Heat Management: Although the SN74LVC1G34DBVRG4 typically features low power dissipation, evaluate thermal considerations in scenarios involving high-frequency or significant load to ensure proper heat dissipation.

To encapsulate, the SN74LVC1G34DBVRG4 is an excellent choice for applications requiring a compact, efficient, and reliable signal buffering solution. A deep understanding of its operational characteristics, application scenarios, and circuit design intricacies is key to harnessing its full potential in any digital system.
