Texas Instruments SN74LVC1G17DBVRE4

Part No.:: SN74LVC1G17DBVRE4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: SN74LVC1G17DBVRE4.pdf

Description:: IC BUF NON-INVERT 5.5V SOT23-5

In Stock:: 3338

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G17DBVRE4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
1
InputType:
Schmitt Trigger
OutputType:
Push-Pull
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G17DBVRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G17DBVRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G17DBVRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G17DBVRE4 information

Views：

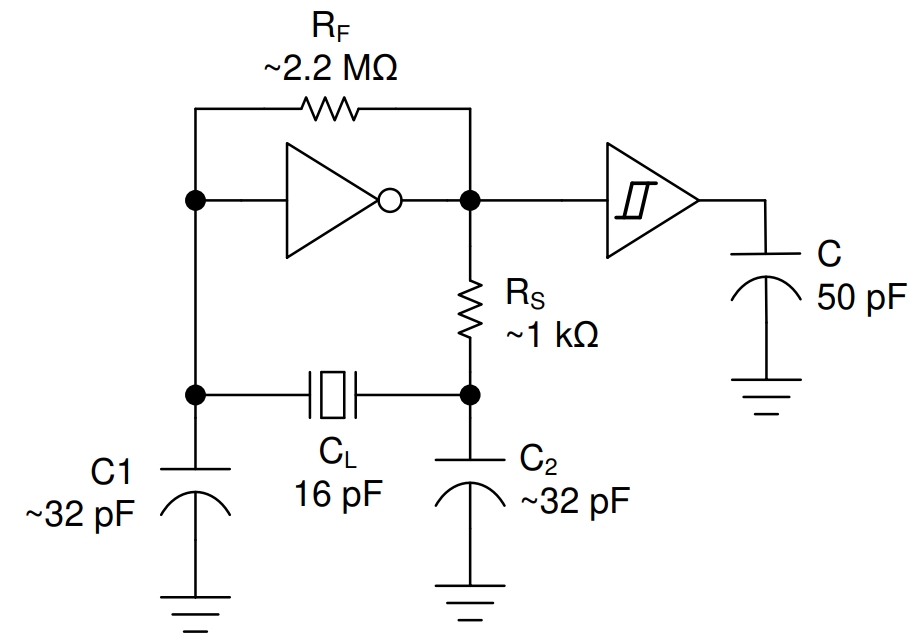

SN74LVC1G17DBVRE4 Typical application Circuitry

SN74LVC1G17DBVRE4

The SN74LVC1G17DBVRE4 is a single Schmitt-trigger buffer chip, part of Texas Instruments' 74LVC family. This device, with its distinctive characteristics and flexible application scenarios, is tailored for situations requiring signal conditioning with a non-inverting output.

Overview of Functionality

This chip has a Schmitt-trigger input and functions as a non-inverting buffer. The Schmitt-trigger feature enhances its noise immunity, making it ideal for stabilizing signals in electrically noisy environments.

Application Scenarios

The SN74LVC1G17DBVRE4 is utilized in various applications:

- Debouncing Mechanical Switches: Eliminates noise from mechanical switch inputs.

- Signal Conditioning: Stabilizes and cleans noisy input signals.

- Logic Level Translation: Translates lower voltage logic signals to higher voltage logic levels.

Key Specifications

Notable attributes of the SN74LVC1G17DBVRE4 include:

- Operating Voltage: Ranges from 1.65 V to 5.5 V.

- Output Drive Capability: Capable of driving ±24 mA at 3.3 V.

- Schmitt-trigger Input: Offers excellent noise margin and hysteresis.

Example Application: Debouncing a Mechanical Switch

Here's a detailed circuit design using the SN74LVC1G17DBVRE4 for debouncing a mechanical switch.

1. Connection Goal: To interface a mechanical switch with a microcontroller input.

2. Power Supply Connections: GND (Pin 4) is connected to the system ground, while VCC (Pin 5) is connected to a 3.3V supply.

3. Switch Interface: Pin 1 (the A input) is linked to the mechanical switch. When the switch is open, a 10kΩ pull-down resistor maintains a steady low condition.

4. Output to Microcontroller: The Y output (Pin 2) is directly connected to a microcontroller input pin. This output provides a clean, debounced signal.

5. Decoupling Capacitor: A 0.1 μF capacitor between VCC and GND near the chip is recommended for power supply stability.

Circuit Design Considerations

When designing with the SN74LVC1G17DBVRE4, attention should be paid to:

- Power Supply Quality: Ensuring a clean and stable power supply is crucial.

- Switch Characteristics: Understanding the mechanical switch's behavior for effective debouncing.

- Microcontroller Input Specifications: Ensuring compatibility with the microcontroller's input characteristics.

In summary, the SN74LVC1G17DBVRE4 is a versatile chip ideal for applications that require signal cleaning and conditioning with a non-inverting output. Its low-voltage operation and Schmitt-trigger input make it particularly useful in noisy environments. Careful consideration of the power supply, input characteristics, and interfacing requirements is essential when integrating this chip into a design.
