What is the Additional Feature ?

Name: SN74LVC1G14DCKRG4
Brand: Texas Instruments
SKU: SN74LVC1G14DCKRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC1G14DCKRG4

Part No.:: SN74LVC1G14DCKRG4

Manufacturer:: Texas Instruments

Package:: SC-70-5

Datasheet:: SN74LVC1G14DCKRG4.pdf

Description:: IC INVERT SCHMITT 1CH 1IN SC70

In Stock:: 3763

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G14DCKRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
1
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.39V ~ 1.87V
LogicLevel-High:
1.16V ~ 3.33V
MaxPropagationDelay@VMaxCL:
5ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC1G14DCKRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G14DCKRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G14DCKRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G14DCKRG4 information

Views：

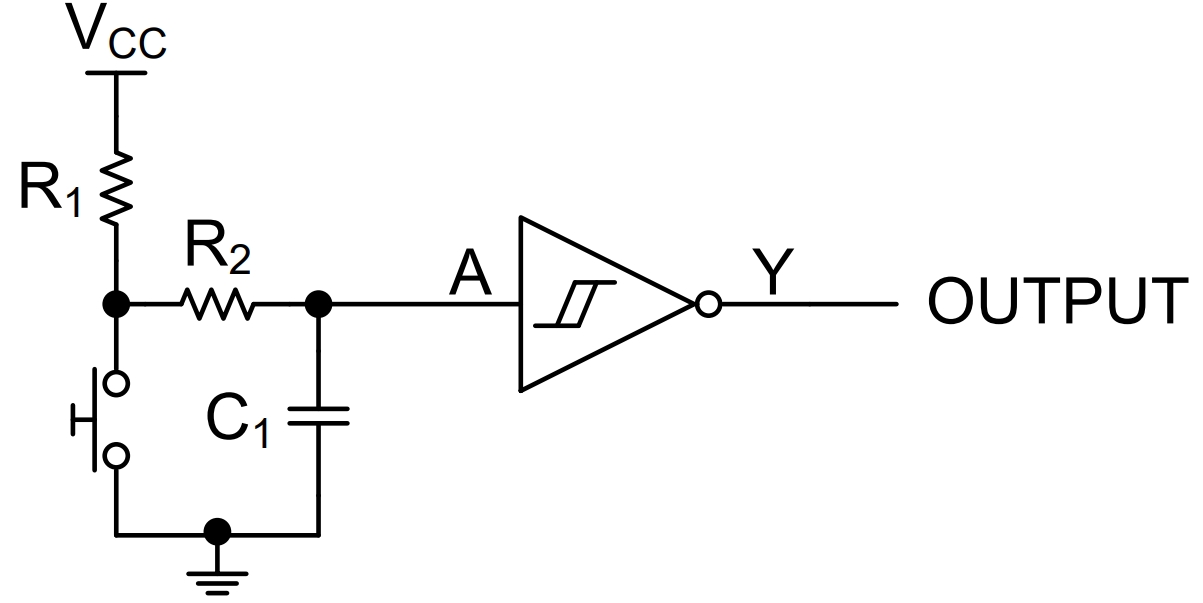

SN74LVC1G14DCKRG4 Typical application Circuitry

SN74LVC1G14DCKRG4

The SN74LVC1G14DCKRG4 is a single Schmitt-trigger inverter chip designed by Texas Instruments. This chip is part of the 74LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems.

Ability to function

With a Schmitt trigger input, the SN74LVC1G14DCKRG4 is mainly utilized as a logic inverter. This means it inverts the input signal, but with the added benefit of a Schmitt trigger, it provides hysteresis. This feature makes it particularly useful in noisy environments as it helps in cleaning up noisy signals.

Application Scenarios

This SN74LVC1G14DCKRG4 chip finds its use in various scenarios, such as:

- Signal Conditioning: In systems where signal integrity is compromised due to noise.

- Wave Shaping: To convert irregular waveforms into square waves.

- Logic Level Conversion: Useful in interfacing devices operating at different voltage levels.

Key Parameters

The SN74LVC1G14DCKRG4 has several noteworthy features:

- Voltage Range: Meets different logic level requirements by operating between 1.65 V and 5.5 V.

- Output Drive Capability: Can drive up to ±24 mA at 3.3 V, suitable for driving LEDs or other low-power devices.

- Hysteresis Voltage: Provides excellent noise immunity.

Example Circuit: Logic Level Conversion

Let's design a logic-level conversion circuit using the SN74LVC1G14DCKRG4.

1. Objective: Convert a 3.3V logic signal to a 5V logic signal.

2. Power Supply: Connect VCC (Pin 5) to a 5V supply and GND (Pin 4) to the ground.

3. Input Connection: Connect the input signal (operating at 3.3V) to the A input (Pin 1).

4. Output Connection: The Y output (Pin 2) will now provide the inverted signal at the 5V logic level.

5. Pull-up Resistor: To ensure a defined logic level when the input is floating, connect a 10kΩ pull-up resistor to the input.

Design-Related Issues

When creating using this chip, take into account:

- Power Supply Stability: Ensure a stable power supply to avoid logic errors.

- Input Signal Characteristics: Understand the nature of the input signal to effectively use the Schmitt-trigger feature.

- Load on Output: Be mindful of the load connected to the output, keeping within the chip's driving capability.

In conclusion, the SN74LVC1G14DCKRG4 is a versatile chip suitable for various applications, especially where signal integrity is a concern. Its low-voltage operation and Schmitt-trigger input make it a robust choice for digital logic circuits. The input signal, power supply, and load must all be carefully considered when building circuits with this chip.

SN74LVC1G14DCKRG4 FAQ

1. How to order SN74LVC1G14DCKRG4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that SN74LVC1G14DCKRG4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the SN74LVC1G14DCKRG4. All suppliers must pass our qualification reviews before they can publish their products including SN74LVC1G14DCKRG4 on icwhale.com; we pay more attention to the channels and quality of SN74LVC1G14DCKRG4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the SN74LVC1G14DCKRG4 price and inventory displayed accurate?

The price and inventory of SN74LVC1G14DCKRG4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of SN74LVC1G14DCKRG4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the SN74LVC1G14DCKRG4 we delivered, we will accept the replacement or return of the SN74LVC1G14DCKRG4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of SN74LVC1G14DCKRG4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
