Name: SN74LVC1G14DBVRG4
Brand: Texas Instruments
SKU: SN74LVC1G14DBVRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC1G14DBVRG4

Part No.:: SN74LVC1G14DBVRG4

Manufacturer:: Texas Instruments

Package:: SOT-23-5

Datasheet:: SN74LVC1G14DBVRG4.pdf

Description:: IC INVERTER 1CH 1-INP SOT23-5

In Stock:: 1361

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G14DBVRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
1
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.39V ~ 1.87V
LogicLevel-High:
1.16V ~ 3.33V
MaxPropagationDelay@VMaxCL:
5ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC1G14DBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G14DBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G14DBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G14DBVRG4 information

Views：

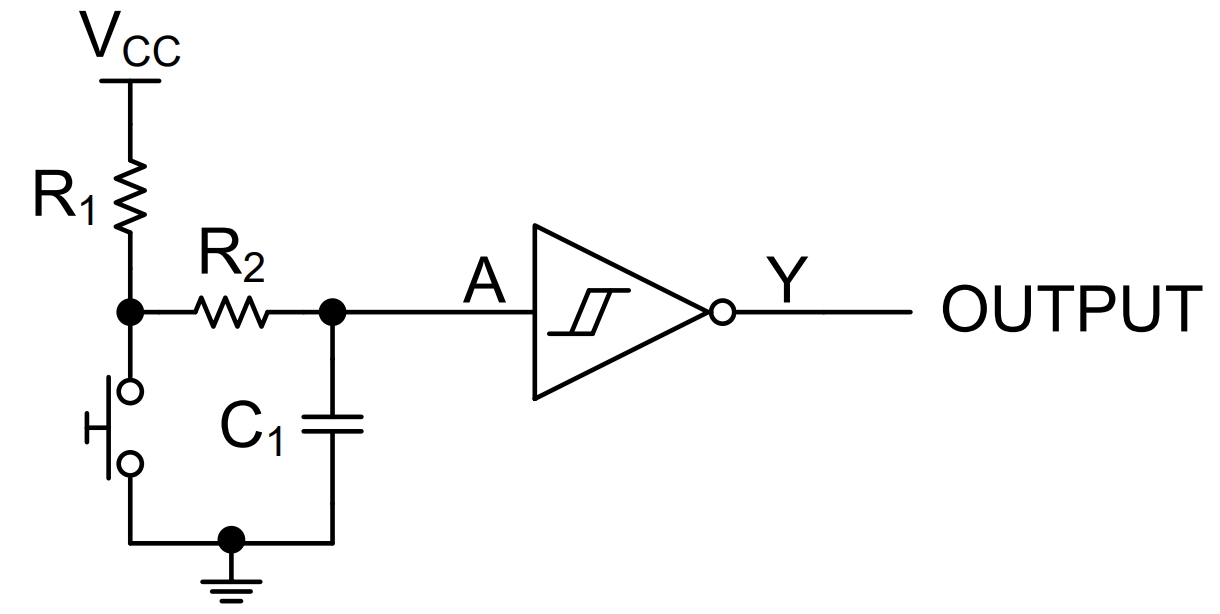

SN74LVC1G14DBVRG4 Typical application Circuitry

SN74LVC1G14DBVRG4

One Schmitt-trigger inverter is what the SN74LVC1G14DBVRG4 integrated circuit does. It is a flexible integrated circuit. This chip belongs to the 74LVC family, which is well-known in digital electronics for its high-speed, low-voltage functioning. Let's examine its features, possible applications, important variables, an example of a particular circuit connection, and design considerations.

1. Primary Function: The SN74LVC1G14DBVRG4 inverts the input signal while providing Schmitt-trigger action. This action allows for greater noise immunity and stability, especially in environments with electrical noise.

2. Usual Applications: It is commonly utilized in signal conditioning, transforming noisy or slow-changing input signals into clean digital outputs. Additionally, it's used in oscillators and wave-shaping circuits.

3. Characteristic Parameters:

- Voltage Compatibility: Operates between 1.65V and 5.5V, accommodating various logic levels.

- Schmitt-trigger Action: Improves resistance to noise, making it appropriate for loud settings.

- Speed and Power Efficiency: Fast response with minimal power consumption.

4. Circuit Connection Example - Noise Filtering in Sensor Signal:

- Input (Pin 1): Connect to a sensor output, which may have a noisy signal.

- Output (Pin 5): This leads to a digital processing unit, like a microcontroller.

- Vcc (Pin 6): Connect to a suitable voltage within the chip's range.

- Grounding (Pin 4): Essential for stable operation, connect to system ground.

5. Circuit Design Considerations:

- Input Signal Quality: Designed to handle noisy or unstable inputs.

- Output Compatibility: Ensure the connected device can accept the output levels.

- Voltage Stability: A consistent voltage source is crucial for reliable operation.

- Bypass Capacitor: A small capacitor near the Vcc pin can help stabilize power supply fluctuations.

Using the SN74LVC1G14DBVRG4 for noise filtering in a sensor application highlights its ability to process real-world signals effectively. In circuit design with this SN74LVC1G14DBVRG4 chip, factors like input signal type, output load, and power supply stability are paramount. This approach emphasizes the critical nature of tailored circuit design when incorporating specialized logic devices such as the SN74LVC1G14DBVRG4 into electronic systems.
