Texas Instruments SN74LVC1G126DCKR

Part No.:: SN74LVC1G126DCKR

Manufacturer:: Texas Instruments

Package:: 5-TSSOP, SC-70-5, SOT-353

Datasheet:: SN74LVC1G126DCKR.pdf

Description:: IC BUF NON-INVERT 5.5V SC70-5

In Stock:: 3226

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G126DCKR Specifications

Package/Case:
5-TSSOP, SC-70-5, SOT-353
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LVC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
1
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G126DCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G126DCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G126DCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G126DCKR information

Views：

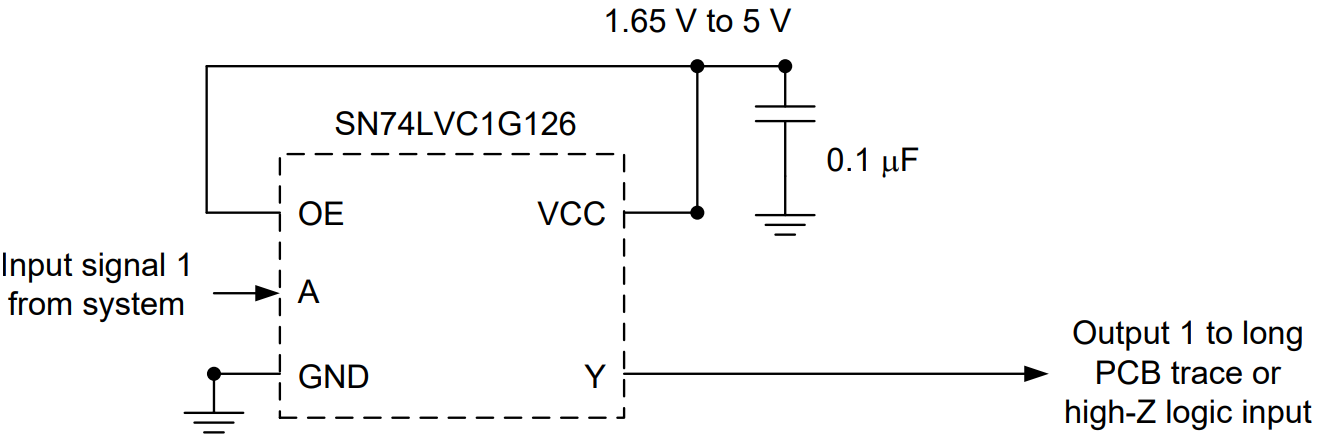

SN74LVC1G126DCKR Typical application Circuitry

SN74LVC1G126DCKR

The SN74LVC1G126DCKR is a single integrated circuit from the SN74LVC series, designed as a single buffer/driver with 3-state output. This device is part of a family known for their high-speed, low-voltage operation, making them ideal for various digital applications that require buffering and driving capabilities with the option of disabling the output.

1. Series Features: The SN74LVC series, which includes the SN74LVC1G126DCKR, is characterized by devices that support low-voltage operation and are capable of interfacing with multiple logic levels. The SN74LVC1G126DCKR, as a buffer/driver, is designed for efficient signal transmission and is especially useful when a 3-state output is required for bus-oriented systems.

2. Pin Configuration and Connection Scheme: The SN74LVC1G126DCKR typically comes in a 5-pin SC70 package. The pin arrangement consists of an input pin (A), an output enable pin (OE), an output pin (Y), a VCC (power supply) pin, and a ground pin (GND). The input pin (A) receives the signal to be buffered. The output enable pin (OE) controls the state of the output; when OE is high, the output (Y) is in a high-impedance state, effectively disabling it, and when OE is low, the output actively drives the input signal. The VCC pin connects to the power supply, and the GND pin should be connected to the circuit's ground.

3. Incorporating into Digital Circuits: To integrate the SN74LVC1G126DCKR into a digital circuit, connect the input (A) to the signal source, and the output (Y) to the load. The OE pin must be controlled accurately to enable or disable the output as needed. This control allows the SN74LVC1G126DCKR to be used effectively in shared bus systems where multiple devices might need to connect to a common data line.

4. Applications in Electronic Systems: The SN74LVC1G126DCKR is commonly used in digital systems where a buffer is required with the ability to disable the output, such as in shared data buses. Its high-speed operation and compatibility with low-voltage logic levels make it suitable for interfacing in modern microprocessors and communication devices.

5. Design Considerations for Circuit Integration: In circuit design, the SN74LVC1G126DCKR's placement should ensure minimal noise on the OE control line and that the impedance of the load connected to the output (Y) is suitable for the application. Decoupling capacitors close to the VCC pin are recommended to provide a stable power supply, which is particularly important in high-speed and low-voltage operations.

6. Handling and Installation Precautions: As a sensitive electronic component, the SN74LVC1G126DCKR should be handled with care to avoid damage from electrostatic discharge (ESD). ESD precautions are necessary during handling and soldering to ensure the device's integrity.

In summary, the SN74LVC1G126DCKR from the SN74LVC series is a single buffer/driver with a 3-state output, ideal for digital systems requiring efficient signal transmission with output disable functionality. Its configuration allows for effective signal buffering in shared bus environments, with careful attention to control line management, power supply stability, and circuit layout being crucial for optimal performance.
