What is the Additional Feature ?

Name: SN74LVC1G08DCKTG4
Brand: Texas Instruments
SKU: SN74LVC1G08DCKTG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC1G08DCKTG4

Part No.:: SN74LVC1G08DCKTG4

Manufacturer:: Texas Instruments

Package:: SC-70-5

Datasheet:: SN74LVC1G08DCKTG4.pdf

Description:: IC GATE AND 1CH 2-INP SC70-5

In Stock:: 7236

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G08DCKTG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
AND Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
-
LogicLevel-High:
-
MaxPropagationDelay@VMaxCL:
4ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G08DCKTG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G08DCKTG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G08DCKTG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G08DCKTG4 information

Views：

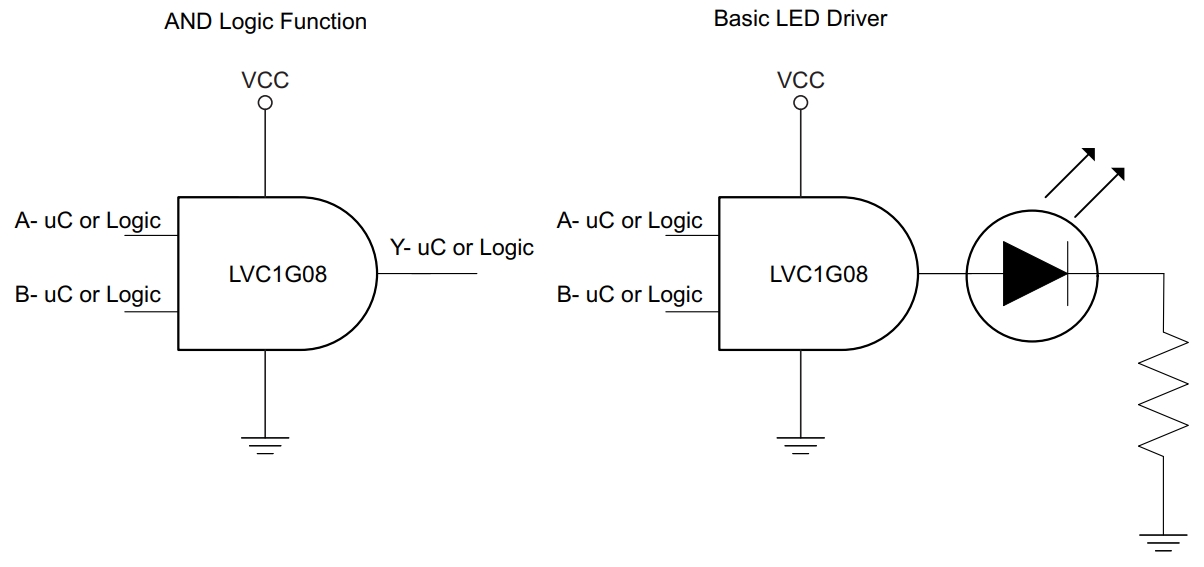

SN74LVC1G08DCKTG4 Typical application Circuitry

SN74LVC1G08DCKTG4

The SN74LVC1G08DCKTG4 is an integrated circuit specifically designed as a 2-input AND gate, commonly used in digital electronics for logical operations. This article will discuss its core functions, application scenarios, parameter characteristics, and provide a detailed circuit connection for a chosen application.

Functional Essence

The SN74LVC1G08DCKTG4 operates as a 2-input AND gate. It is essential in digital circuits, outputting a high signal only when both of its inputs are in a high state.

Application Scenarios

This chip is particularly effective in:

- Logic Processing in Computers: Crucial for creating logical structures in computing hardware.

- Automated Control Circuits: Used where several conditions must be met simultaneously to activate an output.

- Signal Integration in Electronics: Helpful in combining signals for decision-making based on their collective logic states.

Parameter Attributes

Key features of the SN74LVC1G08DCKTG4 include:

- Operational Voltage Range: It functions optimally between 1.65V and 5.5V.

- Power Efficiency: The chip is designed for low power consumption, which is essential in portable or power-sensitive devices.

- Input Adaptability: It can handle various input levels, enhancing its utility in diverse logic environments.

Circuit Connection: Computing Logic Circuit

In-depth Connection Details:

1. Power Source Connection: Attach Pin 5 (VCC) to a 5V power supply.

2. Input Signal Setup: Connect two different digital signals to Pin 1 (A input) and Pin 2 (B input).

3. Output Configuration: The logic AND of inputs A and B will be available at Pin 4 (Y output).

4. Establishing Ground: Connect Pin 3 to the system's ground for circuit integrity and stability.

Design Considerations

When incorporating the SN74LVC1G08DCKTG4 into a circuit, it's crucial to consider:

- Voltage Supply Stability: The power supply should consistently remain within the chip's specified voltage range.

- Appropriate Signal Levels: The input signals must align with the chip's voltage tolerance levels.

- Circuit Layout Optimization: Efficient layout planning is key to minimize noise and ensure signal integrity, especially in dense circuit designs.

In conclusion, the SN74LVC1G08DCKTG4, as a 2-input AND gate, is an integral component in digital logic and automated control systems. Its versatility in voltage compatibility and energy-efficient design make it suitable for various electronic applications. Essential considerations for circuit design include maintaining a stable voltage supply, ensuring proper signal levels, and optimizing the circuit layout for effective and reliable performance.
