Name: SN74LVC1G08DBVTG4
Brand: Texas Instruments
SKU: SN74LVC1G08DBVTG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC1G08DBVTG4

Part No.:: SN74LVC1G08DBVTG4

Manufacturer:: Texas Instruments

Package:: SOT-23-5

Datasheet:: SN74LVC1G08DBVTG4.pdf

Description:: IC GATE AND 1CH 2-INP SOT23-5

In Stock:: 2767

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G08DBVTG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
AND Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
-
LogicLevel-High:
-
MaxPropagationDelay@VMaxCL:
4ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G08DBVTG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G08DBVTG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G08DBVTG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G08DBVTG4 information

Views：

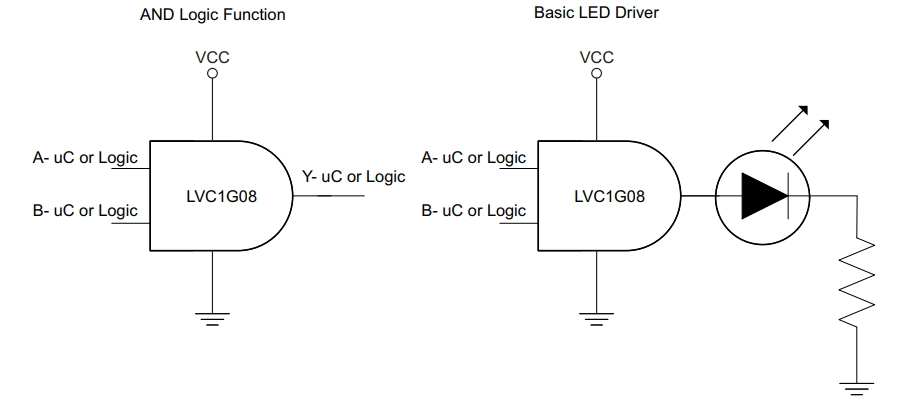

SN74LVC1G08DBVTG4 Typical application Circuitry

SN74LVC1G08DBVTG4

The SN74LVC1G08DBVTG4 is a single 2-input positive-AND gate. It performs the Boolean function Y = A · B or Y = A AND B in positive logic, making it essential for digital circuits where logical operations are required. The device operates on a wide voltage range and offers the advantage of low power consumption.

Application Scenario: Creating a Safety Interlock System

In this scenario, SN74LVC1G08DBVTG4 is used in a safety interlock system where two conditions must be met before allowing access to a hazardous area (e.g., ensuring that a machine is turned off and a safety barrier is in place).

Circuit Connection Strategy

1. Condition Input Connections

- Connect the first condition (e.g., machine power-off status) to the first input pin (A; Pin 1) of SN74LVC1G08DBVTG4.

- Connect the second condition (e.g., safety barrier in place) to the second input pin (B; Pin 2) of SN74LVC1G08DBVTG4.

- Ensure that these conditions provide the correct logic levels for the SN74LVC1G08DBVTG4.

2. Output to Control Mechanism

- Connect the output pin (Y; Pin 5) of SN74LVC1G08DBVTG4 to the control mechanism of the hazardous area (e.g., a lock or an alarm system).

- The output will be active only when both conditions are met, ensuring the safety interlock.

3. Power Supply Integration

- Connect VCC (Pin 6) to a suitable power supply (usually 3.3V or 5V) and GND (Pin 4) to the system ground.

- To provide a steady power supply and reduce noise for the SN74LVC1G08DBVTG4, place decoupling capacitors next to the power pins.

4. Grounding and Decoupling

- Implement a solid ground plane and place decoupling capacitors at the power pins to minimize noise and stabilize operation.

- Proper grounding and decoupling are essential for the stable operation of SN74LVC1G08DBVTG4.

Design Parameters

When integrating SN74LVC1G08DBVTG4 into a circuit, several critical factors need attention:

1. Logic Level Compatibility

- Confirm that the input signals (conditions) are compatible with the input threshold levels of SN74LVC1G08DBVTG4 to ensure proper functioning.

2. Output Drive Capability

- Ensure that the output of SN74LVC1G08DBVTG4 can drive the control mechanism adequately (considering both voltage level and current capability).

3. Noise Immunity

- In a safety-critical system, ensure that the circuit is designed to be immune to noise, using proper routing, shielding, and filtering as necessary.

4. Power Supply Stability

- Ensure that the power supply to SN74LVC1G08DBVTG4 is stable and clean, as fluctuations can impact the performance and reliability, especially in a safety interlock system.

5. Reliability and Redundancy

- Take the system's dependability into account in situations where safety is a top priority. Putting in place fail-safe or redundant systems could be a wise move.

By addressing these considerations and harnessing the operational capabilities of SN74LVC1G08DBVTG4, engineers can effectively employ this single 2-input AND gate in safety interlock systems, ensuring that access to hazardous areas is controlled reliably based on predefined safety conditions.
