Texas Instruments SN74LVC1G07DCKJ

Part No.:: SN74LVC1G07DCKJ

Manufacturer:: Texas Instruments

Package:: 5-TSSOP, SC-70-5, SOT-353

Datasheet:: SN74LVC1G07DCKJ.pdf

Description:: IC BUF NON-INVERT 5.5V SC70-5

In Stock:: 2018

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G07DCKJ Specifications

Package/Case:
5-TSSOP, SC-70-5, SOT-353
Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Obsolete
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
1
InputType:
-
OutputType:
Open Drain
Current-OutputHighLow:
-, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G07DCKJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G07DCKJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G07DCKJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G07DCKJ information

Views：

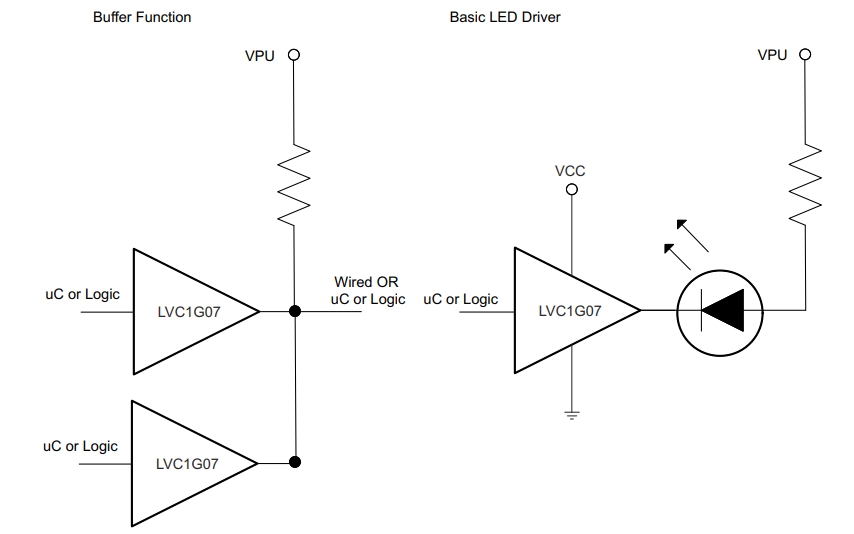

SN74LVC1G07DCKJ Typical application Circuitry

SN74LVC1G07DCKJ

The SN74LVC1G07DCKJ is a single buffer/driver chip with an open-drain output, primarily used for interfacing and signal level shifting in digital electronics.

1. Primary Functionality: This SN74LVC1G07DCKJ IC serves as a buffer or driver, with its open-drain output being particularly useful for interfacing between different voltage domains and for logic level shifting.

2. Application Scenarios: It's commonly utilized in driving bus lines, interfacing between mixed-voltage systems, and in creating wired-AND logic circuits.

3. Key Specifications: The chip operates over a voltage range of 1.65 V to 5.5 V, which makes it versatile across various logic levels. Noteworthy features include its low power consumption and high output drive capability, essential for robust electronic designs.

4. Circuit Design - Bus Line Driver:

- Input Connection: Attach the input (signal to be driven) to pin 1 of the SN74LVC1G07DCKJ. This input can be from a logic controller or sensor output.

- Output Configuration: The open-drain output (pin 2) should be connected through a pull-up resistor to the desired voltage level, which could be higher than the input signal's voltage.

- Power Supply Arrangement: Connect Vcc (pin 5) to a power source within the chip's operational voltage range and ground pin 4.

- Noise Mitigation: Include a decoupling capacitor of around 0.1 μF near the Vcc pin to reduce the impact of power supply noise on the circuit.

5. Design Considerations:

- Voltage Level Compatibility: Ensure that the input and output voltage levels are within the chip's operating range and suitable for interfaced circuits.

- Selecting Pull-up Resistor: The pull-up resistor value should be chosen based on the target voltage level and the current requirements of the output.

- PCB Design for Signal Integrity: Proper PCB layout is crucial, especially in high-frequency applications, to minimize trace lengths and avoid potential signal interference.

When incorporating the SN74LVC1G07DCKJ into a circuit, attention to voltage compatibility, load requirements, and overall circuit design is key to achieving optimal performance. This SN74LVC1G07DCKJ chip's ability to interface between different voltage levels makes it a valuable component in a wide range of electronic applications.
