Texas Instruments SN74LVC1G07DBVRE4

Part No.:: SN74LVC1G07DBVRE4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: SN74LVC1G07DBVRE4.pdf

Description:: IC BUF NON-INVERT 5.5V SOT23-5

In Stock:: 3994

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G07DBVRE4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
1
InputType:
-
OutputType:
Open Drain
Current-OutputHighLow:
-, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC1G07DBVRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G07DBVRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G07DBVRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G07DBVRE4 information

Views：

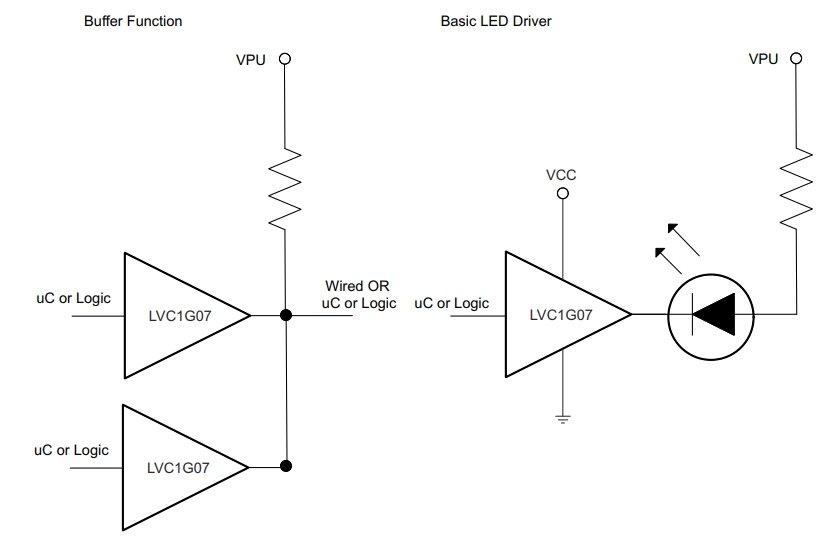

SN74LVC1G07DBVRE4 Typical application Circuitry

SN74LVC1G07DBVRE4

The SN74LVC1G07DBVRE4 is a buffer/driver chip with open-drain output, widely used in digital electronics for interfacing and signal conditioning.

1. Functional Aspect: This IC primarily acts as a buffer or driver, offering open-drain output, which allows for voltage level shifting and interfacing between different logic levels.

2. Application in Electronics: It's used in a variety of settings including bus line driving, interfacing between different voltage domains, and creating wired-AND logic functions.

3. Parametric Highlights: The SN74LVC1G07DBVRE chip operates across a voltage range of 1.65 V to 5.5 V, making it versatile for different digital systems. It's known for low power consumption and high output drive capacity, important for robust electronic designs.

4. Circuit Implementation - Interfacing Different Voltage Domains:

- Input Connection: Attach the input signal to pin 1 of the SN74LVC1G07DBVRE4. This signal could come from a lower voltage logic circuit.

- Output Handling: The SN74LVC1G07DBVRE open-drain output (pin 2) should be connected to a higher voltage level through a pull-up resistor.

- Power Supply Setup: Link Vcc (pin 5) to the higher voltage domain (up to 5.5 V) and connect pin 4 to the ground of the lower voltage domain.

- Noise Minimization: Place a small (0.1 μF) decoupling capacitor close to the Vcc pin to filter out power supply noise.

5. Design Considerations:

- Voltage Level Matching: Ensure that the voltage levels are appropriate for the chip and the connected circuits.

- Pull-up Resistor Selection: Choose a pull-up resistor value that matches the desired output voltage level and current requirements.

- PCB Layout Considerations: In designs where signal integrity is important, the PCB layout should minimize trace lengths and avoid interference sources.

When incorporating the SN74LVC1G07DBVRE4 into a circuit, it's crucial to consider factors like voltage compatibility, load characteristics, and the overall design to ensure efficient performance. This chip's ability to interface between different voltage levels makes it invaluable in a wide range of electronic applications.
