Texas Instruments SN74LVC1G04DCKRE4

Part No.:: SN74LVC1G04DCKRE4

Manufacturer:: Texas Instruments

Package:: SC-70-5

Datasheet:: SN74LVC1G04DCKRE4.pdf

Description:: IC INVERTER 1CH 1-INP SC70-5

In Stock:: 2276

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G04DCKRE4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
1
NumberofInputs:
1
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.7V ~ 0.8V
LogicLevel-High:
1.7V ~ 2V
MaxPropagationDelay@VMaxCL:
3.7ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC1G04DCKRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G04DCKRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G04DCKRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G04DCKRE4 information

Views：

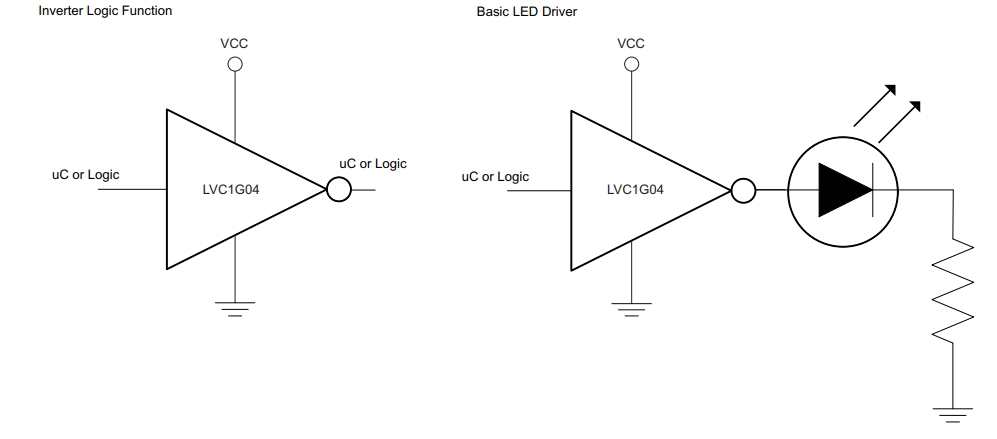

SN74LVC1G04DCKRE4 Typical application Circuitry

SN74LVC1G04DCKRE4

The SN74LVC1G04DCKRE4 is a highly functional single inverter chip, vital in numerous digital electronic applications for its ability to flip signal logic.

1. Primary Role: The SN74LVC1G04DCKRE4 chip acts as a basic inverter, outputting the logical opposite of its input signal. It's a fundamental component in digital logic, used for creating inverted signals.

2. Applications in Electronics: This SN74LVC1G04DCKRE4 chip is utilized in signal processing, logic circuit construction, and pulse shaping. In many different kinds of devices, from consumer electronics to sophisticated computer systems, its fundamental inverting function is essential.

3. Key Specifications: The SN74LVC1G04DCKRE4 operates with a voltage range of 1.65 V to 5.5 V, suitable for many digital systems. It features low power consumption and high noise immunity, essential for stable and efficient operation.

4. Circuit Example - Signal Processing:

- Input Connection: Attach the input signal to pin 1 of the SN74LVC1G04DCKRE4. This input could be a digital signal from a sensor or a microcontroller.

- Output Management: The output from pin 2 provides the inverted signal, which can be used in further digital processing or as a control signal.

- Power Supply Arrangement: Connect Vcc (pin 5) to a suitable power source within the chip's voltage range, and ground pin 4.

- Circuit Stability: Implement a 0.1 μF decoupling capacitor near the Vcc pin to minimize power supply noise.

5. Design Considerations:

- Voltage Level Matching: Ensure that the input signal's voltage is compatible with the chip's operational range.

- Output Loading: The connected load at the output should be within the chip's driving capabilities.

- PCB Layout for Signal Integrity: In high-speed applications, the PCB layout should be designed to minimize signal distortion and interference.

Incorporating the SN74LVC1G04DCKRE4 into a circuit requires careful attention to details such as voltage compatibility, load capacity, and overall circuit design to ensure efficient performance. Its ability to provide accurate signal inversion makes it a crucial component in a wide array of electronic applications.
