Texas Instruments SN74LVC1G00DCKRE4

Part No.:: SN74LVC1G00DCKRE4

Manufacturer:: Texas Instruments

Package:: SC-70-5

Datasheet:: SN74LVC1G00DCKRE4.pdf

Description:: IC GATE NAND 1CH 2-INP SC70-5

In Stock:: 9000

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC1G00DCKRE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
NAND Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.7V ~ 0.8V
LogicLevel-High:
1.7V ~ 2V
MaxPropagationDelay@VMaxCL:
4.3ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC1G00DCKRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC1G00DCKRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC1G00DCKRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC1G00DCKRE4 information

Views：

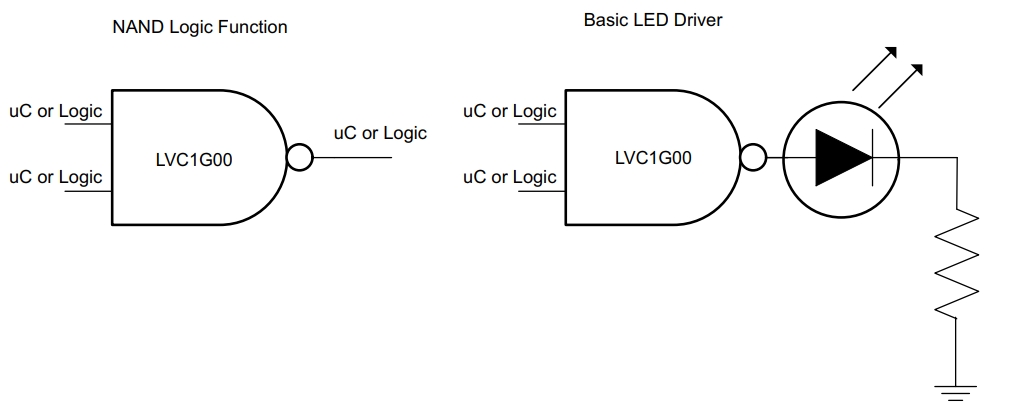

SN74LVC1G00DCKRE4 Typical application Circuitry

SN74LVC1G00DCKRE4

The SN74LVC1G00DCKRE4 is a single 2-input NAND gate integrated circuit, known for its versatility and efficiency in digital electronics.

1. Primary Functionality: The SN74LVC1G00DCKRE4 serves as a basic building block in digital logic, performing the NAND operation. It produces a high signal when one or both of its inputs are low; it only produces a low signal when both inputs are high.

2. Applications in Digital Circuits: This SN74LVC1G00DCKRE4 chip is used extensively in creating custom logic functions, signal processing applications, and as part of control systems in various electronic devices.

3. Technical Characteristics: Key features include a broad operating voltage range (1.65 V to 5.5 V), making it suitable for different logic levels. In delicate electronic applications, low power consumption and high noise immunity are also critical characteristics.

4. Circuit Implementation - Signal Interface:

- Input Setup: Connect the two inputs (pins 1 and 2 on the SN74LVC1G00DCKRE4) to outputs from sensors or other logic circuits.

- Output Utilization: The SN74LVC1G00DCKRE4 output (pin 3) can be linked to further digital logic gates or used to drive a display element, like an LED.

- Power Supply Arrangement: Attach Vcc (pin 5) to your selected power source within the chip's voltage range and ground pin 4.

- Noise Reduction: Implement a decoupling capacitor near the Vcc pin to minimize power supply noise and fluctuations.

5. Design Considerations:

- Input Voltage Levels: Ensure compatibility between the input signals and the chip's voltage range.

- Output Load Handling: Be mindful of the load connected to the output; it should be within the chip's driving capacity.

- Layout and Shielding: In environments with potential electromagnetic interference, proper PCB layout and shielding are necessary.

Integrating the SN74LVC1G00DCKRE4 into a circuit demands careful consideration of voltage levels, input signal nature, and the surrounding electronic environment. This chip's ability to execute fundamental logic operations with high efficiency makes it an essential component in diverse electronic systems.
