What is the Additional Feature ?

Name: SN74LVC16245ADLRG4
Brand: Texas Instruments
SKU: SN74LVC16245ADLRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC16245ADLRG4

Part No.:: SN74LVC16245ADLRG4

Manufacturer:: Texas Instruments

Package:: 48-BSSOP (0.295, 7.50mm Width)

Datasheet:: SN74LVC16245ADLRG4.pdf

Description:: IC TXRX NON-INVERT 3.6V 48SSOP

In Stock:: 3117

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC16245ADLRG4 Specifications

Package/Case:
48-BSSOP (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Obsolete
LogicType:
Transceiver, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
24mA, 24mA
Voltage-Supply:
1.65V ~ 3.6V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LVC16245ADLRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC16245ADLRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC16245ADLRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC16245ADLRG4 information

Views：

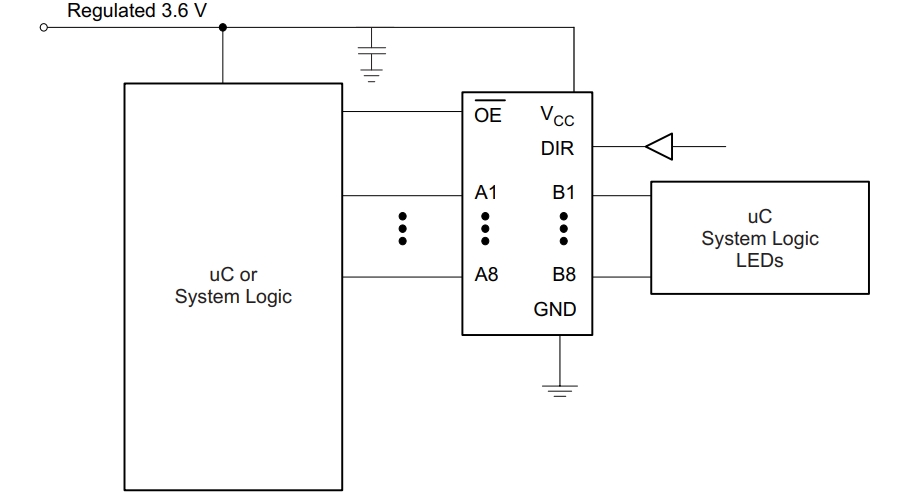

SN74LVC16245ADLRG4 Typical application Circuitry

SN74LVC16245ADLRG4

The 16-bit bus transceiver, SN74LVC16245ADLRG4, features three-state outputs and is primarily designed for asynchronous data bus communication. This device enables bidirectional data transfer between the B bus and the A bus, depending on the logic levels applied to its output enable (OE) and direction control (DIR) inputs. Renowned for its attributes including low power consumption, high-speed performance, and a wide operational voltage range, it serves as a reliable choice for various applications.

Application Scenario: Data Communication Between Different Voltage Domains in a Mixed-Voltage System

In this scenario, SN74LVC16245ADLRG4 is used for data communication between components operating in different voltage domains within a mixed-voltage system, ensuring correct logic level translation and safe interfacing.

Circuit Connection Strategy

1. Lower Voltage Domain Interface

- Connect the lower voltage domain component's data lines to the A-side pins (A1 to A16; Pins 2, 4, 6...32) of SN74LVC16245ADLRG4.

- Ensure that the component's data lines are compatible with SN74LVC16245ADLRG4's input levels on the A-side.

2. Higher Voltage Domain Interface

- Connect the higher voltage domain component's data lines to the B-side pins (B1 to B16; Pins 3, 5, 7...33) of SN74LVC16245ADLRG4.

- Verify that the component's data lines are compatible with SN74LVC16245ADLRG4's input levels on the B-side.

3. Direction Control and Output Enable

- Connect the DIR pin (Pin 1) of SN74LVC16245ADLRG4 to control output of the primary component (the one initiating data communication).

- Connect the OE pin (Pin 19) of SN74LVC16245ADLRG4 to another control output of the primary component.

- DIR and OE control the data flow direction and the enabling/disabling of the data lines, respectively.

4. Power Supply and Grounding

- Connect VCCA (Pin 48) to the lower voltage domain's power supply and VCCB (Pin 38) to the higher voltage domain's power supply.

- Connect all ground pins to the system ground to ensure a common reference point.

- Implement decoupling capacitors near the power pins to ensure a stable power supply for SN74LVC16245ADLRG4.

5. Grounding and Decoupling Measures

- Develop a comprehensive ground plane and place decoupling capacitors at the power pins to minimize noise and stabilize the operation of SN74LVC16245ADLRG4.

Design Parameters

When integrating SN74LVC16245ADLRG4 into a circuit, consider the following factors:

1. Voltage Level Compatibility

- Ensure that the voltage levels of both components match the input/output levels of SN74LVC16245ADLRG4 on respective sides.

2. Signal Integrity and Noise Immunity

- Design the circuit to be immune to noise, employing proper routing, shielding, and filtering, especially in mixed-voltage or noisy environments.

3. Power Supply Quality

- Verify that the power supplies to SN74LVC16245ADLRG4 (VCCA and VCCB) are stable and devoid of noise, as fluctuations can impact performance and reliability.

4. Thermal Management

- Assess the thermal load, especially if SN74LVC16245ADLRG4 is expected to drive heavy loads or operate at high frequencies, and consider appropriate cooling solutions if necessary.

5. Control Signal Timing

- Coordinate the timing of DIR and OE signals accurately with data transmission to prevent data corruption or contention on the bus lines.

By thoroughly addressing these considerations and exploiting the functional capabilities of SN74LVC16245ADLRG4, engineers can effectively use this 16-bit bus transceiver in mixed-voltage systems, ensuring robust and reliable data communication between components operating at different voltage levels.
