What is the Additional Feature ?

Name: SN74LVC14APWRG4
Brand: Texas Instruments
SKU: SN74LVC14APWRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC14APWRG4

Part No.:: SN74LVC14APWRG4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP

Datasheet:: SN74LVC14APWRG4.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 3208

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC14APWRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LVC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 3.6V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
24mA, 24mA
LogicLevel-Low:
0.15V ~ 0.8V
LogicLevel-High:
1.3V ~ 2V
MaxPropagationDelay@VMaxCL:
6.2ns @ 3.3V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC14APWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC14APWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC14APWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC14APWRG4 information

Views：

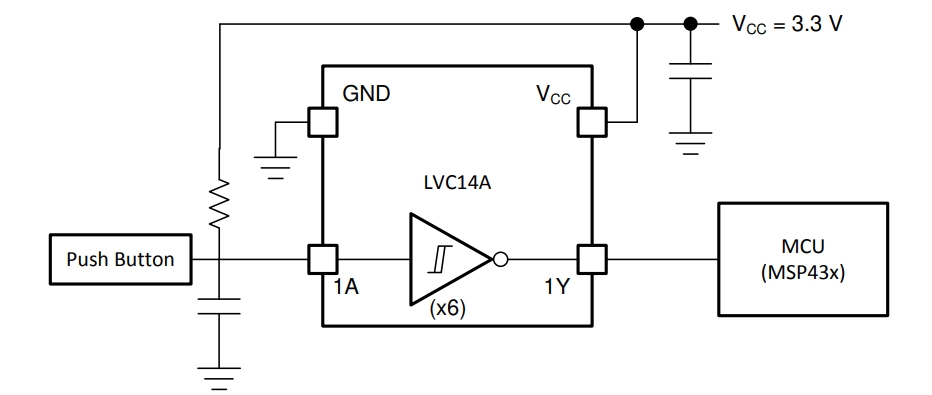

SN74LVC14APWRG4 Typical application Circuitry

SN74LVC14APWRG4

The SN74LVC14APWRG4 is a hex schmitt-trigger inverter chip, commonly used in digital electronics. It offers several features and applications, which I'll detail below along with a specific application circuit.

1. Functionality: The SN74LVC14APWRG4 is designed for applications requiring Schmitt-trigger inputs. These inputs are designed to handle slow input transition rates, providing a clean, stable output even in the presence of noisy inputs.

2. Application Scenarios: This SN74LVC14APWRG4 chip is widely used in wave shaping, signal conditioning, and in creating square waves from sinusoidal inputs. It's also employed in debounce circuits, where mechanical switch inputs are cleaned to avoid multiple transitions.

3. Parameter Features: This chip can accept inputs above the supply voltage and can function at a broad range of supply voltages, from 2 V to 5.5 V. With a typical tpd of 3.4 ns, it also has a high operating speed and low power consumption.

4. Specific Application Circuit - Debouncing a Mechanical Switch:

- Connection: Connect the mechanical switch between the ground and a pull-up resistor linked to a positive voltage supply. The junction of the switch and the resistor connects to the input of one of the inverters (say, pin 1 of the SN74LVC14APWRG4).

- Output Handling: The output of this inverter (pin 2) can be directly used for digital input to a microcontroller or another digital circuit.

- Power Supply: GND (pin 7) connects to the ground, while Vcc (pin 14) connects to the positive supply.

- Additional Decoupling Capacitor: To stabilize the supply voltage, place a 0.1 μF capacitor close to the Vcc pin.

5. Design Points to Keep in Mind:

- Power Supply Stability: Make sure there are no fluctuations in the power supply as this can impact performance.

- Input Signal Conditioning: If the input signal is highly noisy, additional filtering may be needed before it reaches the chip.

- Temperature and Environmental Factors: Be aware of the operating temperature range and environmental conditions, as they can affect the chip's performance.

In designing circuits with the SN74LVC14APWRG4, it's crucial to understand the specific requirements of the application and to ensure that the SN74LVC14APWRG4 chip is used within its operational limits. This chip's ability to handle noisy inputs in a variety of ways makes it a useful part of many digital applications.
