Name: SN74LVC08ADR
Brand: Texas Instruments
SKU: SN74LVC08ADR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LVC08ADR

Part No.:: SN74LVC08ADR

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74LVC08ADR.pdf

Description:: IC GATE AND 4CH 2-INP 14SOIC

In Stock:: 3329

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LVC08ADR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 3.6V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
24mA, 24mA
LogicLevel-Low:
0.7V ~ 0.8V
LogicLevel-High:
1.7V ~ 2V
MaxPropagationDelay@VMaxCL:
3.9ns @ 3.3V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LVC08ADR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LVC08ADR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LVC08ADR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LVC08ADR information

Views：

SN74LVC08ADR Typical application Circuitry

SN74LVC08ADR

SN74LVC08ADR is a digital logic chip that functions as a quad 2-input AND gate. It's part of the 74LVC series, known for low-voltage operation and compatibility with CMOS technology.

Application Scenarios and Parameter Features

1. Digital Logic Circuit Design: The SN74LVC08ADR is widely used for creating complex logic functions in digital circuits.

2. Signal Conditioning: Ideal for processing and conditioning signals in various electronic systems.

3. Microcontroller Input Expansion: Useful for expanding the input capabilities of a microcontroller by combining multiple signals.

Parameter Features

- Voltage Range: Operates between 1.65V to 5.5V, suitable for low-voltage applications.

- Four separate 2-input AND gates are present in the Quad 2-Input AND Gates.

- Circuit Message Signal Processing Compatibility: Guarantees excellent noise immunity and little power usage.

Specific Circuit Connection (Microcontroller Input Expansion)

Circuit Configuration: Setting up a circuit for expanding microcontroller inputs using SN74LVC08ADR.

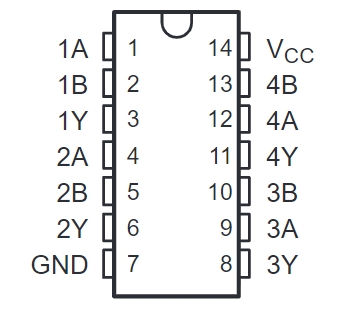

1. Power Supply Connection: Connect pin 14, or the VCC pin, to a 3.3V power supply.

2. Grounding: Link the GND pin (pin 7) to the circuit's ground.

3. Input Signal Connections: Attach inputs of the first AND gate (pins 1 and 2) to two different digital signals that need to be combined.

4. Output to Microcontroller: Wire the output of the first AND gate (pin 3) to an input pin on the microcontroller.

Design Considerations

- Matching Input Voltage Levels: Ensure that the input signals are within the voltage range of SN74LVC08ADR.

- Power Decoupling: To reduce noise, place a decoupling capacitor close to the power supply pin.

- Output Load: Consider the output load of SN74LVC08ADR to ensure it matches the microcontroller's input specifications.

- Signal Integrity: Maintain proper PCB layout practices to preserve signal integrity.

This detailed outline highlights various applications and crucial design factors to consider when integrating SN74LVC08ADR into a circuit.
