Name: SN74LV245APWR
Brand: Texas Instruments
SKU: SN74LV245APWR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LV245APWR

Part No.:: SN74LV245APWR

Manufacturer:: Texas Instruments

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74LV245APWR.pdf

Description:: IC TXRX NON-INVERT 5.5V 20TSSOP

In Stock:: 2010

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LV245APWR Specifications

Package/Case:
20-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LV
ProductStatus:
Active
LogicType:
Transceiver, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
16mA, 16mA
Voltage-Supply:
2V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LV245APWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LV245APWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LV245APWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LV245APWR information

Views：

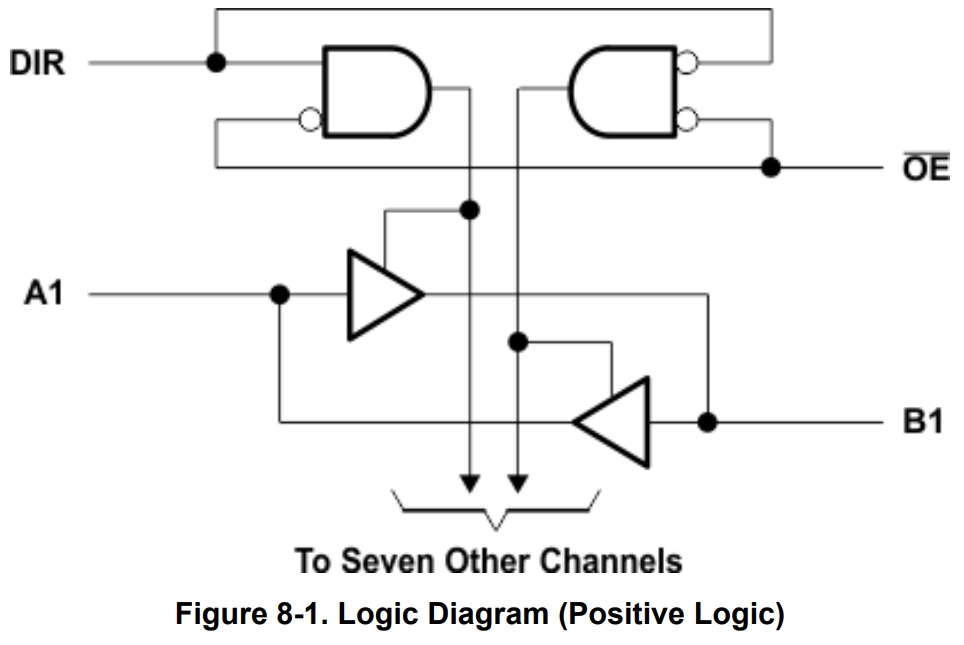

SN74LV245APWR Typical application Circuitry

SN74LV245APWR

The SN74LV245APWR is a type of integrated circuit known as an octal bus transceiver with 3-state outputs. This chip belongs to the 74LV family, indicating it operates with low-voltage and has a high-speed interface. It's commonly used for bidirectional communication between data buses in digital systems.

Applications:

The SN74LV245APWR is often used in:

1. Data Communication: Between microprocessors, microcontrollers, and other digital ICs in a system.

2. Signal Bridging: For transferring signals between different voltage domains or over longer distances.

3. Memory Interfaces: For connecting RAM, EEPROM, and other memory devices to microcontrollers.

Key Features

- Voltage Range: Operates from 2.7V to 5.5V, suitable for low-voltage applications.

- High Drive: Capable of driving heavily loaded buses with up to 64 mA of drive current.

- Low Power Consumption: Ideal for battery-operated devices.

- Bidirectional Data Flow: Can transfer data in both directions between two buses.

Example Application: Microcontroller to Memory Interface:

Let's consider a scenario where the SN74LV245APWR is used to interface a microcontroller with an external memory module:

1. Vcc (Pin 20) and GND (Pin 10): Connect these pins to the power supply (2.7V to 5.5V) and ground, respectively.

2. Direction Pin (DIR, Pin 1): This regulates the data flow direction. Connect to a GPIO pin on the microcontroller to dynamically control data direction.

3. Output Enable (OE, Pin 19): To enable or disable outputs, connect this pin to another GPIO pin on the microcontroller.

4. Data Pins (A1-A8, B1-B8): A-side pins connect to the microcontroller's data bus, and B-side pins connect to the memory module's data bus.

When designing circuits with SN74LV245APWR, consider:

- Load Capacitance: Ensure the total load on the data lines does not exceed the chip's driving capacity.

- Signal Integrity: To reduce crosstalk and signal degradation, use appropriate PCB layout strategies.

- Power Supply Stability: To prevent erratic behavior or data corruption, make sure the power supply is steady.

In conclusion, the SN74LV245APWR is a versatile chip suitable for a range of applications, especially where efficient bidirectional data communication is required. When incorporating it into a design, attention to detail in the connections and circuit environment is crucial for optimal performance.
