What is the Additional Feature ?

Name: SN74LV244APWT
Brand: Texas Instruments
SKU: SN74LV244APWT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LV244APWT

Part No.:: SN74LV244APWT

Manufacturer:: Texas Instruments

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74LV244APWT.pdf

Description:: IC BUF NON-INVERT 5.5V 20TSSOP

In Stock:: 3866

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LV244APWT Specifications

Package/Case:
20-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LV
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
4
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
16mA, 16mA
Voltage-Supply:
2V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74LV244APWT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LV244APWT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LV244APWT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LV244APWT information

Views：

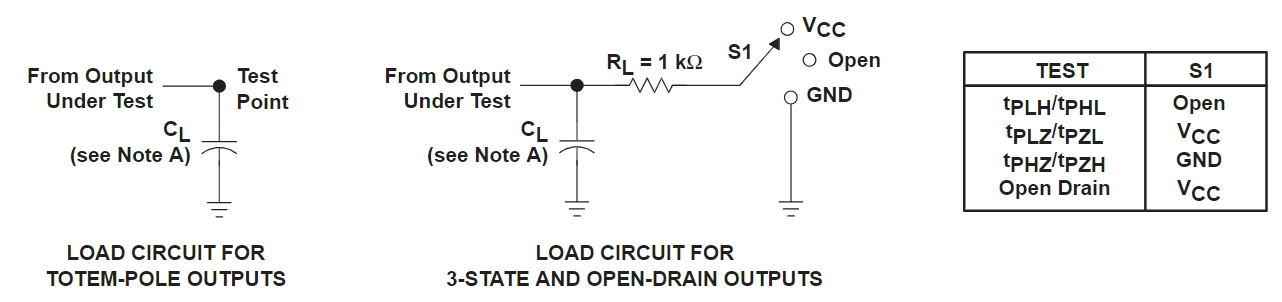

SN74LV244APWT Typical application Circuitry

SN74LV244APWT

The SN74LV244APWT is an octal (8-bit) buffer and line driver with 3-state outputs, designed to interface with bus lines or buffer memory address registers in digital systems. It's capable of driving heavy loads and maintaining high-speed data transmission. The device features a wide operating voltage range and high drive strength, making it suitable for interfacing with high-capacity or low-impedance backplanes.

Application Scenario: Driving a Parallel Interface LCD Display from a Microcontroller

In this scenario, SN74LV244APWT is used to drive the data lines of a parallel interface LCD display from a microcontroller, ensuring stable data transmission and protecting the microcontroller from potential overcurrent conditions.

Circuit Connection Strategy

1. Microcontroller Data Interface

- Connect the microcontroller's data outputs to the input pins (A1 to A8; Pins 2, 4, 6, 8, 10, 12, 14, 16) of SN74LV244APWT.

- Voltage Compatibility: Ensure the microcontroller's output levels are within the operating range of SN74LV244APWT.

2. LCD Data Interface

- Connect the LCD's data inputs to the output pins (B1 to B8; Pins 18, 16, 14, 12, 10, 8, 6, 4) of SN74LV244APWT.

- Signal Integrity: Utilize the 3-state output capability for controlled signal transmission to the LCD.

3. Output Enable Control

- Connect the output enable pins (1OE and 2OE; Pins 1 and 19) of SN74LV244APWT to control pins of the microcontroller.

- Controlled Output: Precisely manage these pins to switch the buffer outputs between active and high-impedance states as required.

4. Power Supply and Grounding

- Connect VCC (Pin 20) to a suitable power supply (typically 3.3V or 5V) and GND (Pin 10) to the system ground.

- Stable Power: Use decoupling capacitors close to the power pins to ensure a stable power supply for SN74LV244APWT.

5. Proper Grounding and Decoupling

- Minimize Noise: Implement a robust ground plane and place decoupling capacitors at the power pins to minimize noise and stabilize the operation of SN74LV244APWT.

Design Parameters

When incorporating SN74LV244APWT into a circuit, consider the following key factors:

1. Voltage Level Matching

- Verify that the voltage levels of the microcontroller and the LCD are compatible with the input/output levels of SN74LV244APWT.

2. Load Driving Capacity

- Ensure that SN74LV244APWT can effectively drive the LCD's input lines, considering the current requirements and voltage levels.

3. Signal Integrity Concerns

- Design the circuit layout to maintain signal integrity, employing proper routing, shielding, and filtering to protect against noise and interference.

4. Reliability of Power Supply

- Guarantee a stable and clean power supply to SN74LV244APWT, as voltage fluctuations can affect performance and reliability.

5. Thermal Considerations

- Assess the thermal conditions, especially if SN74LV244APWT is expected to drive heavy loads, and implement cooling solutions if required.

By meticulously addressing these considerations and leveraging the operational features of SN74LV244APWT, engineers can effectively use this octal buffer and line driver in systems requiring robust data transmission to LCD displays, ensuring optimal performance and reliability.
