Texas Instruments SN74LV14ADR

Part No.:: SN74LV14ADR

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74LV14ADR.pdf

Description:: IC INV SCHMITT 6CH 1-IN 14SOIC

In Stock:: 3617

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LV14ADR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LV
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
20 µA
Current-OutputHighLow:
12mA, 12mA
LogicLevel-Low:
0.75V ~ 1.5V
LogicLevel-High:
1.75V ~ 3.5V
MaxPropagationDelay@VMaxCL:
10.6ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74LV14ADR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LV14ADR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LV14ADR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LV14ADR information

Views：

SN74LV14ADR Typical application Circuitry

SN74LV14ADR

SN74LV14ADR is a chip that functions as a hex schmitt-trigger inverter. It's used in digital electronics for signal conditioning, specifically to transform an input signal into a cleaner, more defined output signal. This capability makes it especially useful in environments with noisy signals.

Application Scenarios and Parameter Features

Application Scenarios: The SN74LV14ADR finds applications in signal processing, wave-shaping, debouncing switches, and in digital circuits that require clean edge transitions. It's also used in generating precise timing pulses and in circuits where input signals are slow or noisy.

Parameter Features:

1. Wide Operating Voltage Range: Works across a voltage range of 2V to 5.5V, allowing for flexibility in different voltage environments.

2. Schmitt-Trigger Action: Provides noise immunity and transforms slowly changing input signals into sharply defined jitter-free output signals.

3. Low Power Consumption: Ideal for energy-efficient applications.

4. Hex Inverter Configuration: Contains six inverters in one package, which is efficient for compact circuit designs.

Specific Application Example: Debouncing a Push Button

In a scenario where a push button is used to trigger an event in a digital circuit, the SN74LV14ADR can be used to debounce the signal.

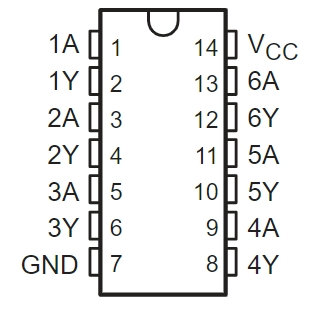

Circuit Connection Details:

1. Power Supply: Connect the VCC pin (pin 14) of SN74LV14ADR to a suitable power supply, say 5V.

2. Grounding: Connect the GND pin (pin 7) to the ground.

3. Input from Push Button: Connect the push button to one of the input pins, for example, pin 1. The other terminal of the push button is connected to the ground.

4. Output to Digital Circuit: The corresponding output pin, pin 2 in this case, will provide a clean, debounced signal to the digital circuit (like a microcontroller).

Design Considerations

1. Input Voltage Levels: Ensure that the input signals do not exceed the SN74LV14ADR's voltage range.

2. Output Load: Be mindful of the load connected to the output pins, which should not exceed the chip's maximum current ratings.

3. Signal Characteristics: Consider the characteristics of the input signal, such as rise and fall times, to ensure effective debouncing.

4. Environmental Factors: Factors like ambient temperature should be considered, as they can impact the performance of the SN74LV14ADR.

Using the SN74LV14ADR to debounce a push button demonstrates its effectiveness in refining signal quality, a key aspect in reliable digital system operations.
