Texas Instruments SN74LS245N

Part No.:: SN74LS245N

Manufacturer:: Texas Instruments

Package:: 20-DIP (0.300, 7.62mm)

Datasheet:: SN74LS245N.pdf

Description:: IC TXRX NON-INVERT 5.25V 20DIP

In Stock:: 3940

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LS245N Specifications

Package/Case:
20-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
74LS
ProductStatus:
Active
LogicType:
Transceiver, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
15mA, 24mA
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Through Hole

SN74LS245N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LS245N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LS245N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LS245N information

Views：

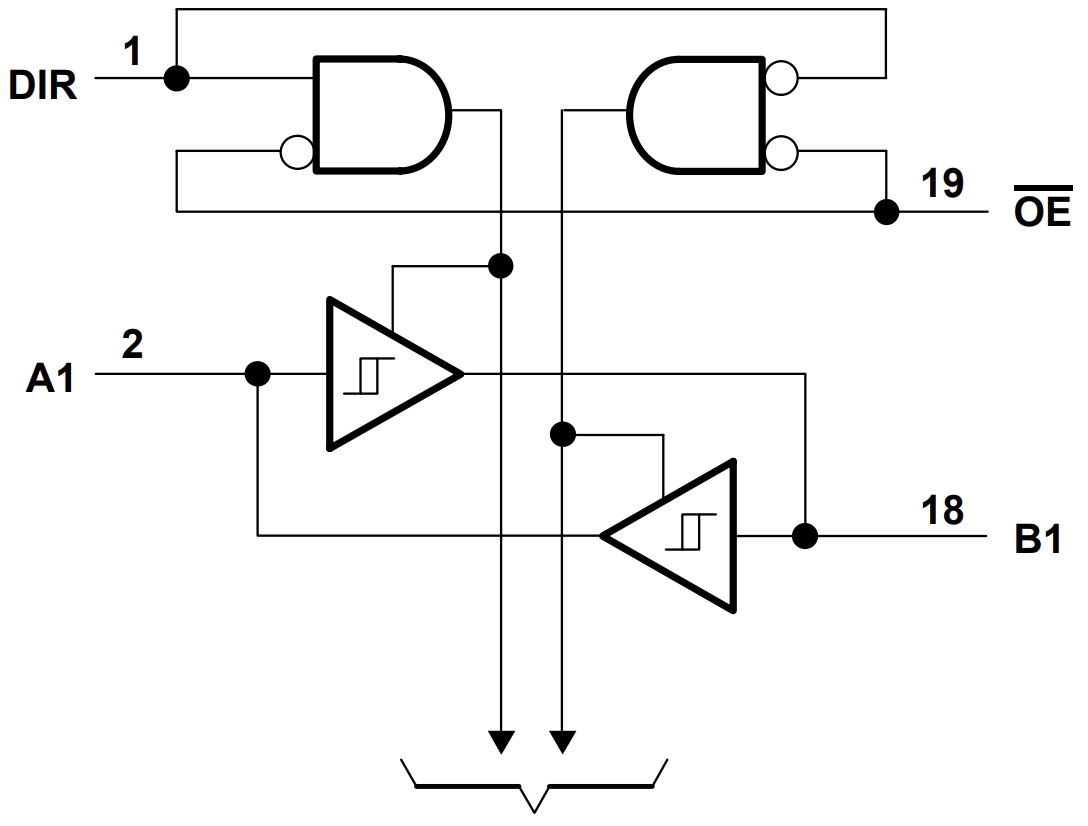

SN74LS245N Typical application Circuitry

SN74LS245N

An integrated circuit that is extensively used in electronics is the SN74LS245N. Let's delve into its functionality, applications, parameter features, and an example of a specific circuit implementation.

Functionality of SN74LS245N:

The SN74LS245N is primarily a bus transceiver chip. Its purpose is to facilitate data communication on a bus in both directions. This chip belongs to the 74LS family, indicating that it uses low-power Schottky technology. Its primary function is to allow data transfer from the bus to a line or from a line to a bus, depending on the direction control input.

Applications of SN74LS245N:

This chip is commonly used in scenarios where data needs to be transferred between two buses or between a bus and a peripheral device. Common applications include:

1. Data communication between different subsystems within a larger digital system.

2. Microprocessor-based systems, where it can be used to connect the microprocessor to various peripherals or memory components.

3. Interface applications, acting as a bridge between mismatched bus types or voltages.

Parameter Features:

- Voltage Range: Typically operates at a voltage range of 4.75V to 5.25V.

- Bidirectional Data Paths: Features 8 parallel data paths.

- Direction Control and Enable Control: These inputs control the direction of data flow and enable/disable the transceiver.

Example Circuit Implementation:

Let's consider a scenario where SN74LS245N is used to interface a microprocessor with a memory module.

1. Direction Control (Pin 1): Connect this to a control line from the microprocessor to set the data flow direction.

2. Enable Control (Pin 19): Connect to the microprocessor's enable signal to control the operational state of the transceiver.

3. Data Pins (Pins 2-9 and 18-11): Connect pins 2-9 to the microprocessor data bus and pins 18-11 to the memory data bus.

4. Ground (Pin 10) and Vcc (Pin 20): Connect to the system's power supply.

Its goal is to make data transfer on a bus easier in both directions.

Design Considerations:

When designing circuits with the SN74LS245N, consider the following:

1. Voltage Compatibility: Verify that the system's other components can tolerate the voltage levels.

2. Timing Requirements: Synchronize the enable and direction control signals with the system's clock.

3. Signal Integrity: Minimize noise and interference, especially in high-speed applications.

4. Thermal Management: Ensure adequate cooling if the chip is operated near its maximum rated power.

Incorporating the SN74LS245N in a circuit requires careful consideration of its characteristics and the system's requirements to ensure optimal performance.
