Name: SN74LS244NSR
Brand: Texas Instruments
SKU: SN74LS244NSR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LS244NSR

Part No.:: SN74LS244NSR

Manufacturer:: Texas Instruments

Package:: 20-SOIC (0.209, 5.30mm Width)

Datasheet:: SN74LS244NSR.pdf

Description:: IC BUFFER NON-INVERT 5.25V 20SO

In Stock:: 6283

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LS244NSR Specifications

Package/Case:
20-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LS
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
4
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
15mA, 24mA
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

SN74LS244NSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LS244NSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LS244NSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LS244NSR information

Views：

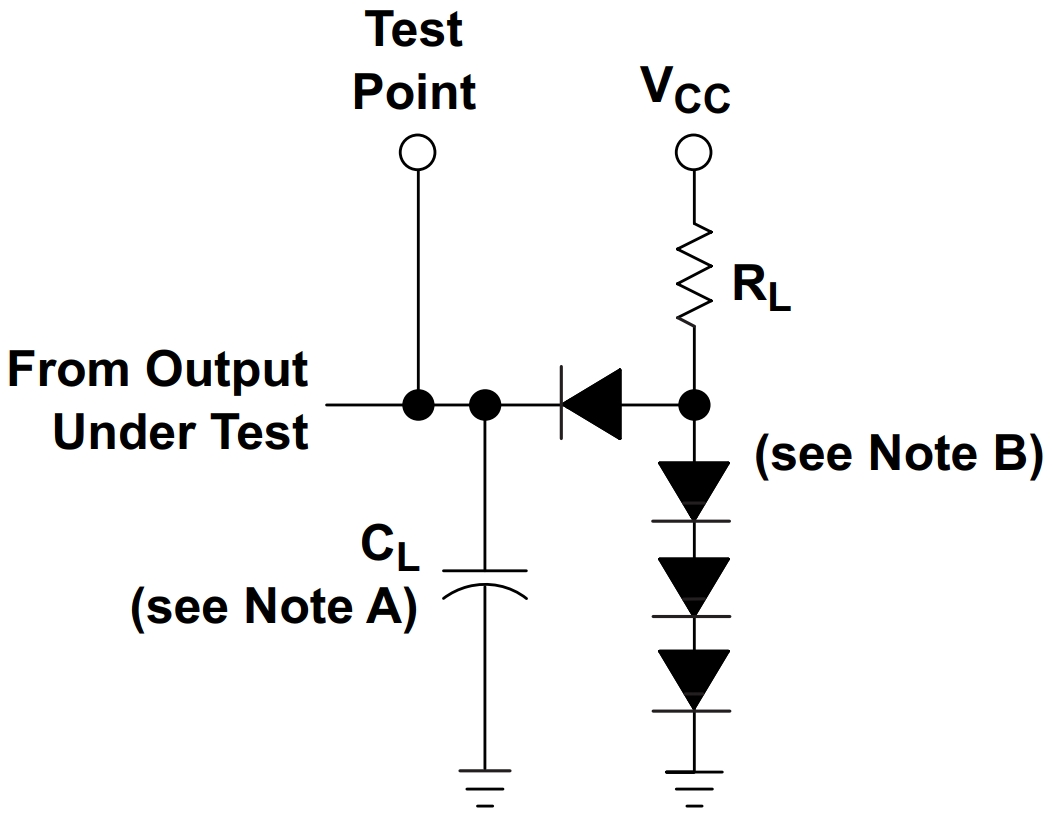

SN74LS244NSR Typical application Circuitry

SN74LS244NSR

The integrated circuit known as an octal buffer/line driver with 3-state outputs is the SN74LS244NSR. This chip is part of the 74LS (Low-power Schottky) logic family, which is known for its low power consumption and relatively high speed.

Applications of SN74LS244NSR:

The SN74LS244NSR is typically used in situations where signal buffering is necessary. This can include:

1. Data Bus Management: It can drive a data bus, allowing multiple devices to connect without risking data corruption.

2. Signal Isolation: Helps in isolating the input from the output, protecting sensitive components.

3. Driving Heavy Loads: Capable of driving loads that require higher current than what the preceding circuit can provide.

Principal attributes - Two-in-one package: is packaged in a typical integrated circuit.

- Three-State Results: permits three possible states for the outputs: high, low, or high-impedance.

- Low Power Consumption: As part of the LS series, it consumes less power compared to regular TTL devices.

Circuit Connection Example: Data Bus Interface:

Let's consider a specific application scenario where the SN74LS244NSR is used to interface a microcontroller with a data bus.

1. Connections:

- Vcc (Pin 20): Connect to +5V power supply.

- GND (Pin 10): Connect to ground.

- Input Pins (1A-4A, 2A-4A on Pins 2, 4, 6, 8, 18, 16, 14, 12 respectively): Connect these to the microcontroller's output pins.

- Output Pins (1Y-4Y, 2Y-4Y on Pins 3, 5, 7, 9, 19, 17, 15, 13 respectively): Connect these to the data bus lines.

2. Enable Pins (1G on Pin 1 and 2G on Pin 19): These are active low. Connect them to the control lines from the microcontroller to enable/disable the buffer.

3. Usage in Circuit:

- When the microcontroller needs to send data to the bus, it will make the enable pins low, turning on the buffer.

- The data from the microcontroller will pass through the SN74LS244NSR to the data bus.

4. Considerations:

- Impedance Matching: Ensure the output impedance of the buffer matches the data bus.

- Timing: Synchronize the enable signals with the data signals to prevent data corruption.

Design-Related Issues:

The following factors should be taken into account when designing a circuit with the SN74LS244NSR:

- Power Supply Stability: Ascertain a steady 5V supply.

- Heat Dissipation: Although it's a low-power device, proper heat dissipation is important in high-frequency applications.

- Signal Integrity: Minimize noise and crosstalk, especially in high-speed applications.

Using the SN74LS244NSR in your design involves understanding its capabilities, especially its 3-state outputs and the logic levels it operates at. This understanding is critical for ensuring reliable operation in your application, whether it's for data bus management, signal isolation, or driving heavy loads.
