What is the Additional Feature ?

Name: SN74LS06DRE4
Brand: Texas Instruments
SKU: SN74LS06DRE4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LS06DRE4

Part No.:: SN74LS06DRE4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74LS06DRE4.pdf

Description:: IC INVERTER OPEN 6CH 1-IN 14SOIC

In Stock:: 2793

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LS06DRE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74LS
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Open Collector
Voltage-Supply:
4.75V ~ 5.25V
Current-Quiescent(Max):
-
Current-OutputHighLow:
-, 40mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
20ns @ 5V, 15pF
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

SN74LS06DRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LS06DRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LS06DRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LS06DRE4 information

Views：

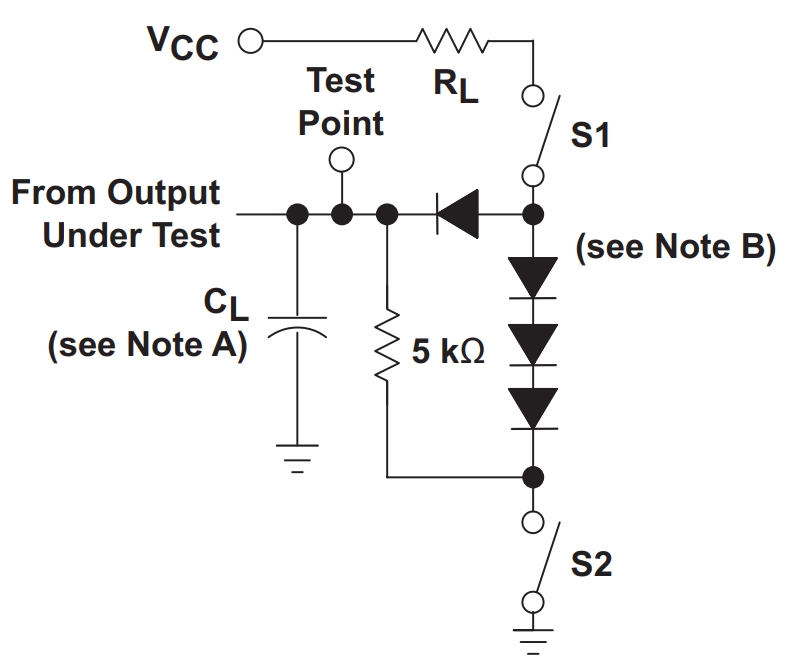

SN74LS06DRE4 Typical application Circuitry

SN74LS06DRE4

The SN74LS06DRE4 is a hex inverter buffer/driver with high-voltage open-collector outputs, part of the 74LS logic family. It's designed for interfacing TTL logic to higher voltage levels and is particularly useful for driving loads that require higher voltage and current than the TTL outputs can provide directly. The open-collector outputs require pull-up resistors to function correctly.

Application Scenario: Interfacing a Microcontroller with a High-Voltage LED Matrix

In this scenario, the SN74LS06DRE4 is used to interface a microcontroller with a high-voltage LED matrix, enabling control of individual LEDs without overloading the microcontroller's output pins.

Circuit Connection Strategy

1. Microcontroller Output Connection

- Connect the microcontroller's output signals to the input pins (1A to 6A; Pins 1, 3, 5, 9, 11, 13) of SN74LS06DRE4.

- Ensure Compatibility: Confirm that the microcontroller's output levels match the input levels of SN74LS06DRE4.

2. LED Matrix Interface

- Connect the anodes of the LEDs in the matrix to a suitable power supply (matching the LED voltage requirements).

- Connect the cathodes of the LEDs to the corresponding output pins (1Y to 6Y; Pins 2, 4, 6, 8, 10, 12) of SN74LS06DRE4.

- Current Limiting: To stop excessive current flow, include current-limiting resistors with every LED.

3. Power Supply Configuration

- Connect VCC (Pin 14) to the microcontroller's power supply (usually 5V) and GND (Pin 7) to the system ground.

- Stable Power Supply: Use decoupling capacitors near the power pins to ensure a stable power supply for SN74LS06DRE4.

4. Proper Grounding and Decoupling

- Noise Reduction: Develop a solid ground plane and place decoupling capacitors at the power pins to minimize noise and stabilize the operation of SN74LS06DRE4.

Design Parameters

When incorporating SN74LS06DRE4 into a circuit, consider the following key factors:

1. Voltage Level Compatibility

- Check to see if the output levels of the microcontroller and the SN74LS06DRE4 input levels are compatible.

2. Load Driving Capability

- Confirm that SN74LS06DRE4 can adequately drive the LED matrix, considering both the voltage and current requirements.

3. Heat Dissipation

- Assess the heat generated by SN74LS06DRE4 when driving the LED matrix, and implement heat dissipation methods if necessary.

4. Signal Integrity

- Optimize the circuit layout to maintain signal integrity, employing proper routing, shielding, and filtering to protect against noise and interference.

5. Power Supply Reliability

- Ensure a stable and clean power supply to SN74LS06DRE4, as fluctuations can impact performance and reliability.

By addressing these considerations and leveraging the operational features of SN74LS06DRE4, engineers can effectively use this hex inverter buffer/driver to interface microcontrollers with high-voltage loads such as an LED matrix, ensuring robust performance and system reliability.
