Name: SN74LS06DR
Brand: Texas Instruments
SKU: SN74LS06DR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74LS06DR

Part No.:: SN74LS06DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74LS06DR.pdf

Description:: IC INVERTER OPEN 6CH 1-IN 14SOIC

In Stock:: 1768

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LS06DR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LS
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Open Collector
Voltage-Supply:
4.75V ~ 5.25V
Current-Quiescent(Max):
-
Current-OutputHighLow:
-, 40mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
20ns @ 5V, 15pF
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

SN74LS06DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LS06DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LS06DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LS06DR information

Views：

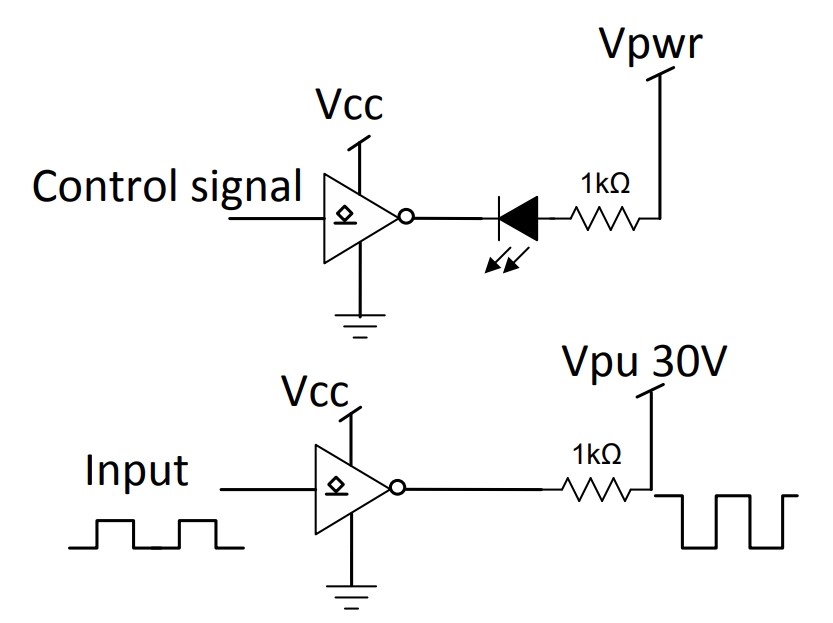

SN74LS06DR Typical application Circuitry

SN74LS06DR

The SN74LS06DR is a hex inverter buffer/driver with high-voltage open-collector outputs. It's designed to interface between different voltage levels, specifically for driving high-voltage or high-current loads such as relays, solenoids, LED displays, and other peripheral loads from TTL-level logic.

Application Scenario: Driving Multiple LEDs from a Microcontroller

In this scenario, SN74LS06DR is used to drive multiple LEDs from a microcontroller, allowing for higher voltage operation and isolating the microcontroller from potential damage due to excessive current draw.

Circuit Connection Strategy

1. Microcontroller Output Connection

- Connect the microcontroller's output signals to the input pins (1A to 6A; Pins 1, 3, 5, 9, 11, 13) of SN74LS06DR.

- Ensure Compatibility: Confirm that the microcontroller's output levels are compatible with the input levels of SN74LS06DR.

2. LED Interface

- Connect the anodes of the LEDs to a suitable power supply (higher than the microcontroller's operating voltage).

- Connect the cathodes of the LEDs to the corresponding output pins (1Y to 6Y; Pins 2, 4, 6, 8, 10, 12) of SN74LS06DR.

- Current Limiting: To stop excessive current flow, connect current-limiting resistors in series with each LED.

3. Configuration of the Power Supply

- Attach Pin 14 (VCC) to the power supply of the microcontroller, which is typically 5V, and Pin 7 (GND) to the system ground.

- Stable Operation: To provide a steady power supply for the SN74LS06DR, use decoupling capacitors near the power pins.

4. Proper Grounding and Decoupling

- Noise Reduction: Develop a solid ground plane and place decoupling capacitors at the power pins to minimize noise and stabilize the operation of SN74LS06DR.

Design Parameters

When incorporating SN74LS06DR into a circuit, consider the following key factors:

1. Voltage Level Compatibility

- Ensure that the microcontroller's output levels are compatible with the input levels of SN74LS06DR.

2. Load Driving Capability

- Confirm that SN74LS06DR can adequately drive the LEDs, considering the voltage and current requirements.

3. Heat Dissipation

- Assess the heat generated by SN74LS06DR, especially when driving multiple LEDs, and implement heat dissipation methods if necessary.

4. Signal Integrity

- Optimize the circuit layout to ensure signal integrity, employing proper routing, shielding, and filtering to protect against noise and interference.

5. Power Supply Reliability

- Ensure a stable and clean power supply to SN74LS06DR, as fluctuations can impact performance and reliability.

By addressing these considerations and leveraging the operational capabilities of SN74LS06DR, engineers can effectively use this hex inverter buffer/driver to interface microcontrollers with high-voltage peripheral loads such as LEDs, ensuring robust performance and system reliability.
