Texas Instruments SN74LS06D

Part No.:: SN74LS06D

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74LS06D.pdf

Description:: IC INVERTER OPEN 6CH 1-IN 14SOIC

In Stock:: 6281

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74LS06D Specifications

Packaging:
Tube
Series:
74LS
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Open Collector
Voltage-Supply:
4.75V ~ 5.25V
Current-Quiescent(Max):
-
Current-OutputHighLow:
-, 40mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
20ns @ 5V, 15pF
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

SN74LS06D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74LS06D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74LS06D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74LS06D information

Views：

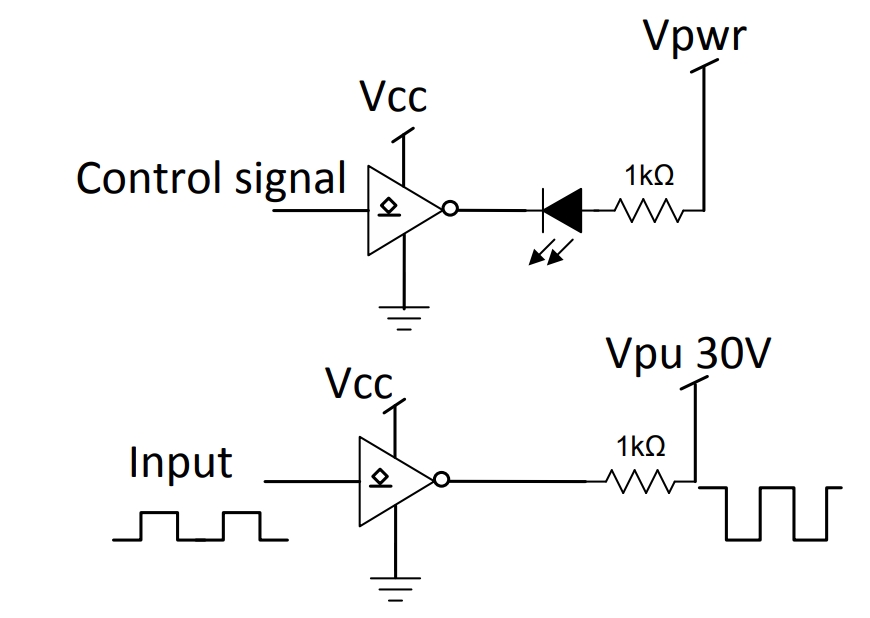

SN74LS06D Typical application Circuitry

SN74LS06D

The SN74LS06D is a hex inverter buffer/driver with high-voltage open-collector outputs. It's part of the 74LS family, designed for interfacing between TTL logic levels and higher voltage levels. It's particularly useful for driving devices that require a higher voltage or current than TTL outputs can directly supply. The open-collector outputs facilitate wired-OR logic configurations and allow the chip to interface with various voltage levels.

Application Scenario: Driving a Seven-Segment LED Display from a Microcontroller

In this scenario, SN74LS06D is used to drive a seven-segment LED display from a microcontroller, ensuring that the higher current and voltage requirements of the LED display are met while protecting the microcontroller from excessive current draw.

Circuit Connection Strategy

1. Microcontroller Output Connection

- Connect the microcontroller's output signals to the input pins (1A to 6A; Pins 1, 3, 5, 9, 11, 13) of SN74LS06D.

- Compatibility Check: Confirm that the microcontroller's output levels are compatible with the input levels of SN74LS06D.

2. Seven-Segment LED Display Interface

- Connect the LED segments to a suitable power supply (matching the LED voltage requirements).

- Connect the other ends of the LED segments to the corresponding output pins (1Y to 6Y; Pins 2, 4, 6, 8, 10, 12) of SN74LS06D.

- Current Limiting: Include current-limiting resistors with each LED segment to prevent excessive current flow.

3. Power Supply Configuration

- Connect VCC (Pin 14) to the microcontroller's power supply (usually 5V) and GND (Pin 7) to the system ground.

- Stable Power Supply: Use decoupling capacitors near the power pins to ensure a stable power supply for SN74LS06D.

4. Proper Grounding and Decoupling

- Noise Minimization: Implement a solid ground plane and place decoupling capacitors at the power pins to minimize noise and stabilize the operation of SN74LS06D.

Design Parameters

When integrating SN74LS06D into a circuit, consider the following crucial factors:

1. Voltage Level Compatibility

- Ensure that the microcontroller's output levels are compatible with the input levels of SN74LS06D to prevent logic level mismatches.

2. Load Driving Capability

- Confirm that SN74LS06D can adequately drive the LED segments, considering both the voltage and current requirements.

3. Heat Dissipation

- Assess the heat generated by SN74LS06D when driving the LED display, and implement heat dissipation methods if necessary.

4. Signal Integrity

- Optimize the circuit layout to ensure signal integrity, employing proper routing, shielding, and filtering to protect against noise and interference.

5. Power Supply Reliability

- Ensure a stable and clean power supply to SN74LS06D, as fluctuations can impact performance and reliability.

By addressing these considerations and utilizing the operational capabilities of SN74LS06D, engineers can effectively use this hex inverter buffer/driver to interface microcontrollers with high-voltage or high-current loads such as seven-segment LED displays, ensuring robust performance and system reliability.
