Texas Instruments SN74HC574NG4

Part No.:: SN74HC574NG4

Manufacturer:: Texas Instruments

Package:: 20-PDIP

Datasheet:: SN74HC574NG4.pdf

Description:: IC FF D-TYPE SNGL 8BIT 20DIP

In Stock:: 3614

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC574NG4 Specifications

Packaging:
Tube
Series:
74HC
ProductStatus:
Discontinued at Mosen
Function:
Standard
Type:
D-Type
OutputType:
Tri-State, Non-Inverted
NumberofElements:
1
NumberofBitsperElement:
8
ClockFrequency:
40 MHz
MaxPropagationDelay@VMaxCL:
31ns @ 6V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Iq):
8 µA
InputCapacitance:
3 pF
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Through Hole

SN74HC574NG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC574NG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC574NG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC574NG4 information

Views：

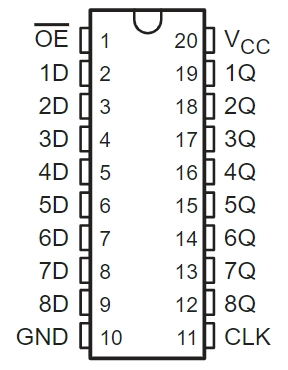

SN74HC574NG4 Typical application Circuitry

SN74HC574NG4

The integrated circuit known as SN74HC574NG4 is a D-type flip-flop with three-state outputs that is triggered by octal edges. It is primarily used for temporary data storage, data transferring, and as an interface in digital systems.

Application Scenarios and Parameter Features

Application Scenarios: The SN74HC574NG4 is suitable for use in data buffering systems, digital signal processing, interfacing mismatched data buses, and in systems requiring temporary data storage or latching.

Parameter Features:

1. Operating Voltage Range: Typically functions between 2V and 6V, compatible with various digital logic levels.

2. 3-State Outputs: Provides a high impedance state that enables bus interfacing and permits numerous devices to share a bus line without interfering with one another.

3. Octal Configuration: Equipped with eight D-type flip-flops, it can manage eight bits of data simultaneously.

4. Edge-Triggered Data Capture: Captures data on the rising edge of the clock signal, which aids in synchronizing data in digital systems.

Specific Application Example: Data Buffering in a Microcontroller-Based System

In a microcontroller-based system, SN74HC574NG4 can be employed to buffer data between the microcontroller and another subsystem, like a high-speed digital bus.

Circuit Connection Details:

1. Power Supply: Connect the VCC pin (pin 20) of SN74HC574NG4 to a 5V power source.

2. Grounding: Ground the GND pin (pin 10).

3. Microcontroller Data Output: Link the microcontroller's data outputs to the data input pins (pins 2 to 9) of the SN74HC574NG4.

4. Clock Input: The clock input pin (pin 11) should be connected to a clock signal, which coordinates the data capturing process.

5. Output Enable: Connect the output enable pin (pin 1) to a control signal that activates or deactivates the data outputs.

6. Data Output to Subsystem: The data output pins (pins 18, 17, 16, 15, 14, 13, 12, 19) of the SN74HC574NG4 can be connected to the inputs of a high-speed digital bus or another subsystem.

Design-Related Issues

1. Compatibility with Voltage Levels: Verify that the microcontroller's and other connecting devices' voltage levels are appropriate for the SN74HC574NG4.

2. Timing of the Clock Signal: The clock signal must be well-timed to ensure effective data capture and release.

3. Loading on Outputs: The connected load on the outputs should be within the specified limits of the SN74HC574NG4.

4. Signal Integrity Concerns: In high-speed data transfer scenarios, consider the impact of signal integrity on the overall performance.

Using the SN74HC574NG4 in a microcontroller-based system as a data buffer exemplifies its role in managing data transfer efficiently, a key aspect of modern digital electronics.
