Texas Instruments SN74HC245DWRE4

Part No.:: SN74HC245DWRE4

Manufacturer:: Texas Instruments

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: SN74HC245DWRE4.pdf

Description:: IC TXRX NON-INVERT 6V 20SOIC

In Stock:: 3734

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC245DWRE4 Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
Transceiver, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
7.8mA, 7.8mA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74HC245DWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC245DWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC245DWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC245DWRE4 information

Views：

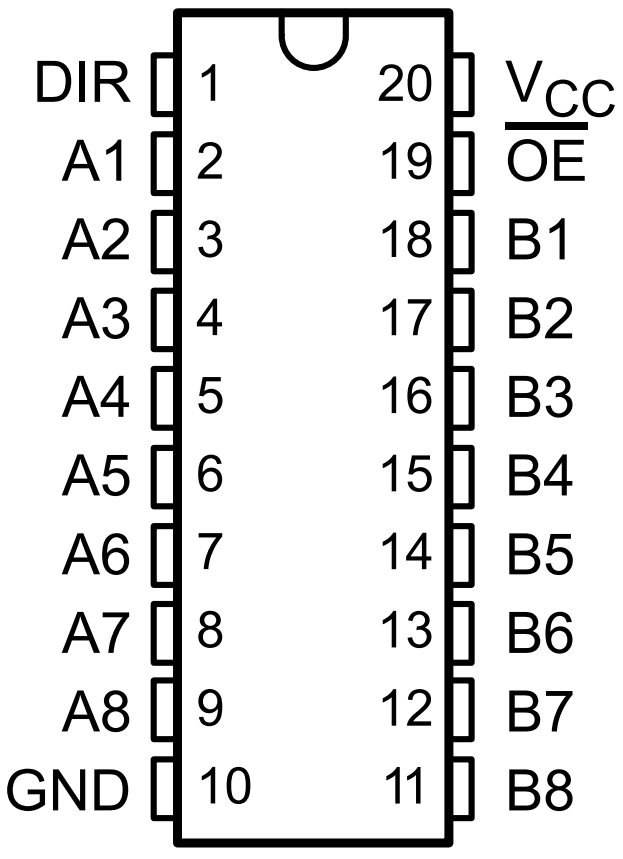

SN74HC245DWRE4 Typical application Circuitry

SN74HC245DWRE4

The SN74HC245DWRE4 is a chip with an octal bus transceiver and 3-state outputs. It is commonly used for bidirectional data transfer between two buses, making it a versatile component in digital electronics. Here, we will explore its functionality, typical applications, key parameter features, and provide a detailed circuit example.

Functionality:

The SN74HC245DWRE4 acts as a buffer and level shifter for bidirectional data transfer. It has eight data input/output pins (A1-A8 and B1-B8) that can connect two buses, A and B. The direction of data flow is controlled by the direction control pin, typically labeled DIR.

Typical Applications:

1. Parallel to Serial Data Conversion: The SN74HC245DWRE4 can be used to convert parallel data from a microcontroller or FPGA into serial data for transmission over a serial communication bus, such as SPI or UART.

2. Voltage Level Shifting: It can interface between devices operating at different voltage levels, ensuring compatibility and safe data transfer.

3. Bus Isolation: In systems with multiple buses, this chip can isolate and buffer data between them, preventing bus contention.

Parameter Features:

- Supply Voltage (VCC): Typically operates at 2V to 6V, making it compatible with a wide range of voltage levels.

- Output Drive Capability: Can drive outputs up to 6mA at 5V, ensuring strong signal levels.

- Propagation Delay (tPD): The time it takes for a change in input to affect the output, typically around 10ns.

- Operating Temperature: This device can function between -40°C and 85°C.

Example Circuit: Converting Parallel to Serial Data:

In this example, we'll use the SN74HC245DWRE4 to convert parallel data to serial data for communication with an SPI device. This is a common application in microcontroller projects.

Circuit Diagram:

- Connect the A1-A8 pins to the parallel data source (e.g., microcontroller GPIO pins).

- Connect the B1-B8 pins to the SPI master's data output.

- Connect the DIR pin to the microcontroller's control pin to select data direction (high for A to B, low for B to A).

- Attach VCC and GND to the proper ground and power supply connections.

Taking into account:

1. Voltage Levels: Verify that the SPI device's and the parallel data source's voltage levels are within the voltage range of the SN74HC245DWRE4.

2. Signal Integrity: Be mindful of signal integrity, particularly in cases where high-frequency signals are used in the data transfer. Signal routing and grounding must be done correctly.

3. Control Signal: Properly control the DIR pin to select the desired data direction, ensuring data flows in the correct direction.

4. Power Supply: Provide a stable power supply voltage within the specified range to the chip.

In summary, the SN74HC245DWRE4 is a versatile chip for bidirectional data transfer and voltage level shifting in digital circuits. It finds applications in various scenarios where data needs to be transferred between different buses or devices. When designing a circuit using this chip, it's crucial to consider voltage compatibility, signal integrity, control signals, and power supply for reliable operation.
