Texas Instruments SN74HC14PWRG4

Part No.:: SN74HC14PWRG4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP

Datasheet:: SN74HC14PWRG4.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 3320

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC14PWRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC14PWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC14PWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC14PWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC14PWRG4 information

Views：

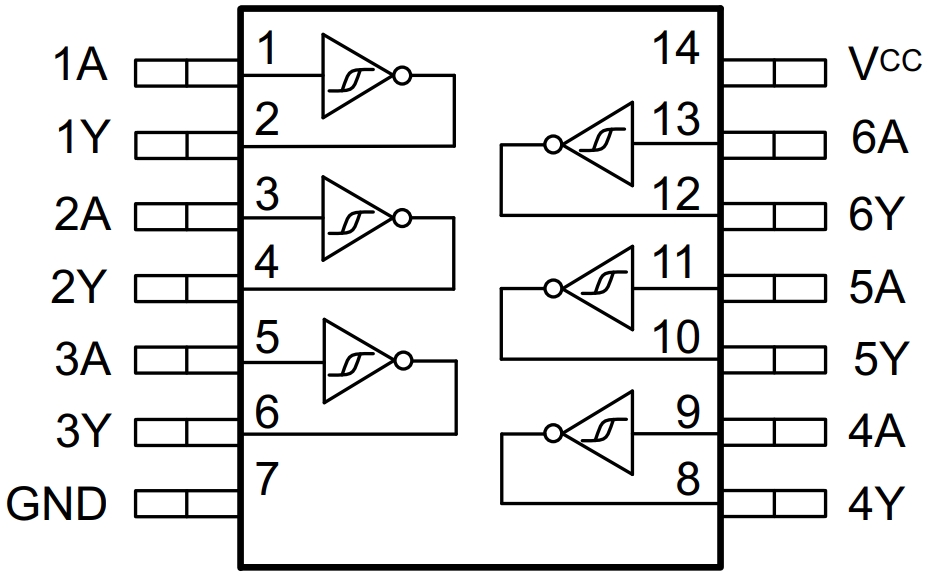

SN74HC14PWRG4 Typical application Circuitry

SN74HC14PWRG4

The SN74HC14PWRG4 is a type of integrated circuit known for its specific functionality and applications. Here's a detailed explanation of its features, applications, and a specific circuit implementation:

Functionality of SN74HC14PWRG4:

SN74HC14PWRG4 is primarily a Hex Schmitt-Trigger Inverter. This means it contains six independent inverters with Schmitt-trigger action on each input. The Schmitt-Trigger feature allows the chip to transform an irregular input signal into a square wave, making it useful for signal conditioning, particularly in environments with a lot of electrical noise.

Application Scenarios:

Signal De-noising: One common application of the SN74HC14PWRG4 is in signal de-noising. It's used to clean up noisy signals in digital circuits, particularly in environments with high levels of background electrical noise.

Voltage Range: Usually runs in the 2V to 6V voltage range. Parameter Characteristics.

- Hysteresis: Exhibits a good level of hysteresis, which enhances its noise immunity.

- Speed: Offers fast propagation and transition times, making it suitable for high-speed applications.

Circuit Implementation: Noise Filtering in Digital Input

Objective: To design a circuit using SN74HC14PWRG4 for noise filtering in a digital input.

1. Connectivity of the Power Supply:

Attach Pin 14 (VCC) to a +5V power source.

GND (Pin 7): Attach to the earth.

2. Connection of the Input Signal:

- Input Signal (Pin 1): Connect the noisy digital input signal to the first inverter's input (Pin 1 of SN74HC14PWRG4).

3. Output Connection:

- Output (Pin 2): The output of the first inverter (Pin 2) gives the de-noised signal.

4. Bypass Capacitor:

- Bypass Capacitor: Place a 0.1 µF capacitor between VCC and GND near the chip to stabilize the power supply.

5. Unused Inputs:

- Grounding Unused Inputs: Ground all unused inputs to prevent them from floating, which can lead to unpredictable behavior.

Design-Related Issues:

A circuit's design should take into account a number of considerations while using SN74HC14PWRG4:

- Power Supply Stability: Make sure the power supply is steady because variations in it can impact performance.

- Input Signal Characteristics: Understand the characteristics of the input signal, especially the noise level and frequency.

- Thermal Management: If used in a high-frequency application, consider the thermal aspects to prevent overheating.

- Layout: Pay attention to the layout, especially the grounding and routing of signals to minimize additional noise.

In summary, the SN74HC14PWRG4 is a versatile hex Schmitt-trigger inverter useful in applications that require signal conditioning and noise filtering.To guarantee optimal performance when designing circuits with this chip, careful consideration of the power supply, signal characteristics, thermal management, and layout is necessary.
