Texas Instruments SN74HC14PWRE4

Part No.:: SN74HC14PWRE4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP

Datasheet:: SN74HC14PWRE4.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 3229

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC14PWRE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74HC
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC14PWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC14PWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC14PWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC14PWRE4 information

Views：

SN74HC14PWRE4 Typical application Circuitry

SN74HC14PWRE4

SN74HC14PWRE4 is a type of integrated circuit known for its specific functionality and applications. Here's a detailed explanation of its features, applications, and a specific application circuit design, all in English with the requested structure and keywords.

The capabilities of SN74HC14PWRE4:

Primarily, SN74HC14PWRE4 is a hex inverter chip equipped with Schmitt-Trigger inputs. This means it contains six independent inverters, each with a Schmitt-Trigger input. These inputs have a built-in hysteresis, making the chip ideal for transforming an irregular or noisy input signal into a clean digital output.

Application Scenarios:

The SN74HC14PWRE4 finds its use in various scenarios, including:

- Signal Conditioning: Due to its hysteresis characteristics, it's used to clean up noisy signals in digital circuits.

- Oscillator Circuits: Commonly used in creating oscillator circuits for generating clock signals.

- Waveform Shaping: Used to shape or modify signal waveforms in digital electronics.

Key Parameters and Features:

The key parameters of SN74HC14PWRE4 include:

- Voltage Range: Typically operates within a voltage range of 2V to 6V.

- Propagation Delay: Features a fast propagation delay, crucial for high-speed digital circuits.

- Hysteresis Voltage: This is a critical parameter that defines the input voltage range for the transition between high and low states.

Specific Application Circuit Design: Signal Conditioning Circuit

Signal Conditioning Circuit Using SN74HC14PWRE4:

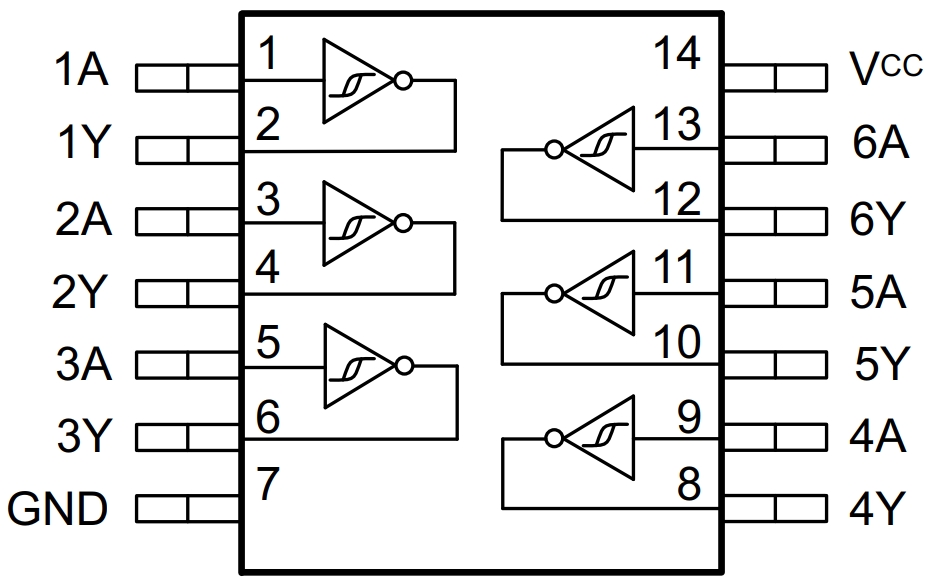

1. Input Connection: Connect the noisy digital input signal to the first inverter's input (Pin 1).

2. Power Supply: Vcc (Pin 14) to the positive rail (e.g., 5V), and GND (Pin 7) to the ground.

3. Output Recovery: Get the conditioned signal from the first inverter's (Pin 2) output.

4. Feedback Loop: Optionally, a feedback resistor can be added between Pin 2 and Pin 1 to adjust the hysteresis level for specific applications.

5. Programming Pins: For programming purposes, typically, pins like Vcc and GND are used to provide power during the programming phase, while the input and output pins are interfaced with a programmer or MCU.

Design-Related Issues:

When creating circuits with SN74HC14PWRE4, it is important to take into account multiple factors:

- Voltage Levels: Ensure that the input and supply voltages are within the chip's specified range.

- Load Capacitance: Be mindful of the capacitive load on each output, as it affects the propagation delay.

- Temperature Range: The chip's performance may vary across different temperature ranges, so consider the environmental conditions of the application.

In conclusion, the SN74HC14PWRE4 is a versatile chip used in various digital applications, particularly where signal conditioning or waveform shaping is required. Understanding its parameters and properly designing the circuit around it is crucial for optimal performance.
