Texas Instruments SN74HC14PWR

Part No.:: SN74HC14PWR

Manufacturer:: Texas Instruments

Package:: 14-TSSOP

Datasheet:: SN74HC14PWR.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 3847

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC14PWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC14PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC14PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC14PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC14PWR information

Views：

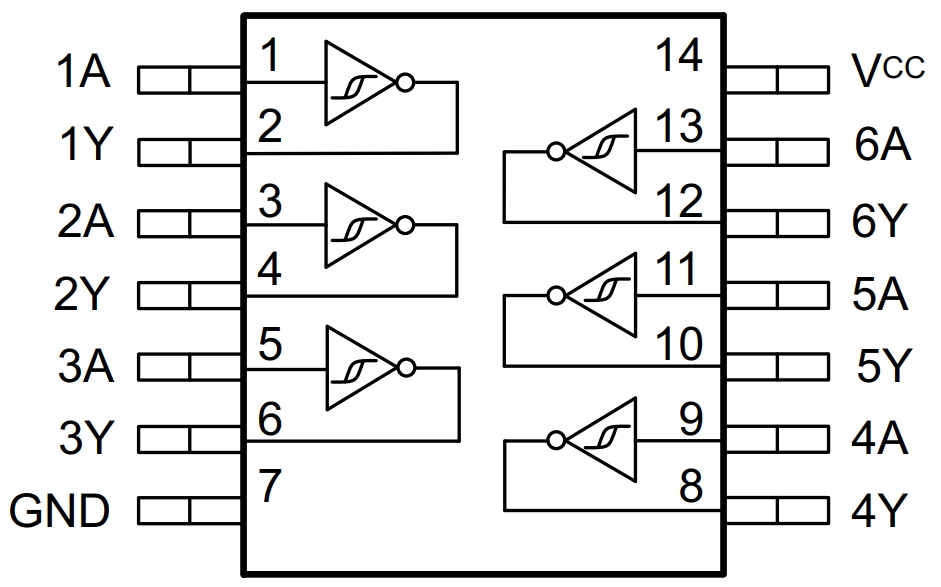

SN74HC14PWR Typical application Circuitry

SN74HC14PWR

The integrated circuit (IC) SN74HC14PWR is well-known for its ability to serve as a hex inverter with Schmitt-Trigger inputs. This IC's distinctive qualities and adaptability make it frequently employed in a variety of applications. Below, I'll detail its functions, applications, parameters, and a specific circuit application, focusing on detailed pin connections and considerations during design.

The way that SN74HC14PWR functions:

Six separate inverters with Schmitt-Trigger inputs make up the SN74HC14PWR. These inputs provide hysteresis, making the IC ideal for transforming noisy or irregular input signals into clean, sharp output signals, commonly used in digital circuits.

Application Scenarios:

This chip finds use in various scenarios, including signal conditioning, noise filtering, pulse shaping, and creating oscillators. Signal integrity is crucial in digital circuits, where one of its main uses is.

Parameter Features:

Key parameters of the SN74HC14PWR include:

- Supply Voltage Range: Typically 2V to 6V, accommodating various digital systems.

- Hysteresis Voltage: Provides noise immunity and clean switching.

- Propagation Delay: Low, ensuring fast response in digital circuits.

Circuit Application: Oscillator Circuit

Let's explore a detailed application of the SN74HC14PWR in an oscillator circuit:

1. Connections for the power supply:

- Attach Pin 14 (Vcc) to a 5V power source.

- Attach Pin 7 (Ground) to the system ground.

2. Oscillator Configuration:

- Feedback Resistor: Connect a resistor between the output (Pin 1) and input (Pin 2) of the first inverter.

- Capacitor: Connect a capacitor from the input (Pin 2) to the ground. This resistor-capacitor (RC) network determines the oscillation frequency.

3. Output Utilization:

- Output (Pin 1): Connect to the input of the next stage or use as a clock signal in digital circuits.

4. Points to Remember When Designing:

- Decoupling Capacitor: To filter out noise, place a 0.1μF capacitor next to the Vcc pin.

- Input Unused Pins: To avoid noise pickup, connect unused input pins to ground.

- RC Network Values: Select the resistor and capacitor values to set the desired oscillation frequency.

In conclusion, the SN74HC14PWR serves as an essential component in digital electronics, offering noise immunity and signal integrity. Its diverse applications, coupled with its simple yet effective operation, make it a popular choice in electronic circuit design. When designing circuits with the SN74HC14PWR, careful consideration of power supply, grounding, and component selection is crucial for optimal performance.
