Texas Instruments SN74HC14NSRE4

Part No.:: SN74HC14NSRE4

Manufacturer:: Texas Instruments

Package:: 14-SO

Datasheet:: SN74HC14NSRE4.pdf

Description:: IC INVERT SCHMITT 6CH 1-IN 14SOP

In Stock:: 2438

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC14NSRE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC14NSRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC14NSRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC14NSRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC14NSRE4 information

Views：

SN74HC14NSRE4 Typical application Circuitry

SN74HC14NSRE4

The SN74HC14NSRE4 is a type of integrated circuit known for its specific functionality and applications. Below is a detailed overview of its functions, application scenarios, parameter features, and a specific application circuit design.

Functionality of SN74HC14NSRE4:

- Logic Inverter: The SN74HC14NSRE4 functions primarily as a Schmitt-trigger inverter. It takes a digital signal input and inverts it, offering a clean, stable output, particularly useful in noisy environments.

Application Scenarios:

- Signal Conditioning: Frequently used in signal conditioning to remove noise from digital signals, making it ideal for use in digital communication systems.

- Oscillator Circuits: Utilized in creating oscillator circuits for generating clock pulses in digital electronics.

Parameter Features:

- High Noise Immunity: Characterized by its high noise immunity, making it reliable in environments with electrical noise.

- Wide Operating Voltage Range: Typically operates across a wide voltage range, accommodating various levels of input voltages.

- Low Power Consumption: Exhibits low power consumption, which is crucial for battery-powered devices.

Circuit Design Example: Creating a Debounce Circuit for a Push Button.

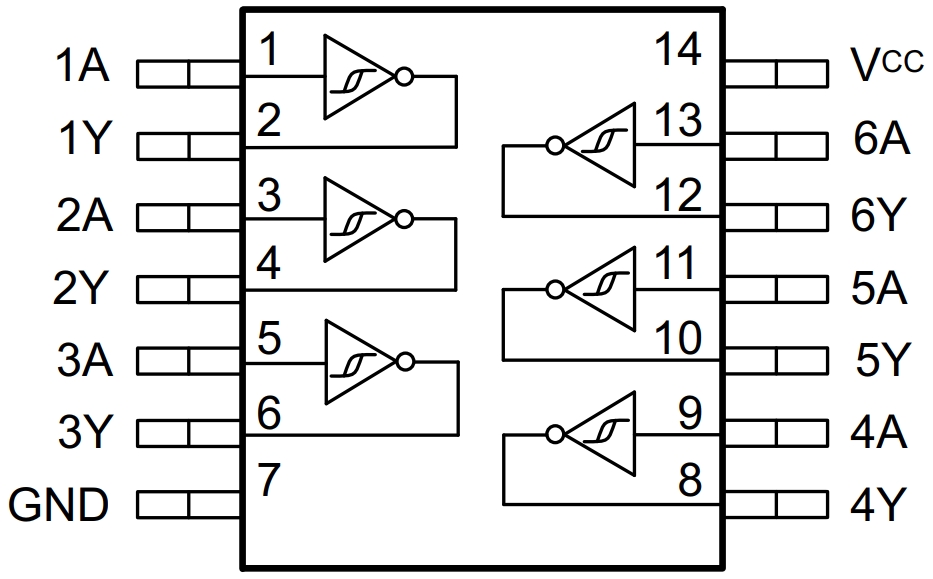

Pin Configuration:

- Vcc (Pin 14): Connect this pin to the power supply.

- GND (Pin 7): Connect to the ground.

- Input Pin (e.g., Pin 1): Connect to the output of the push button.

- Output Pin (e.g., Pin 2): Connect this pin to the input of the subsequent digital circuit.

Circuit Connections:

1. Power Supply Connection: Attach GND to the system ground and Vcc to a 5V power source.

2. Input Signal Conditioning: Connect the push button to Pin 1. You may add a pull-up resistor to ensure a defined logic level when the button is not pressed.

3. Output Utilization: The output from Pin 2 can be directed to other digital circuits like microcontrollers or logic gates.

Considerations in Circuit Design:

- Power Supply Stability: Ensure a stable power supply to prevent unintended oscillations.

- Input Signal Quality: Clean and debounce input signals to avoid false triggering.

- Temperature and ambient Factors: The SN74HC14NSRE4's performance may be impacted by the operating temperature range and ambient factors.

Throughout the design and application of the SN74HC14NSRE4, these key aspects must be considered to ensure efficient and reliable circuit performance. The SN74HC14NSRE4, with its unique features, offers versatility in various electronic applications.
