Texas Instruments SN74HC14N

Part No.:: SN74HC14N

Manufacturer:: Texas Instruments

Package:: 14-PDIP

Datasheet:: SN74HC14N.pdf

Description:: IC INVERT SCHMITT 6CH 1-IN 14DIP

In Stock:: 3318

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC14N Specifications

Packaging:
Bulk,Tube
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

SN74HC14N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC14N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC14N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC14N information

Views：

SN74HC14N Typical application Circuitry

SN74HC14N

The SN74HC14N is a semiconductor device known for its functionality in digital circuits. Below is a detailed explanation of its applications, uses, and specific circuit implementation:

The operation of SN74HC14N is as follows:

The SN74HC14N hex inverter chip has Schmitt-trigger inputs. This indicates that it has six separate inverters, each of which has an input Schmitt-trigger action. The Schmitt-trigger feature of the device makes it perfect for squaring up delayed input transitions by converting an irregular or noisy input signal into a clear, digital output signal.

Application Scenarios:

The SN74HC14N finds use in various digital applications, particularly where noise immunity and line-receiver functions are crucial. Common applications include:

- Signal conditioning (to clean up noisy signals)

- Generating precise, stable square waves (oscillators)

- Logic circuits requiring inverting functions

- Wave-shaping circuits

Parameter Features:

- Supply Voltage (V_CC): 2V to 6V

- Excellent immunity to noise

- Low power consumption

- 10 LSTTL load capacities for the output drive

- The operational temperature range is -40°C to 85°C.

Oscillator Circuit Implementation in Circuit:

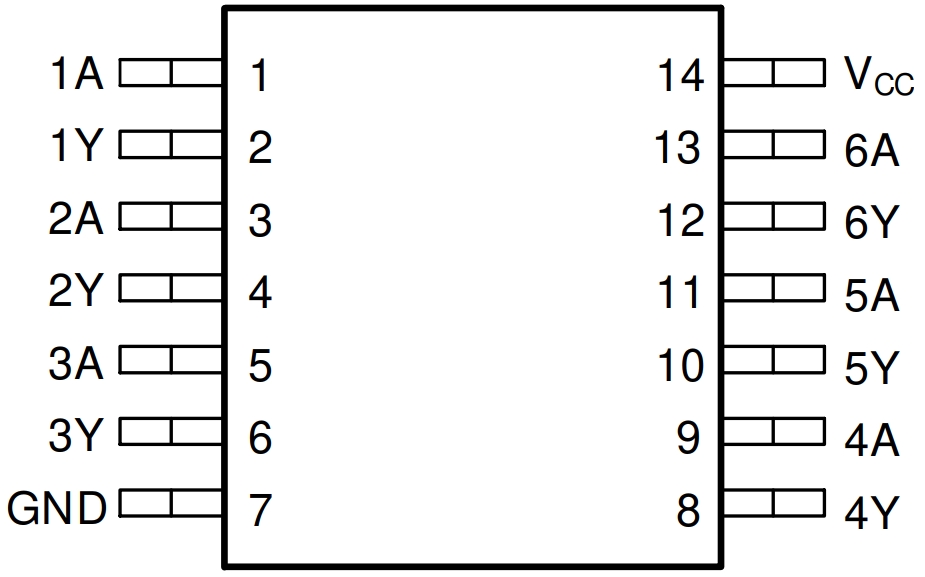

Component Pin Configuration:

Pin 1 is the first inverter's input, and Pin 2 is its output.

- Pin 14 (V_CC, Positive Supply Voltage)

- Pin 7 (GND, Ground)

Circuit Description:

- Supply Voltage Connection: Connect Pin 14 to a 5V power supply and Pin 7 to ground.

- Oscillator Setup: Connect a resistor between Pin 2 (output) and Pin 1 (input) of the first inverter. The value of the resistor, along with a capacitor connected between Pin 1 and ground, will determine the oscillation frequency.

- Output Monitoring: The output can be monitored at Pin 2.

Design Points to Remember:

When building a circuit with the SN74HC14N , consider the following:

- Power Supply Voltage: Ensure it's within the specified range (2V to 6V).

- Input Signal Characteristics: The Schmitt-trigger inputs require careful consideration of the input signal's rise and fall times.

- Load Characteristics: The chip can drive up to 10 LSTTL loads, but the actual load should be evaluated to avoid overloading.

- Temperature Range: Consider the operating environment as the chip's performance can vary with temperature.
