Texas Instruments SN74HC14DRG4

Part No.:: SN74HC14DRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74HC14DRG4.pdf

Description:: IC INV SCHMITT 6CH 1-IN 14SOIC

In Stock:: 3638

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC14DRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.3V ~ 1.2V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
21ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC14DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC14DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC14DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC14DRG4 information

Views：

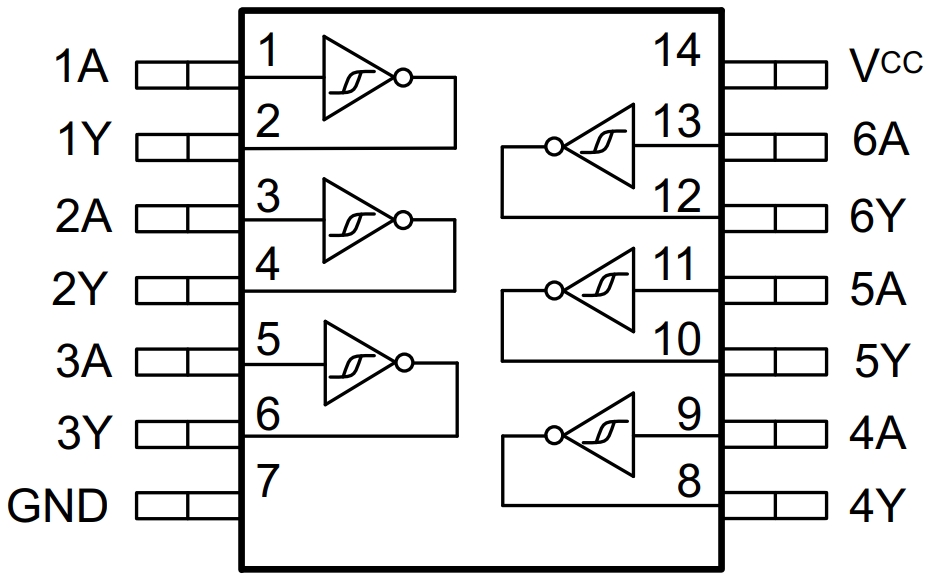

SN74HC14DRG4 Typical application Circuitry

SN74HC14DRG4

The SN74HC14DRG4 is a type of integrated circuit known for its specific functionality and various application scenarios. It possesses unique parameter characteristics that make it suitable for certain electronic designs. Here, we'll explore its features, a specific application scenario, detailed circuit connection method, and considerations for circuit design.

Functionality of SN74HC14DRG4: The SN74HC14DRG4 is a hex inverter chip with Schmitt-Trigger inputs. This means it contains six independent inverters, each with a Schmitt-Trigger input, which allows for noise filtering and stable switching.

Application Scenarios: This chip is commonly used in signal conditioning, noise filtering, pulse shaping, and creating square waves from irregular signals. It's also used in applications requiring logic inversion with a stable threshold.

Parameter Characteristics: Key parameters include a wide operating voltage range, typically from 2V to 6V, high noise immunity, and low power consumption. A hysteresis loop produced by the Schmitt-Trigger action at the input improves noise immunity and converts slowly changing input signals into output signals that are precisely defined and jitter-free.

Particular Use and Circuit Establishment:

Specific Use and Circuit Setup: - Power Supply Connection: Connect Pin 7 (ground) to a +5V power supply and Pin 14 (voltage control) to the ground.

- Input Signal Connection: Connect Pin 1 (the first inverter's input) to the input signal. Ensure the signal's voltage level is compatible with the chip's operating voltage range.

- Output Monitoring: Connect Pin 2 (Output of the first inverter) to an LED (through a current-limiting resistor) to monitor the output.

- Decoupling Capacitor: Place a 0.1 µF decoupling capacitor close to the VCC pin to filter out noise from the power supply.

- Unused Pins: Connect unused input pins directly to the ground to avoid floating inputs, which can cause erratic behavior.

Circuit Design Considerations: When designing circuits with the SN74HC14DRG4, ensure that the input signal levels are within the specified range to prevent damage to the chip. Also, consider the propagation delay, especially in timing-critical applications, and take into account the power dissipation of the entire circuit to avoid overheating.

In summary, the SN74HC14DRG4 is a versatile chip used in various applications that require signal inversion with stable thresholds and noise immunity. For optimum performance, a thorough understanding of its properties and meticulous circuit design are essential.
