lmages are for reference only See Product Specifications

Texas Instruments SN74HC138NSR

Part No.:: SN74HC138NSR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.209, 5.30mm Width)

Datasheet:: SN74HC138NSR.pdf

Description:: IC DECODER/DEMUX 1 X 3:8 16SO

In Stock:: 3523

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC138NSR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Active
Type:
Decoder/Demultiplexer
Circuit:
1 x 3:8
IndependentCircuits:
1
Current-OutputHighLow:
5.2mA, 5.2mA
VoltageSupplySource:
Single Supply
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC138NSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC138NSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC138NSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC138NSR information

Views：

SN74HC138NSR Typical application Circuitry

SN74HC138NSR

The SN74HC138NSR is a high-speed CMOS device designed for various digital applications. This piece focuses on its functionality, application scenarios, parameter features, a specific circuit connection example, and considerations in circuit design. Throughout, the key term "SN74HC138NSR" will be prominently featured.

Functionality: This 3-to-8 line decoder/demultiplexer is called the SN74HC138NSR. It takes three binary input signals and decodes them into one of eight mutually exclusive outputs. This is particularly useful in applications where binary to multiple line decoding is required.

Application Scenarios: A common application of the SN74HC138NSR is in memory chip selection for microprocessor systems. It's used to decode address signals to select a particular memory chip out of several connected to a microprocessor bus.

Parameter Features: This chip operates with a typical voltage range of 2V to 6V, making it compatible with TTL levels. Its low power consumption and good noise immunity make it indispensable for portable and battery-operated devices.

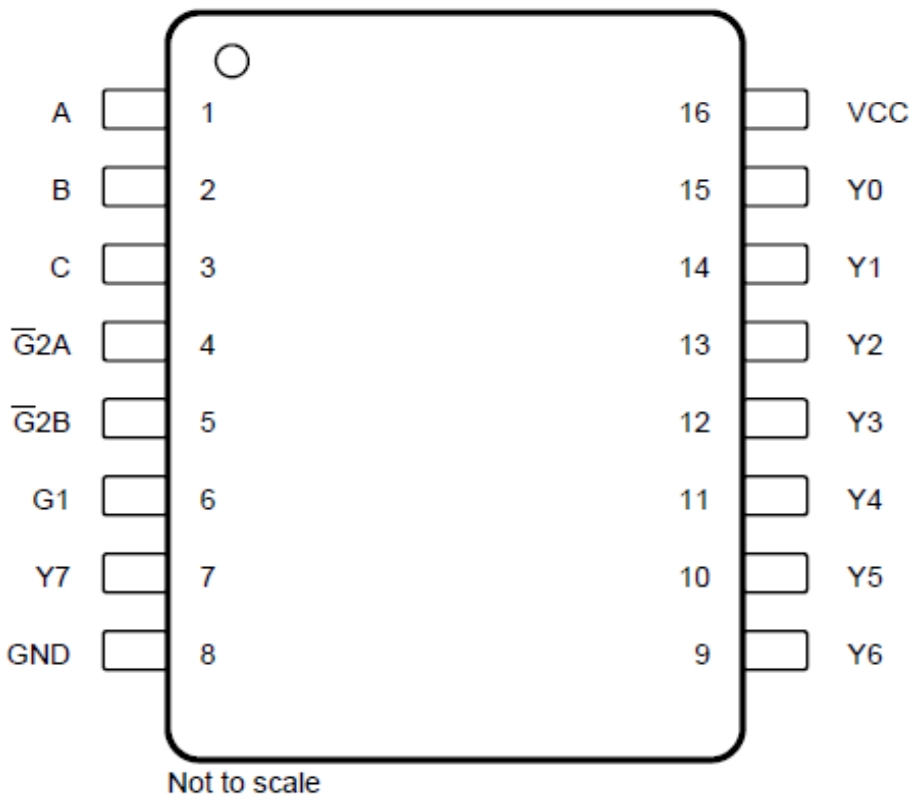

Circuit Connection Example:

- Power Supply Pins: Connect VCC (Pin 16) to a +5V supply, and GND (Pin 8) to ground.

- Input Pins: Connect A0, A1, and A2 (Pins 1, 2, and 3) to the output of the microprocessor or another control logic for address decoding.

- Enable Pins: Connect G1 and G2A (Pins 6 and 4) to ground to enable the device. G2B (Pin 5) should be connected to a logic high level.

- Output Pins: Connect Y0 to Y7 (Pins 15, 14, 13, 12, 11, 10, 9, and 7) to the enable pin of the memory chips or other devices you are controlling.

Design Considerations:

- Input Signal Integrity: Ensure that input signals to A0, A1, and A2 are stable and free from noise to prevent erroneous output.

- Power Supply Stability: Reliable performance depends on a steady power supply.

- Output Load: Consider the load on each output pin; excessive load can affect the performance and reliability of the outputs.

In conclusion, the SN74HC138NSR is a versatile and efficient chip suitable for a wide range of digital decoding applications. Its low power consumption, high noise immunity, and wide operating voltage range make it an excellent choice for integrated digital systems.
