Texas Instruments SN74HC138DR

Part No.:: SN74HC138DR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: SN74HC138DR.pdf

Description:: IC DECODER/DEMUX 1X3:8 16SOIC

In Stock:: 385

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC138DR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
Type:
Decoder/Demultiplexer
Circuit:
1 x 3:8
IndependentCircuits:
1
Current-OutputHighLow:
5.2mA, 5.2mA
VoltageSupplySource:
Single Supply
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC138DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC138DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC138DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC138DR information

Views：

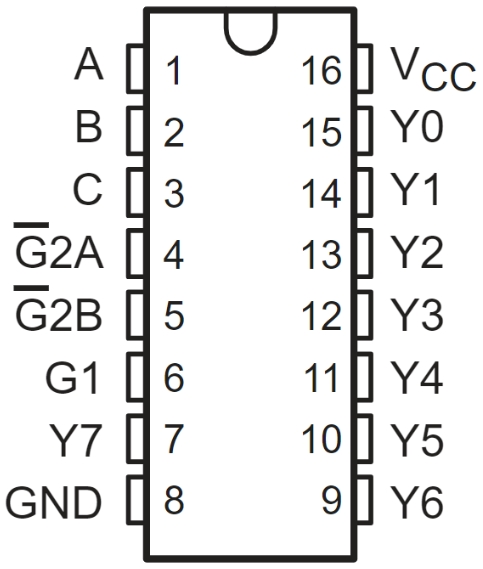

SN74HC138DR Typical application Circuitry

SN74HC138DR

The SN74HC138DR is a high-speed CMOS device known as a 3-to-8 line decoder/demultiplexer. This integrated circuit (IC) is commonly used in applications that require the conversion of a 3-bit binary input to one of eight outputs, making it ideal for a variety of multiplexing and demultiplexing scenarios.

Applications of SN74HC138DR:

1. Memory Address Decoding: The SN74HC138DR is often used in systems with multiple memory blocks to select a specific memory address.

2. Control Line Multiplexing: In microcontroller-based systems, it helps in controlling multiple lines using fewer pins from the microcontroller.

3. Device Selection in Bus Systems: It's used for selecting specific devices connected to a bus in a computer system.

Key Features and Parameters:

- Operating Voltage Range: Typically 2 V to 6 V.

- Quick propagation delays for high-speed performance.

- Low Power Consumption: Fits gadgets that run on batteries.

- Output Current: High current drive capability.

Detailed Circuit Connection (Example: Memory Address Decoding):

1. Input Connections:

- A0, A1, A2 (Pins 1, 2, 3): Connect these pins to the 3-bit address output from the microcontroller or address bus.

2. Enable Pins Configuration:

- G1 (Pin 6), G2A (Pin 4), G2B (Pin 5): Connect these to a logic low (GND) to enable the decoder.

3. Output to Memory Blocks:

- Y0 to Y7 (Pins 15, 14, 13, 12, 11, 10, 9, 7): Each output pin connects to an enable input of a memory block.

4. Power Supply:

- Vcc (Pin 16): Connect to the positive supply voltage.

- GND (Pin 8): Connect to the ground.

Design Considerations:

- Power Supply Stability: Ensure a stable power supply within the operating voltage range.

- Input Signal Integrity: Maintain clean, noise-free input signals.

- Thermal Management: In high-frequency applications, consider heat dissipation.

- Output Load: Be mindful of the current load on each output.

By incorporating these aspects, the SN74HC138DR can be effectively utilized in various electronic applications, maximizing its potential for efficient decoding and multiplexing tasks.
