Name: SN74HC08DRG4
Brand: Texas Instruments
SKU: SN74HC08DRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74HC08DRG4

Part No.:: SN74HC08DRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74HC08DRG4.pdf

Description:: IC GATE AND 4CH 2-INP 14SOIC

In Stock:: 2675

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC08DRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
17ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC08DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC08DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC08DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC08DRG4 information

Views：

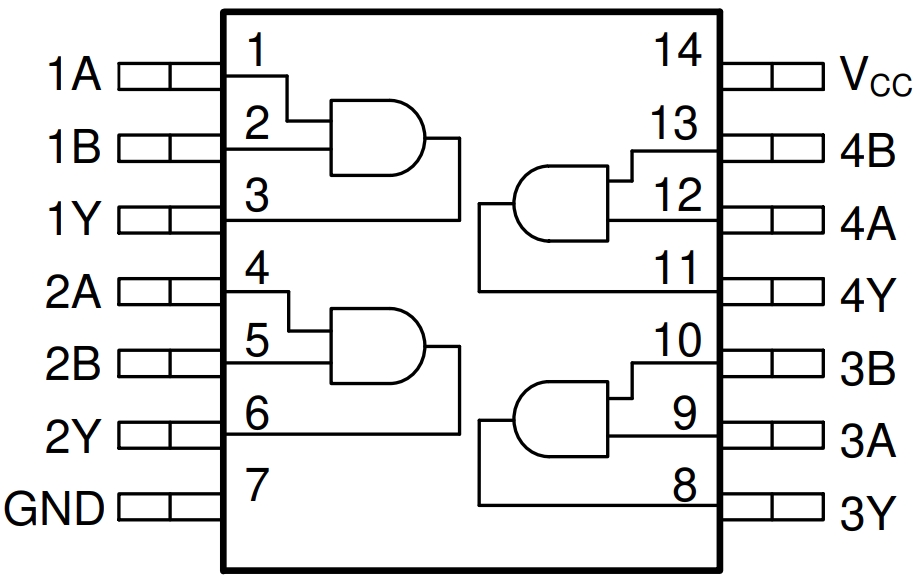

SN74HC08DRG4 Typical application Circuitry

SN74HC08DRG4

SN74HC08DRG4 is a quad 2-input AND gate IC (Integrated Circuit). It is a digital logic chip that performs the logical AND operation on four independent input signals. This means that it will produce a HIGH output only when both of its input signals are HIGH.

Key Parameters and Features:

- Quad 2-Input AND Gates: It contains four separate AND gates within a single chip.

- Supply Voltage: Typically operates at 2V to 6V.

- Low Power Consumption: Designed for low power applications.

- High-Speed Operation: Suitable for high-speed digital circuits.

- Wide Operating Temperature Range: It can function within a wide temperature range.

Application Scenario: Using SN74HC08DRG4 in a Simple Digital Alarm System

Circuit Description:

In this application scenario, we will use the SN74HC08DRG4 to build a simple digital alarm system that activates a buzzer when two specific input conditions are met. We'll assume that two sensors, Sensor A and Sensor B, are monitoring different events, and we want the alarm to sound when both Sensor A and Sensor B are triggered.

Circuit Connections:

1. Connect the VCC (Pin 14) to a +5V power supply.

2. Connect GND (Pin 7) to the ground.

3. Connect the output of Sensor A to Input 1 (Pin 1) of the SN74HC08DRG4.

4. Connect the output of Sensor B to Input 2 (Pin 2) of the SN74HC08DRG4.

5. Connect one terminal of a buzzer to Output 1 (Pin 3) of the SN74HC08DRG4.

6. Connect the other terminal of the buzzer to GND.

Operation:

- When both Sensor A and Sensor B are in their active state (HIGH), the SN74HC08DRG4 will output a HIGH signal at Output 1.

- This HIGH signal will activate the buzzer, sounding the alarm.

- If either Sensor A or Sensor B is not active (LOW), the output of the AND gate will be LOW, and the buzzer will remain silent.

Considerations:

When designing this circuit, it's essential to ensure that both sensors provide a logic-level signal compatible with the SN74HC08DRG4. Additionally, the power supply voltage should be within the specified range (typically +5V). Proper decoupling capacitors may be necessary to filter noise from the power supply. Lastly, ensure that the buzzer used can operate within the voltage and current limits of the IC's output.
