Texas Instruments SN74HC08DR

Part No.:: SN74HC08DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74HC08DR.pdf

Description:: IC GATE AND 4CH 2-INP 14SOIC

In Stock:: 2619

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC08DR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
17ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC08DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC08DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC08DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC08DR information

Views：

SN74HC08DR Typical application Circuitry

SN74HC08DR

The SN74HC08DR is an integrated circuit known for its functionality as a quadruple 2-input positive-AND gate. Because of its dependability and adaptability, this chip is frequently employed in many different electronic applications. Let's examine its functions, uses, and a particular application circuit.

Functionality: Quadruple 2-Input Positive-AND Gate

The SN74HC08DR consists of four independent 2-input AND gates. It performs the Boolean function Y = A.B in positive logic, where Y is the output and A and B are the inputs.

Application Scenarios: Logic Gates, Signal Processing

As a logic gate IC, the SN74HC08DR is commonly used in digital circuits for logical operations, signal processing, and in complex functions such as building blocks for multi-bit adders, multiplexers, and other digital logic circuits.

Parameter Characteristics: High-Speed, Low-Power

Key characteristics include high-speed operation typical of HC-type chips, low power consumption, and wide operating voltage range (typically 2V to 6V). It has high noise immunity and can operate at a significant speed, making it suitable for high-frequency applications.

Application Circuit: Control System Interface

One application of the SN74HC08DR is in a control system interface, where it's used to combine multiple signals.

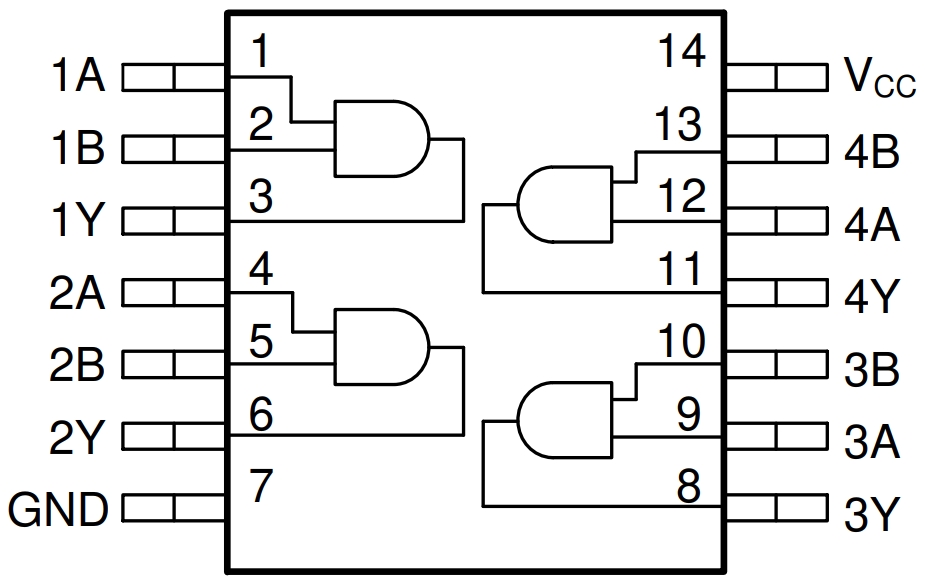

Pin Configuration: Detailed Connection

- Vcc (Pin 14): Connect to power supply (2V to 6V).

- GND (Pin 7): Connect to ground.

- Input Pins (1, 2, 4, 5, 9, 10, 12, 13): Connect to control signals.

- Output Pins (3, 6, 8, 11): Connect to the next stage in the circuit.

Programming Pins: Not Applicable

For the SN74HC08DR, there are no programming pins as it is not a programmable device. It functions solely based on its logic gate configuration.

Design Considerations: Stability, Compatibility

When designing a circuit with SN74HC08DR, consider power supply stability, input and output voltage levels for compatibility with other ICs in the circuit, and ensure the operating temperature is within the specified range to prevent malfunction.

In summary, the SN74HC08DR is a fundamental component in digital electronics, suitable for various applications requiring logical operations. Its technical characteristics, combined with careful circuit design consideration, make it a reliable choice for integrating into complex electronic systems.
