Texas Instruments SN74HC04NSR

Part No.:: SN74HC04NSR

Manufacturer:: Texas Instruments

Package:: 14-SO

Datasheet:: SN74HC04NSR.pdf

Description:: IC INVERTER 6CH 1-INP 14SOP

In Stock:: 2859

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC04NSR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
16ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC04NSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC04NSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC04NSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC04NSR information

Views：

SN74HC04NSR Typical application Circuitry

SN74HC04NSR

Application Scenario: Signal Inversion in a Microcontroller Interface:

1. Purpose: The SN74HC04NSR can be used to invert signal levels when interfacing a microcontroller with peripherals that require inverted signals.

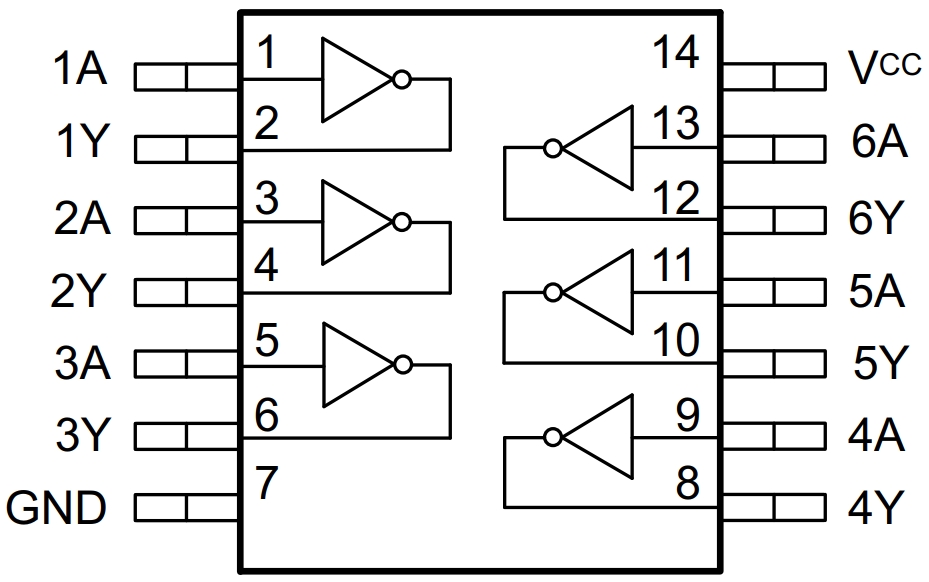

2. Pin Configuration: This IC has 14 pins. Pins 1, 3, 5, 9, 11, and 13 are input pins, while pins 2, 4, 6, 8, 10, and 12 are the corresponding inverted output pins. Pin 7 is for ground (GND), and pin 14 is for the supply voltage (VCC).

3. Interfacing with a Microcontroller: Suppose we are using the SN74HC04NSR with a microcontroller like the Arduino. Connect the Arduino digital output pin to input pin 1 of the SN74HC04NSR. The inverted signal can be taken from pin 2.

4. Programming Pins: During programming, the SN74HC04NSR does not require specific programming pins as it is not a programmable device. It's a logic gate IC that operates based on its input signals.

5. Power Supply Considerations: The SN74HC04NSR operates at a wide range of supply voltages, typically from 2V to 6V. Make sure the VCC (pin 14) is within this range of an appropriate power source.

Parameter Features:

1. Logic Type: Hex inverter.

2. Voltage - Supply: Typically 2V to 6V.

3. Operating Temperature: Usually in the range of -40°C to 85°C.

4. Mounting Type: Surface Mount.

5. Logic Level - Low: 0.5V (Max at VCC = 6V).

6. Logic Level - High: 1.5V (Min at VCC = 6V).

Design Considerations:

1. Voltage Compatibility: Ensure the operating voltage of the SN74HC04NSR is compatible with other components in the circuit.

2. Signal Integrity: Be mindful of signal integrity, especially in high-speed applications. Avoid long traces to minimize signal degradation.

3. Thermal Management: If the circuit is expected to operate in a high-temperature environment, consider thermal management strategies.

4. Noise Immunity: Since inverters can be sensitive to noise, implement proper grounding and filtering techniques to reduce the risk of false triggering.

5. Interfacing with Other Components: Ensure that the input and output levels are compatible with other components in the circuit.

By incorporating the SN74HC04NSR into a microcontroller interface, we can effectively manage signal levels, particularly when inverted logic is required. This chip's versatility and compatibility with various voltage levels make it a reliable choice for numerous applications.
