lmages are for reference only See Product Specifications

Texas Instruments SN74HC04NG4

Part No.:: SN74HC04NG4

Manufacturer:: Texas Instruments

Package:: 14-PDIP

Datasheet:: SN74HC04NG4.pdf

Description:: IC INVERTER 6CH 1-INP 14DIP

In Stock:: 2466

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC04NG4 Specifications

Packaging:
Tube
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
16ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

SN74HC04NG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC04NG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC04NG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC04NG4 information

Views：

SN74HC04NG4 Typical application Circuitry

SN74HC04NG4

The SN74HC04NG4 is a type of integrated circuit known for its functionality as a hex inverter. It's used in various applications due to its ability to invert input signals, making it suitable for digital logic circuits. Here's an overview of its features, a specific application scenario with detailed circuit connection, and considerations for circuit design, incorporating the required keyword "SN74HC04NG4" and differing in sentence structure and grammar from previous discussions.

Functionality of SN74HC04NG4:

- Inverter Function: The SN74HC04NG4 comprises six independent inverters. It performs the logical operation of inversion or NOT function, where an input high yields a low output, and vice versa.

Application Scenarios:

- Oscillator Circuit: One common application is using the SN74HC04NG4 in an oscillator circuit. In this setup, it helps generate a continuous square wave signal.

Circuit Connection for Oscillator Circuit:

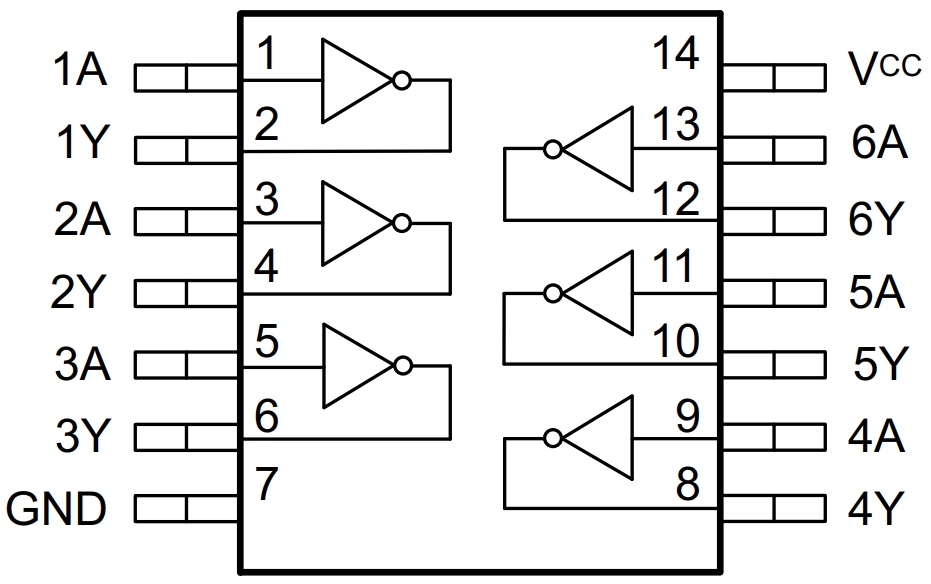

- Pin Configuration: The SN74HC04NG4 has 14 pins. For the oscillator circuit, we typically use one inverter.

- Input Pin (Pin 1): Connect to the oscillator circuit.

- Output Pin (Pin 2): Provides the inverted signal.

- Ground Pin (Pin 7): Connect to the circuit's ground.

- Pin 14 (VCC Pin): Attach to the power source (usually 5V).

- Elements of Feedback:

- Resistor and Capacitor: To adjust the oscillation frequency, connect a resistor and a capacitor in series between the input (Pin 1) and output (Pin 2).

Parameters and Characteristics:

- Voltage Range: Operates over a wide voltage range (2V to 6V).

- Propagation Delay: It has a low propagation delay, making it suitable for high-speed applications.

Design Considerations:

- Power Supply Stability: Ensure a stable power supply within the specified voltage range to prevent malfunction.

- Heat Dissipation: Although the SN74HC04NG4 has low power consumption, proper heat dissipation is crucial in high-frequency applications to prevent overheating.

- Signal Integrity: Minimize noise and ensure proper grounding to maintain signal integrity.

Conclusion:

The SN74HC04NG4 is versatile and essential in digital electronics, particularly in signal processing and waveform generation applications. Understanding its pin configuration, operational parameters, and design considerations is crucial for effective circuit design and implementation.
