Name: SN74HC00NG4
Brand: Texas Instruments
SKU: SN74HC00NG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74HC00NG4

Part No.:: SN74HC00NG4

Manufacturer:: Texas Instruments

Package:: 14-PDIP

Datasheet:: SN74HC00NG4.pdf

Description:: IC GATE NAND 4CH 2-INP 14DIP

In Stock:: 2865

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC00NG4 Specifications

Packaging:
Tube
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

SN74HC00NG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC00NG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC00NG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC00NG4 information

Views：

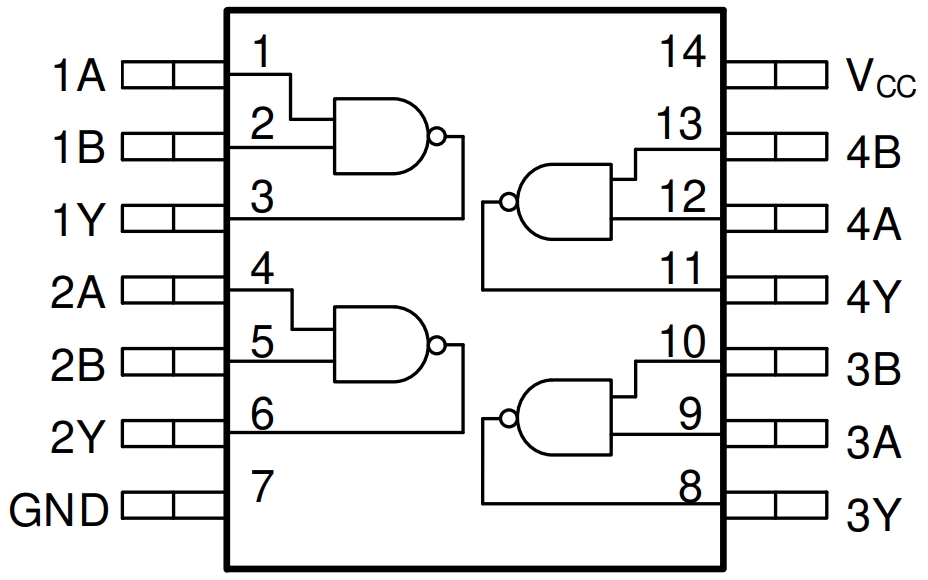

SN74HC00NG4 Typical application Circuitry

SN74HC00NG4

The SN74HC00NG4 is a quad 2-input NAND gate integrated circuit, widely used in digital electronics. Its primary function is to perform the logical NAND operation, where the output is false only when all inputs are true. This IC is part of the 74HC00 family of logic gates, known for their high-speed CMOS technology.

Application Scenarios:

1. Logic Circuit Design: The SN74HC00NG4 is often used in designing complex logic circuits, including digital computation, control systems, and data processing applications.

2. Signal Conditioning: It can be used for shaping and manipulating digital signals in various electronic devices.

3. Pulse Generation: Utilized in creating pulse generators for timing and control applications.

4. Oscillators: Forms part of oscillator circuits for generating clock signals in digital systems.

Key Parameters:

- Voltage Range: Typically operates within a range of 2V to 6V.

- High-Speed Operation: Offers fast response times, suitable for high-speed digital systems.

- Low Power Consumption: It consumes minimal power, making it ideal for battery-operated devices.

Circuit Connection Example:

Consider a scenario where the SN74HC00NG4 is used in a simple logic circuit:

1. Power Supply Connections: Connect VCC (pin 14) to a 5V power supply and GND (pin 7) to the ground.

2. Input Configuration: Connect inputs of the first NAND gate (pins 1 and 2) to the desired digital signals.

3. Output Monitoring: The output of this gate can be observed at pin 3.

4. Programming Pins: For logic programming, typically pins 1, 2, and 3 are crucial. However, for this IC, there's no need for additional programming or "burning" as it's a standard logic gate.

Design Considerations:

- Voltage Levels: Ensure that the supply voltage is within the specified range to prevent damage.

- Input Signals: The input logic levels should be compatible with the IC's operating voltage.

- Decoupling Capacitors: Use decoupling capacitors near the power supply pins to minimize noise.

- Heat Dissipation: Consider heat dissipation if the IC is used in high-frequency or high-current applications.

In summary, the SN74HC00NG4 is a versatile component in digital electronics, with a variety of applications and key parameters that must be considered in circuit design.
