Name: SN74HC00DRE4
Brand: Texas Instruments
SKU: SN74HC00DRE4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74HC00DRE4

Part No.:: SN74HC00DRE4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74HC00DRE4.pdf

Description:: IC GATE NAND 4CH 2-INP 14SOIC

In Stock:: 2689

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC00DRE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74HC
ProductStatus:
Obsolete
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC00DRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC00DRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC00DRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC00DRE4 information

Views：

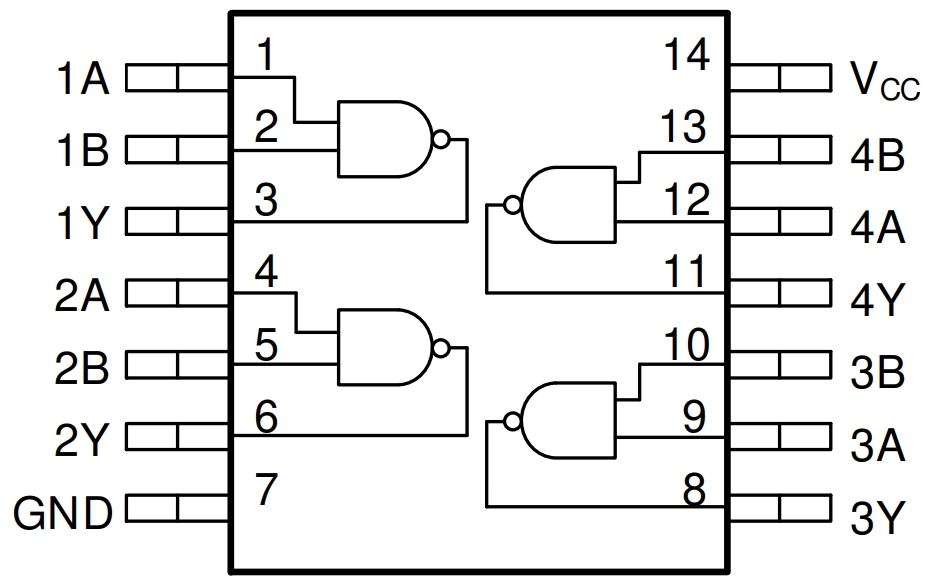

SN74HC00DRE4 Typical application Circuitry

SN74HC00DRE4

The SN74HC00DRE4 is a type of integrated circuit known as a quadruple 2-input positive-NAND gate. This chip is part of the 74HC00 family of logic gates, which are widely used in digital electronics. Let's explore its functionalities, applications, key parameters, and a detailed usage scenario including circuit connections and considerations.

Functionalities and Applications:

1. Basic Functionality: The SN74HC00DRE4 performs the NAND logic function. If both inputs of a gate are high (logic 1), the output is low (logic 0); for all other input combinations, the output is high.

2. Applications: This chip is versatile and can be used in various digital circuits such as

- Logic Circuit Design: Creating complex logic functions by combining multiple NAND gates.

- Control Systems: In automation and control applications.

- Computing: As a fundamental building block in digital computing systems.

Key Parameters:

- Supply Voltage Range: Typically operates between 2 V and 6 V.

- Output Current: Capable of driving a moderate current load.

- Propagation Delay: Fast response time, suitable for high-speed operations.

Detailed Circuit Connection for a Specific Application:

Application Scenario: Let's consider designing a simple digital logic circuit for a control system.

1. Power Supply Connections:

- VCC (Pin 14): Connect to a +5V power supply.

- GND (Pin 7): Connect to the ground.

2. Input Connections:

- Input Pins (1, 2, 4, 5, 9, 10, 12, 13): Connect these pins to your control signals. For example, pins 1 and 2 can be inputs from sensors.

3. Output Connections:

- Output Pins (3, 6, 8, 11): Connect these to the next stage of your circuit. Pin 3 could be connected to an LED or another logic gate.

4. Programming Connections: SN74HC00DRE4 doesn't require programming, as it's a basic logic gate.

Design Considerations:

- Voltage Levels: Ensure input voltage levels are compatible with the chip's operating range.

- Loading: Avoid connecting too many devices to a single output to prevent overloading.

- Noise Immunity: Place decoupling capacitors near the power supply pins to reduce noise.

- Temperature Range: Operate within the specified temperature range for reliability.

In conclusion, the SN74HC00DRE4 is a fundamental component in digital electronics with diverse applications. Its simplicity and efficiency make it ideal for various logic operations in digital circuits. When designing with this chip, careful consideration of electrical parameters and operating conditions is crucial to ensure optimal performance.
