Texas Instruments SN74HC00DR

Part No.:: SN74HC00DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74HC00DR.pdf

Description:: IC GATE NAND 4CH 2-INP 14SOIC

In Stock:: 3323

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC00DR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
NAND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
5.2mA, 5.2mA
LogicLevel-Low:
0.5V ~ 1.8V
LogicLevel-High:
1.5V ~ 4.2V
MaxPropagationDelay@VMaxCL:
15ns @ 6V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC00DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC00DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC00DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC00DR information

Views：

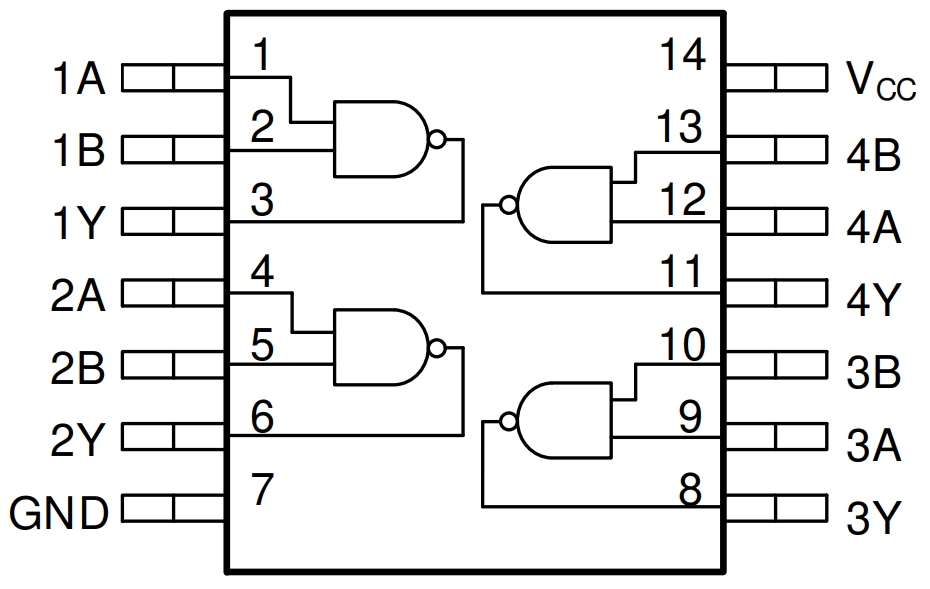

SN74HC00DR Typical application Circuitry

SN74HC00DR

The SN74HC00DR is a quad 2-input NAND gate integrated circuit, part of the 74HC00 family of logic chips. This IC is used in various electronic applications due to its versatility and reliability.

Applications:

The SN74HC00DR can be used in various scenarios such as:

1. Digital Logic Circuits: Employed in creating fundamental logic-based operations.

2. Oscillator Circuits: Utilized in generating clock signals.

3. Signal Processing: For modifying or analyzing digital signals.

4. Computing Systems: Integral in building blocks of CPUs and memory devices.

Key Specifications:

- Voltage Range: Typically operates between 2V to 6V.

- Output Current: Capable of driving 5.2 mA.

- Input Compatibility: Compatible with TTL (Transistor-Transistor Logic).

- Propagation Delay: Approximately 8ns at 5V.

Example Application: Oscillator Circuit

Let's design a simple oscillator circuit using the SN74HC00DR. We will focus on pins 1, 2, and 3, which constitute one of the NAND gates.

1. Pin 1 (Input A): Connect to a resistor (R1) leading to Vcc.

2. Pin 2 (Input B): Connect to the output (Pin 3) via a capacitor (C1).

3. Pin 3 (Output): Connects to Pin 2 and also to the output load.

In this configuration, the SN74HC00DR will generate an oscillating signal. The frequency of the oscillation depends on the values of R1 and C1. This circuit can be used as a clock signal generator in digital circuits.

Design Considerations:

When designing with the SN74HC00DR, consider the following:

- Power Supply: Ensure the voltage is within the specified range to prevent damage.

- Decoupling Capacitors: Place near the power supply pins to stabilize voltage.

- Input Constraints: Avoid leaving inputs floating to prevent unpredictable behavior.

- Temperature and Environmental Factors: Consider the operating temperature range and environmental conditions.

In summary, the SN74HC00DR is a versatile and essential component in digital electronics, suitable for a wide range of applications from basic logic gates to complex digital systems. Proper understanding of its specifications and correct implementation in circuit design is crucial for optimal performance.
