What is the Additional Feature ?

Name: SN74AVC4T245PWRG4
Brand: Texas Instruments
SKU: SN74AVC4T245PWRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74AVC4T245PWRG4

Part No.:: SN74AVC4T245PWRG4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74AVC4T245PWRG4.pdf

Description:: IC TRANSLATION TXRX 3.6V 16TSSOP

In Stock:: 3828

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AVC4T245PWRG4 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
74AVC
ProductStatus:
Discontinued at Mosen
LogicType:
Translation Transceiver
NumberofElements:
2
NumberofBitsperElement:
2
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
12mA, 12mA
Voltage-Supply:
1.2V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74AVC4T245PWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AVC4T245PWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AVC4T245PWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AVC4T245PWRG4 information

Views：

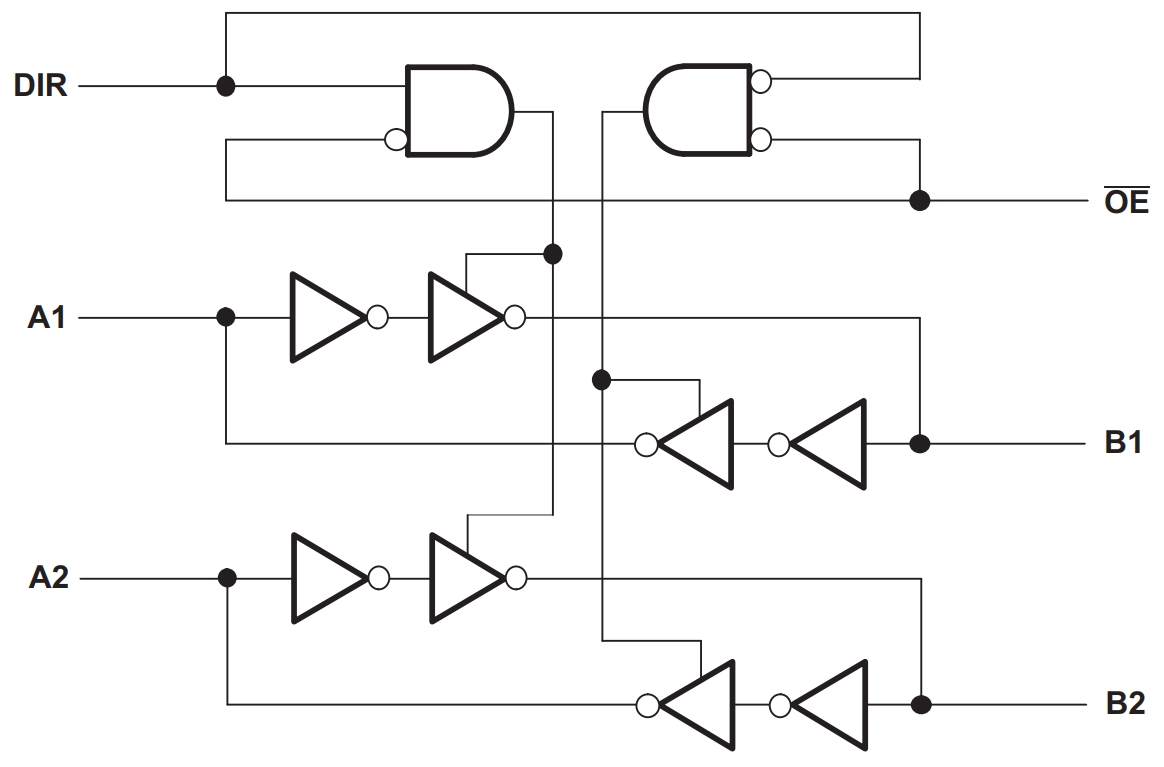

SN74AVC4T245PWRG4 Typical application Circuitry

SN74AVC4T245PWRG4

An integrated circuit (IC) for dual-bit, dual-supply bus transceivers with 3-state outputs and programmable voltage translation is called the SN74AVC4T245PWRG4. It's part of the Texas Instruments (TI) SN74AVC family, designed for applications where two different voltage domains communicate with each other. This chip facilitates data transfer between a core circuit operating at one voltage level and any peripherals operating at a different voltage level.

Key Applications:

1. Level Shifting: Used in systems where interfacing between different logic levels is needed, such as connecting 3.3V and 5V components.

2. Bidirectional Data Paths: Ideal for bidirectional communication in mixed-voltage systems, such as between a microcontroller and an SD card.

3. Signal Buffering: Acts as a buffer to protect devices from high currents, especially in mixed-voltage environments.

Parameter Features:

- Voltage Range: Operates over a wide range of supply voltages (1.2V to 3.6V on the A side and 1.65V to 5.5V on the B side).

- Bidirectional Data Flow: Supports bidirectional data flow with individual direction control for each bit.

- Low Power Consumption: Its low power consumption is essential for battery-operated devices. It is built for low power operation.

Implementation of Circuits (Sample Situation):

- Situation: Linking a 5V sensor to a 3.3V microcontroller.

- Circuit Setup:

1. Power Supplies: Connect VCCA to 3.3V (microcontroller side) and VCCB to 5V (sensor side).

2. Data Lines: Connect the data output of the microcontroller to the A1 and A2 pins of the SN74AVC4T245PWRG4. Connect the B1 and B2 pins to the data input of the sensor.

3. Direction Control: The direction pin (DIR) determines the data flow direction. For reading data from the sensor, set DIR high; for writing, set it low.

4. Output Enable (OE): The OE pin is used to enable or disable the outputs. Connect OE to a GPIO pin on the microcontroller for control.

5. Grounding: Ensure both the microcontroller and sensor share a common ground with the SN74AVC4T245PWRG4.

Design considerations include:

- Voltage compatibility: make sure the voltage levels are within the SN74AVC4T245PWRG4's operational range.

- Power Sequencing: Proper power-up and power-down sequences should be maintained to avoid damaging the IC.

- Thermal Management: Consider the thermal aspect of the circuit, especially if the transceiver is expected to handle high data rates or is operating in a high-temperature environment.

In summary, the SN74AVC4T245PWRG4 is a versatile component used in mixed-voltage digital systems, offering a convenient solution for bidirectional communication and level translation between different voltage domains. Its selection and implementation in a circuit require careful consideration of voltage levels, power sequencing, and thermal management.
