Texas Instruments SN74AVC4T245PWRE4

Part No.:: SN74AVC4T245PWRE4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74AVC4T245PWRE4.pdf

Description:: IC TRANSLATION TXRX 3.6V 16TSSOP

In Stock:: 2982

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AVC4T245PWRE4 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74AVC
ProductStatus:
Discontinued at Mosen
LogicType:
Translation Transceiver
NumberofElements:
2
NumberofBitsperElement:
2
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
12mA, 12mA
Voltage-Supply:
1.2V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74AVC4T245PWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AVC4T245PWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AVC4T245PWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AVC4T245PWRE4 information

Views：

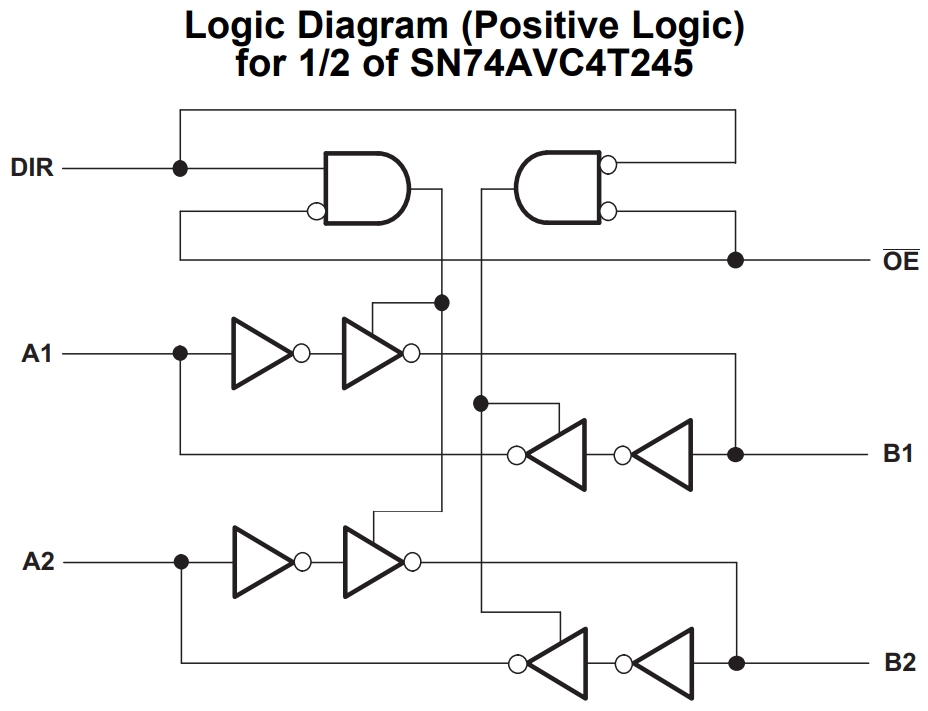

SN74AVC4T245PWRE4 Typical application Circuitry

SN74AVC4T245PWRE4

SN74AVC4T245PWRE4 is a specific type of integrated circuit, known as a quadruple bus transceiver with 3-state outputs. This chip is used in electronic systems for bidirectional voltage-level translation and data transmission. Below is a detailed analysis of its functions, applications, and an illustration of a specific circuit connection.

1. Functionality and Applications: The SN74AVC4T245PWRE4 serves primarily for bidirectional signal translation between different voltage domains. This makes it ideal for applications such as interfacing microcontrollers with peripherals operating at different voltage levels, in mixed-voltage systems, and for data bus driving.

2. Key Parameters and Features: The chip is characterized by its wide operating voltage range, typically from 1.2V to 3.6V, allowing for flexible interfacing in varied voltage environments. It also features high-speed data transfer capabilities, low power consumption, and 3-state outputs which provide high impedance when not in use, reducing power draw and preventing bus contention.

3. Circuit Connection Example: Consider a scenario where the SN74AVC4T245PWRE4 is used to interface a 3.3V microcontroller with a 1.8V sensor. In this setup

- Power Supply Connections: Connect VCCA to the 3.3V supply and VCCB to the 1.8V supply.

- Data Lines: Connect the microcontroller's data output to one of the A-side pins of the chip (e.g., A1) and the corresponding B-side pin (e.g., B1) to the sensor's data input.

- Output Enable (OE): Connect the OE pin to a GPIO pin of the microcontroller. To enable data flow, set this pin to low.

- Direction Control (DIR): Connect the DIR pin to another GPIO of the microcontroller. Setting this pin high or low controls the direction of data flow.

4. Design Considerations: When designing circuits with the SN74AVC4T245PWRE4, it's crucial to consider the voltage compatibility of connected devices, the timing requirements for data transmission, and the layout of the PCB to minimize noise and signal interference. To guarantee steady functioning, the power supply pins should be close to the proper decoupling capacitors.

All things considered, the SN74AVC4T245PWRE4 is a flexible and effective part for bidirectional data transfer between devices running at various voltage levels. Its application in interfacing microcontrollers with various sensors or peripherals is a testament to its utility in modern electronic design.
